1998.5-2018 Dodge Cummins Smarty Touch Screen Tuner - SMARTY S2G

.pe-wrap {
color: #000;
font-family: "Segoe UI", "Helvetica Neue", Arial, sans-serif;
font-size: 16px;
line-height: 1.5;
}

.pe-wrap * {
box-sizing: border-box;
}

.pe-section {
margin-bottom: 22px;
}

.pe-heading {
font-family: Inter, "Segoe UI", "Helvetica Neue", Arial, sans-serif;
font-size: 18px;
font-weight: 700;
margin: 0 0 10px 0;
}

.pe-list {
margin: 0;
padding-left: 18px;
}

.pe-list li {
margin: 6px 0;
}





Display and Hardware

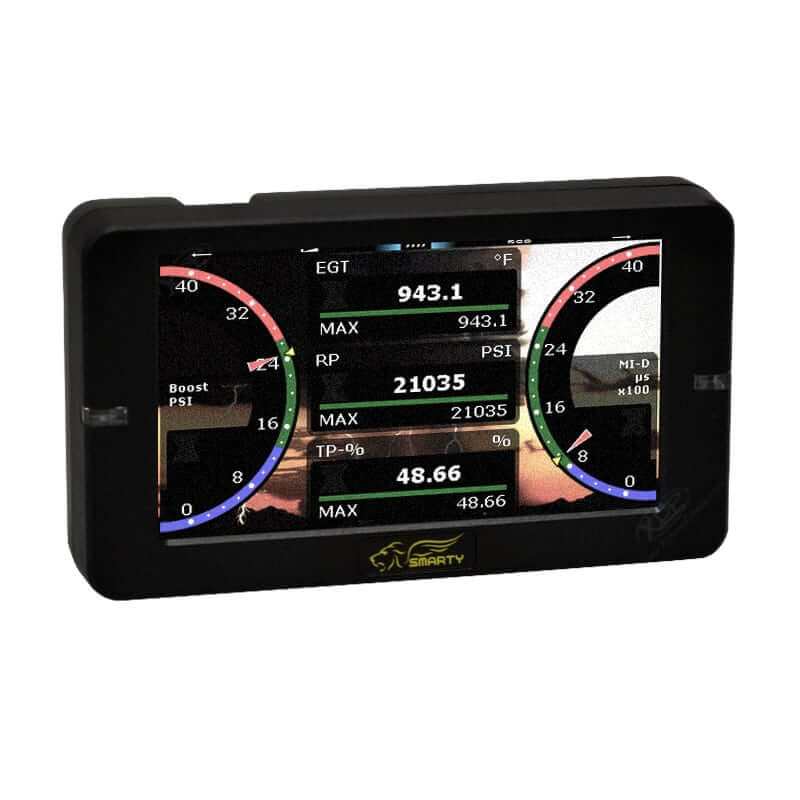

4.3" touch display with a resolution of 480 × 272 and 16.3 million colors.

Two-device system : Smarty Touch Display and Smarty Touch Controller, each with its own CPU. The display manages graphics and user interface, while the controller handles ECM communication.

Twin CPU design for maximum performance.

Fastest display startup in the industry at just four seconds.

Fastest PID refresh speed in the industry.

Fastest ECM download speed in the industry, up to three times faster than the competition. Typical ECM updates take 1.5 to 6 minutes depending on model year.

Micro USB cable connects the display and controller for easy installation.

MicroSD card included for fast and simple updates.

Fully internet updateable with free updates.

MicroSD card support for storing multiple UDC custom tunes.

Compatible with any MicroSD card formatted with a FAT file system .






Sensors, Modules, and Software


EGT sensor (optional) reads accurately up to over 2200°F.

Communication module (optional) enables real time tuning parameters and unlocks MY 2013+ ECMs.

UDC Pro RT software (optional) provides custom tune control with real time parameters.

Communication module required for real time parameter programming.






Dashboards, Gauges, and Alerts


Four dashboards, each configurable with five different gauge layouts.

Freely configurable gauge ranges.

Two alarms per PID, including high and low thresholds.

Audible and or visible alarm alerts.

Configured ranges displayed using colored bars in digital gauges.

Configurable PID refresh speed.

Each gauge continuously records and displays maximum PID values, which can be reset at any time.

Customizable display background.

Adjustable sound feedback for alarms.






Vehicle Coverage and Tuning Features


Supports over 300 SAE and proprietary PIDs.

Compatible with all Dodge Cummins Ram pickups from 1998.5 to present.

Includes CaTCHER software with ten selectable power levels.

Selectable performance parameters for fine tuning.

Works with UDC and UDC Pro RT custom tuning software. Firmware version 1.1.2 or newer required.

Stores multiple UDC and UDC Pro RT custom software files on a MicroSD card. Storage is limited only by card capacity.

ABS tire height updates completed in seconds.

Cold weather 3 cylinder high idle supported on 1998.5 to 2002 VP 5.9L trucks.

Not traceable in stock settings on all 5.9L trucks.

Manual high idle enabled in all CR 5.9L software except MY 2003.

Reads diagnostic trouble codes in plain text.

Clears DTCs.

Operates using OEM hardware for reliability.

Programmable speed limiter from 25 to 250 mph.

Power level switch with five selectable levels.

Power on Demand supported on CR 5.9L and 2007 to 2009 6.7L trucks.

Real time tuning while the engine is running on CR 6.7L 2010+ trucks with the communication module.

Communication module required to tune ECMs on CR 6.7L 2013+ trucks.
