08-10 Cadillac CTS (AWD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC4477G-1

Transfer Case
RTC4477G-1
,and,and,08,08,09,09,24243883,24245473,24249544,24250934,412-10076,43,43SPL,AWD,AWD,CADILLAC,CADILLAC,CASE,CASE,CTS,CTS,CUP,CUP,F,F,FULL,FULL,INP,INP,LENGTH,LENGTH,R,R,RTC,RTC,SPL,SPLINES,SPLINES,T,T,TC4477G-1,TRANSFERCASES-R,UMT103-5,

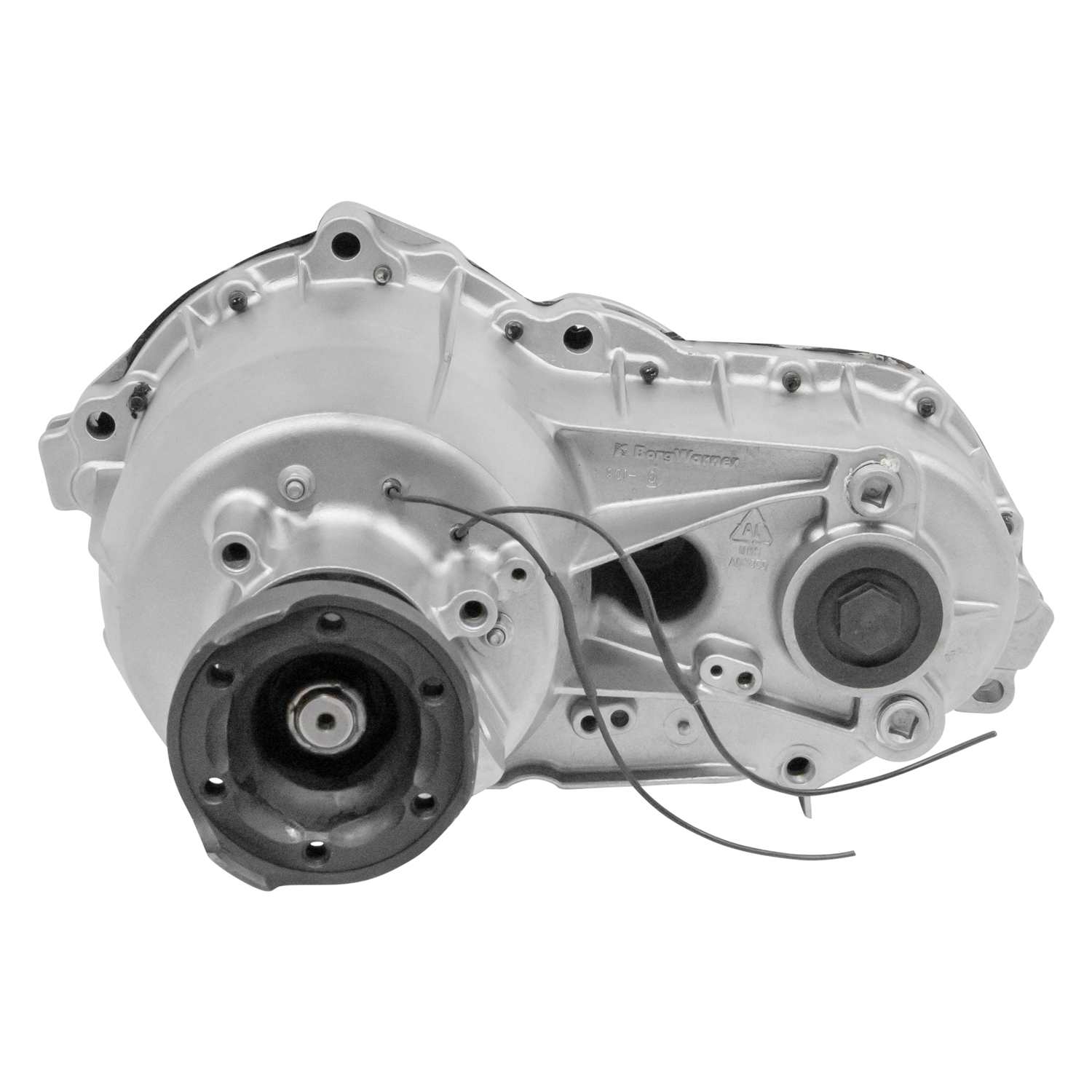

BW4477 Transfer Case for 2008-09 Cadillac CTS
T-CASE '08-'09 CADILLAC CTS 43 SPL INP, CUP F and R, FULL LENGTH SPLINES, AWD
BW4477 Transfer Case 2008-09 Cadillac CTS, 43 Spline Input, Cup Front And Rear Yokes, Full Length Splines In The Input, AWD
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Transfer Case Fluid Capacity: 1.06
Transfer Case Fluid Included: No
Transfer Case Fluid Type: GM TCF 88861950

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2008 Cadillac CTS AWD BW4477; AWD, 43 Spline Input, Cup Style Front And Rear Output Yokes, First Design Input Shaft With Splines On The Full Length Of The Inside Of The Shaft, You MUST verify the input has not been updated to the 2nd design that the splines are machined out of the first 3 / 4" of the end of the input. Tag Numbers: 24243883, 24245473, 24249544, Hollander Number: 412-10076, Other Numbers: UMT103-5 2009 Cadillac CTS AWD BW4477; AWD, 43 Spline Input, Cup Style Front And Rear Output Yokes, First Design Input Shaft With Splines On The Full Length Of The Inside Of The Shaft, You MUST verify the input has not been updated to the 2nd design that the splines are machined out of the first 3 / 4" of the end of the input. Tag Numbers: 24243883, 24245473, 24249544, Hollander Number: 412-10076, Other Numbers: UMT103-5 2010 Cadillac CTS AWD BW4477; AWD, 43 Spline Input, Cup Style Front And Rear Output Yokes, First Design Input Shaft With Splines On The Full Length Of The Inside Of The Shaft, You MUST verify the input has not been updated to the 2nd design that the splines are machined out of the first 3 / 4" of the end of the input. Tag Numbers: 24243883, 24245473, 24249544, Hollander Number: 412-10076, Other Numbers: UMT103-5
