Ford (4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC4411F-1

Transfer Case
RTC4411F-1
BW4411; Selectable AWD That Has A Switch On The Dash, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5
,and,02,04,1L24-BD,1L24-BE,1L24-BF,1L24-BH,1L24-BJ,1L24-BK,412-00566,412-566,58-T01,BW4411,CASE,CIRC.,CUP,E,EXPLOR,F,FORD,MERCURY,MOUNTA,R,RTC,SHFT,SPEDO,SPORT,T,TC4411F-1,TRANSFERCASE,UMT429-5,W/O,

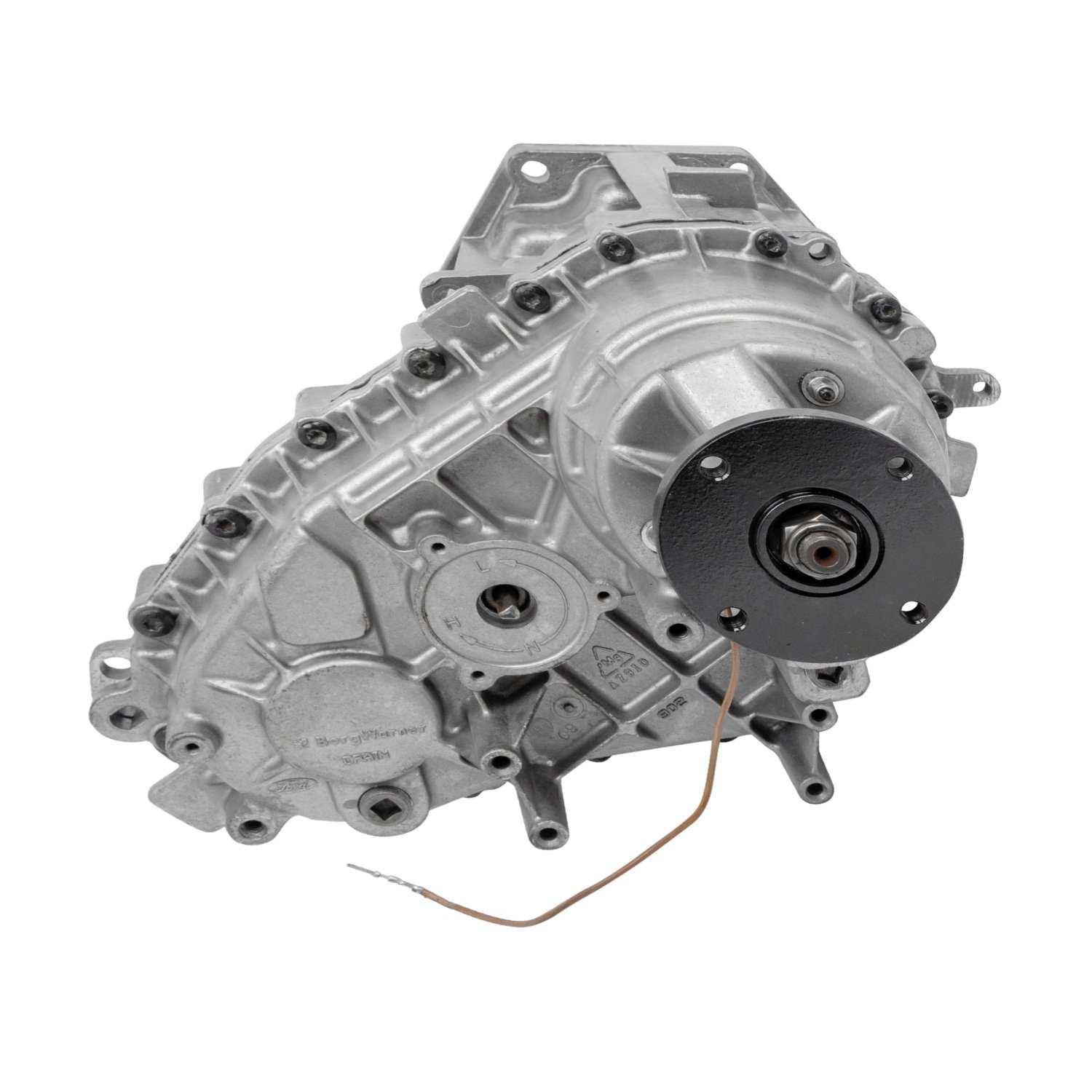

Remanufactured BW4411 Transfer Case, 2002-04 Ford Explorer, Electric Shift
Remanufactured BW4411 Transfer Case, 2002-04 Ford Explorer, 2003 Explorer Sport, 2003-04 Explorer Sport Trac, Electric Shift, Two Speed
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
Remanufactured Transfer Case BW4411
Shift Motor Not Included
Fits Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
Remanufactured Transfer Case BW4411
Shift Motor Not Included
Fits Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Height: 18
Housing Color: Aluminum
Housing Material: Aluminum
Length: 33
Mounting Bracket Included: No
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 1.5
Transfer Case Fluid Type: Mercon ATF
Transfer Case Motor Included: No
Weight: 76
Width: 24

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2002 Ford Explorer 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5 2003 Ford Explorer Sport 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5 2003 Ford Explorer Sport Trac 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5 2003 Ford Explorer 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5 2004 Ford Explorer Sport Trac 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5 2004 Ford Explorer 4WD BW4411; Selectable AWD That Has A Switch On The Dash, Shift motor is not included, Two Speed, Viscous Drive, Cup Style Front Output Yoke, Circular Rear Output Yoke, No Speedo Hole, Tag Numbers: 1L24-BD, 1L24-BE, 1L24-BF, 1L24-BH, 1L24-BJ, 1L24-BK, Hollander Number: 412-00566, Other Numbers: UMT429-5
