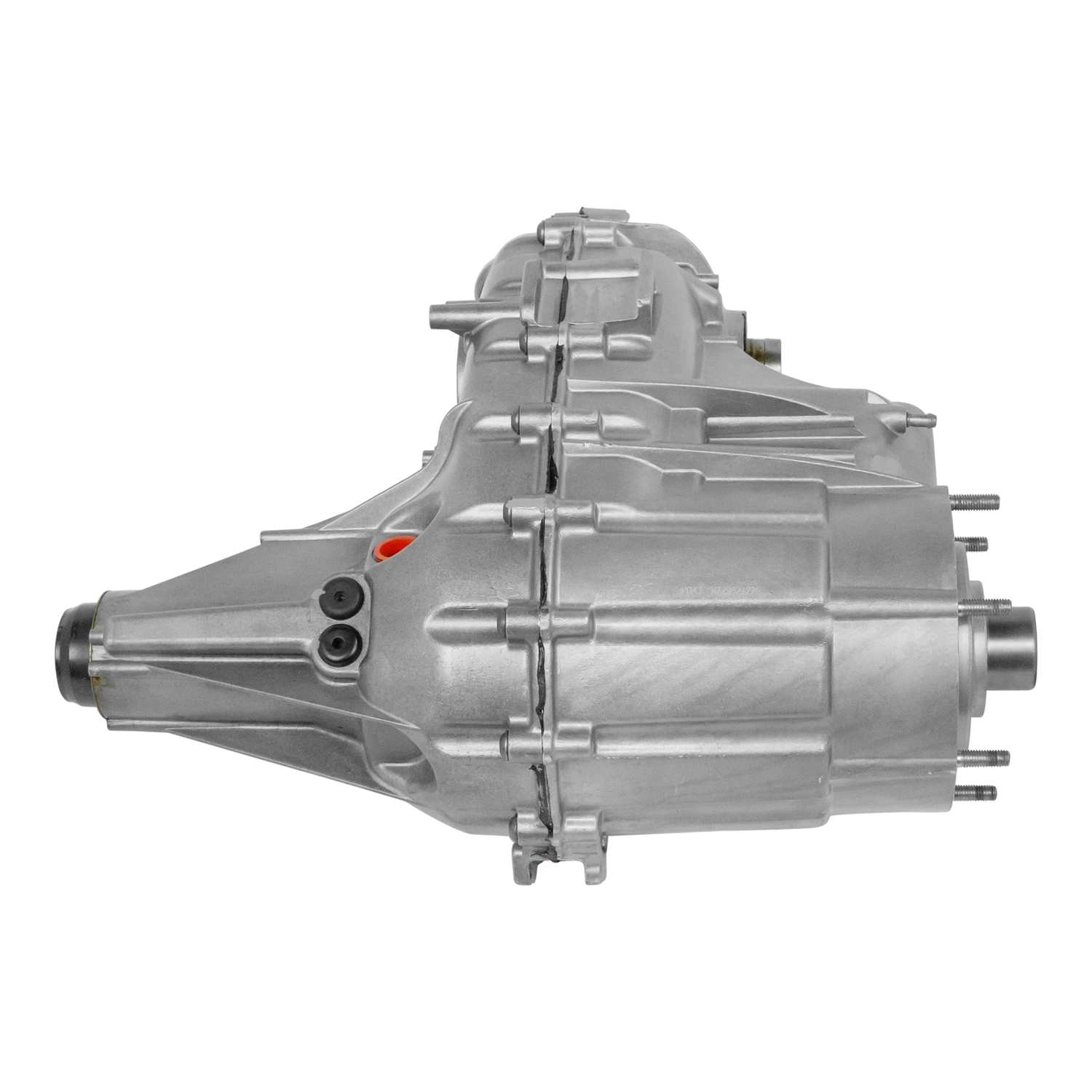

Cadillac, Chevrolet, GMC (5.3, 6.0 - 4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC3023G-2

Transfer Case
RTC3023G-2
MP3023; Electric Shift, Shift motor is not included, 32 spline Input, 32 Spline Rear Output, Internal Spline Front Output, Autotrack Option NQH, Tag Numbers: 19125652, 19125653, 23143114, 23164314, 23188338, 23196408, 23201781, 23311900, 24237462, 24239189, 24243564, 24247210, 24250805, 24250861, 24250864, 24252679, 24252683, 24256217, 24256219, 24256472, 24256474, 24259475, 24261514, 24261516, 24262510, 26164319, 84109394, 84467435, 84605819, Hollander Number: 412-725, 412-807, 412-10002, Other Numbers: UMT141-7
,08,08,13,1500,1500,17,19125652,23188340,24237462,24239189,24243564,24247210,24250805,24250861,24250864,24252679,24252683,24256217,24256219,24256472,24256474,24259475,24261514,24261516,32SPL,32SPL,32SPL,412-00694,412-00718,412-00725,412-694,412-718,4
MP3023 Transfer Case for GM 08-19 1500
MP3023 T-CASE '08-'19 GM 1500 PICKUP E-SHFT, AUTOTRACK, 32SPL INP, 32SPL OUTPUT
Cases and internal components are inspected and tested for cracks, stripped threads, shaft warp, gear wear, and chain stretch. Each unit is fully rebuilt with new bearings, seals, and viscous couplers then dyno tested.
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
Fits 2008-2019 GM 1500 Series Trucks and SUVs
4 and 6 Speed Automatics
32 spline input
32 spline rear output
Shift motor is not included
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
Zumbrota Remanufactured MP3023 Transfer Case for 2008-19 GM 1500 Series
Fits 2008-2019 GM 1500 Series Trucks and SUVs
4 & 6 Speed Automatics
32 spline input
32 spline rear output
Shift motor is not included
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Rear Output Type: Slip Yoke
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 1.6
Transfer Case Fluid Included: No
Transfer Case Fluid Type: Dexron VI ATF
Transfer Case Manufacturer Code: NQH
Transfer Case Motor Included: No
Weight: 102
Width: 24

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 2008 GMC Yukon Hybrid 4WD MP3023; Electric Shift, Shift motor is not included, 32 spline Input, 32 Spline Rear Output, Internal Spline Front Output, Autotrack Option NQH, Tag Numbers: 19125652, 19125653, 19125974, 23143111, 23143114, 23164314, 23164319, 23188338, 23188340, 23196408, 23201781, 23311900, 23311901, 23357726, 24237462, 24239189, 24243564, 24247210, 24250805, 24250861, 24250864, 24252679, 24252683, 24256217, 24256219, 24256472, 24256474, 24259475, 24261514, 24261516, 24262510, 84109394, 84109395, 84153002, 84153003, 84260082, 84260083, 84346718, 84377715, 84377716, 84467435, 84467437, 84605819, 84605821, 87828929, 87828930, 87842228, 87842230, Hollander Number: 412-725, 412-807, 412-10002, 412-10013, 412-10163, Other Numbers: UMT141-7 2009 Cadillac Escalade 4WD MP3023; Electric Shift, Shift motor is not included, 32 spline Input, 32 Spline Rear Output, Internal Spline Front Output, Autotrack Option NQH, Tag Numbers: 19125652, 19125653, 19125974, 23143111, 23143114, 23164314, 23164319, 23188338, 23188340, 23196408, 23201781, 23311900, 23311901, 23357726, 24237462, 24239189, 24243564, 24247210, 24250805, 24250861, 24250864, 24252679, 24252683, 24256217, 24256219, 24256472, 24256474, 24259475, 24261514, 24261516, 24262510, 84109394, 84109395, 84153002, 84153003, 84260082, 84260083, 84346718, 84377715, 84377716, 84467435, 84467437, 84605819, 84605821, 87828929, 87828930, 87842228, 87842230, Hollander Number: 412-725, 412-807, 412-10002, 412-10013, 412-10163, Other Numbers: UMT141-7 2009 Chevrolet Avalanche 4WD MP3023; Electric Shift, Shift motor is not included, 32 spline Input, 32 Spline Rear Output, Internal Spline Front Output, Autotrack Option NQH, Tag Numbers: 19125652, 19125653, 19125974, 23143111, 23143114, 23164314, 23164319, 23188338, 23188340, 23196408, 23201781, 23311900, 23311901, 23357726, 24237462, 24239189, 24243564, 24247210, 24250805, 24250861, 24250864, 24252679, 24252683, 24256217, 24256219, 24256472, 24256474, 24259475, 24261514, 24261516, 24262510, 84109394, 84109395, 84153002, 84153003, 84260082, 84260083, 84346718, 84377715, 84377716, 84467435, 84467437, 84605819, 84605821, 87828929, 87828930, 87842228, 87842230, Hollander Number: 412-725, 412-807, 412-10002, 412-10013, 412-10163, Other Numbers: UMT141-7 2009 Chevrolet Silverado 1500 4WD MP3023; Electric Shift, Shift motor is not included, 32 spline Input, 32 Spline Rear Output, Internal Spline Front Output, Autotrack Option NQH, Tag Numbers: 19125652, 19125653, 19125974, 23143111, 23143114, 23164314, 23164319, 23188338, 23188340, 23196408, 23201781, 23311900, 23311901, 23357726, 24237462, 24239189, 24243564, 24247210, 24250805, 24250861, 24250864, 24252679, 24252683, 24256217, 24256219, 24256472, 24256474, 24259475, 24261514, 24261516, 24262510, 84109394, 84109395, 84153002, 84153003, 84260082, 84260083, 84346718, 84377715, 84377716, 84467435, 84467437…
