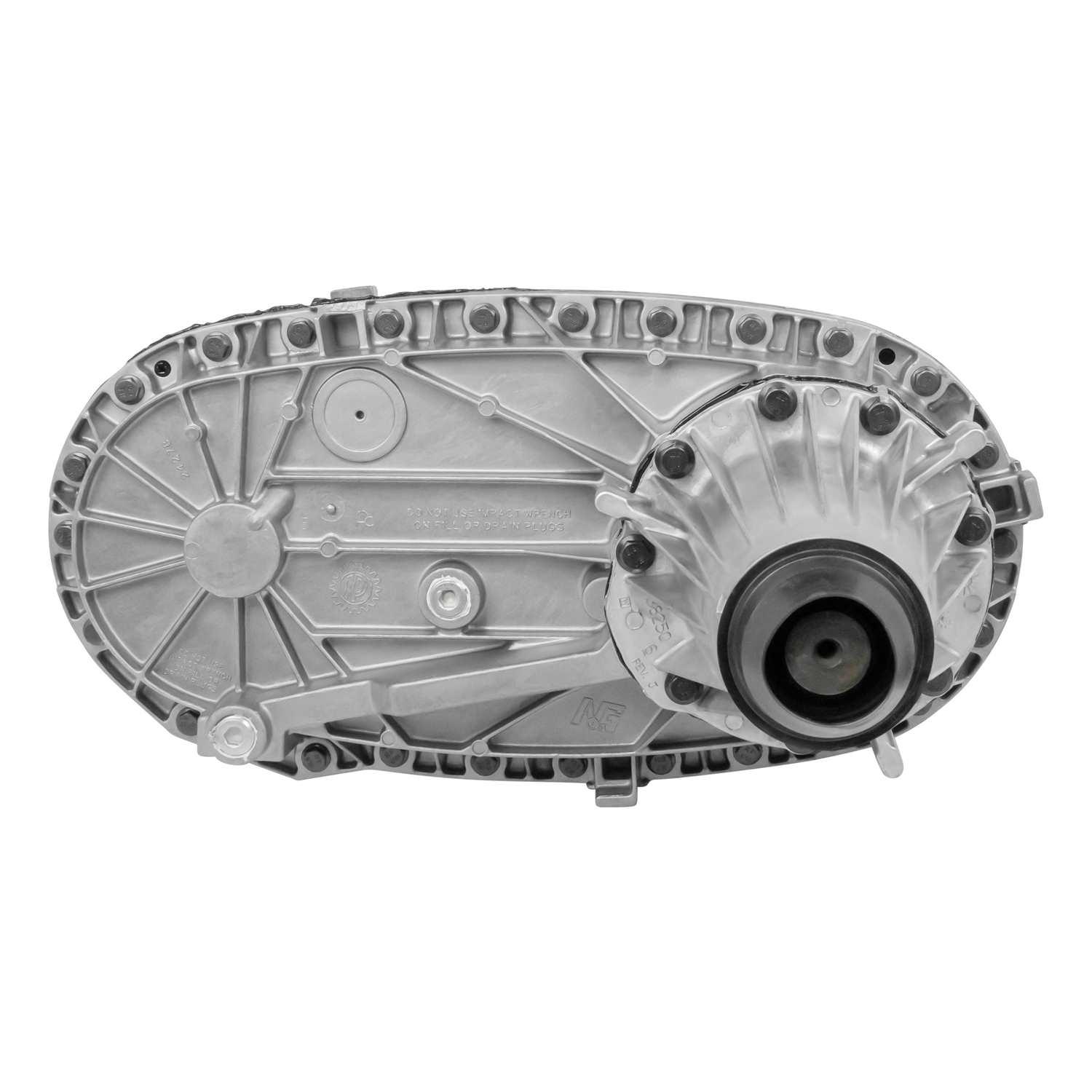

Dodge, Ram (Cab & Chassis - 5.7, 5.9 - 4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC273D-3M

Transfer Case
RTC273D-3M
NV273; Electric Shift, Shift motor is included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17
,.84,.84,06,06,12,12,1500/2500/3500,23SP,23SP,273,34SP,34SP,CASE,CASE,CHY,CHY,EX,EX,INP,INP,NP,NP273,NP273,R,R,RAM,RAM,RTC,RTC,S/Y,S/Y,SHAFT,SHAFT,SHFT,SHFT,SPEEDO,SPL,SPL,T,T,TC273D-3M,TRANSFERCASES-R,W/O,W/O,
Transfer Case for 2006-2011 Dodge Ram 1500, 2500 and 3500 with 23 Spline Input
NP273 T-CASE '06-'11 CHY RAM 1500/2500/3500 .84" EX 23SP INP, 34SP R S/Y, W/O SPEEDO, SPL SHFT SHAFT
NP273 Transfer Case 2006-11 Chrysler RAM 1500/2500/3500 0.84" Exposed 23 Spline Input, 34 Spline Rear Slip Yoke , Without Speedo Hole, Spline Shift Shaft, Shift Motor Included.
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
34 Spline Rear Slip Yoke
0.84" Exposed 23 Spline Input
For 2006-2011 Dodge Ram 3500
For 2006-2011 Dodge Ram 2500
Spline Shift Shaft
Without Speedometer
For 2006-2008 Dodge Ram 1500
NP273 Transfer Case
Transfer Case for 2006-2011 Dodge Ram 1500, 2500 and 3500 with 23 Spline Input
34 Spline Rear Slip Yoke
0.84" Exposed 23 Spline Input
For 2006-2011 Dodge Ram 3500
For 2006-2011 Dodge Ram 2500
Spline Shift Shaft
Without Speedometer
For 2006-2008 Dodge Ram 1500
NP273 Transfer Case
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Housing Color: Aluminum
Housing Material: Aluminum
Rear Output Type: Slip Yoke
Selector Switch Positions: 3 positions
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4
Transfer Case Motor Included: Yes

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 2006 Dodge Ram 1500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2006 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2006 Dodge Ram 3500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2007 Dodge Ram 1500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2007 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2007 Dodge Ram 3500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2008 Dodge Ram 1500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2008 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2008 Dodge Ram 3500 Cab & Chassis 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Other Numbers: UMT313-17 2009 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift Motor is Included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52123023AA, 52123024AB, Hollander Numbers: 412-617, 412-624, Ot…
