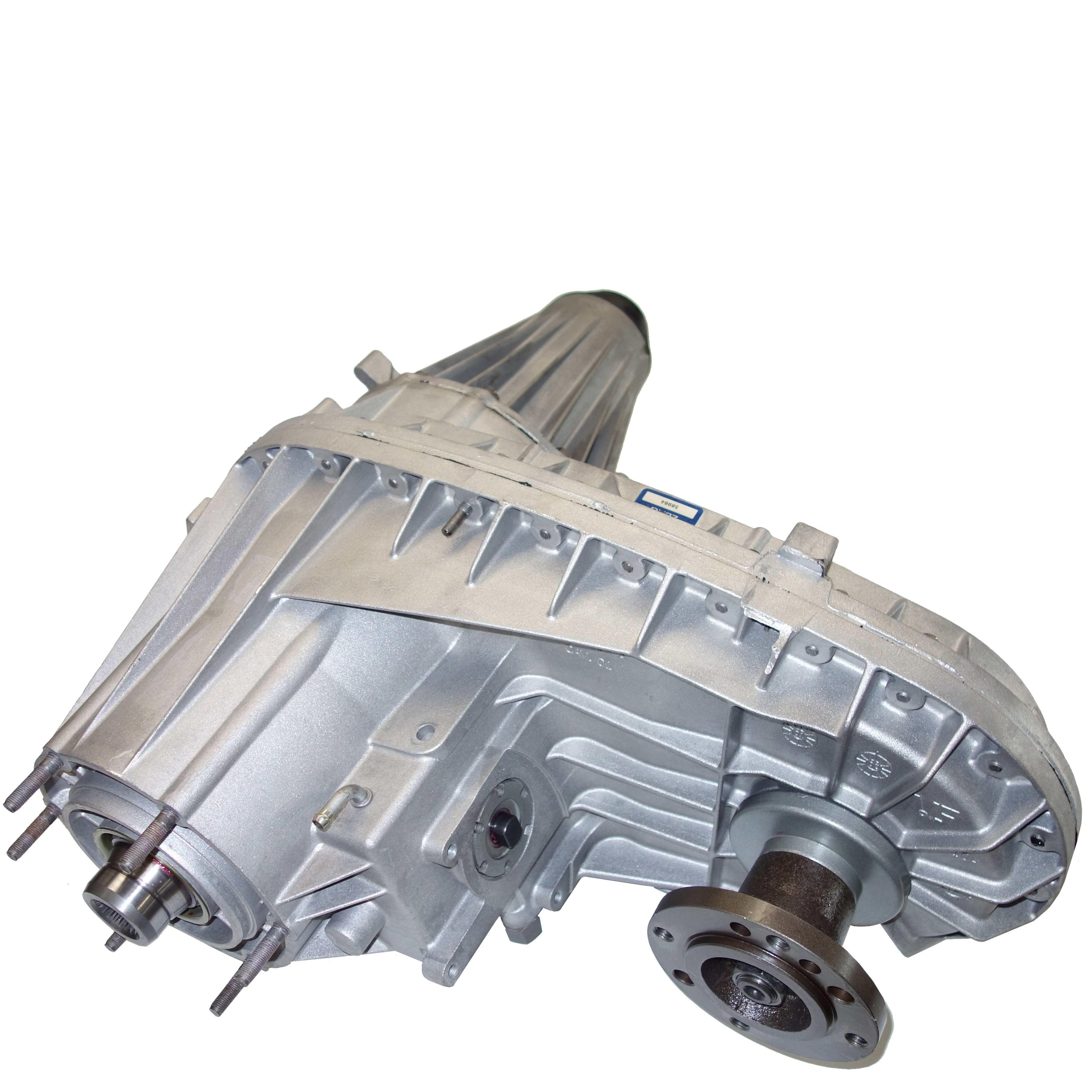

Dodge (4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC273D-1

Transfer Case
RTC273D-1
NV273; Electric Shift, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12
,.84,03,05,23SPL,25/3500,273,34SPL,35-T02,412-00499,412-499,52105650AB,52105650AC,52105650AD,52105650AE,52105650AF,CASE,CHY,EXP.,INP,NP,NP273,NP273-DA,R,RAM,RTC,S/Y,SPEEDO,T,TC273D-1,TRANSFERCASES-R,UMT313-12,W/O,
NP273 Transfer Case for Chrysler 03-05 Ram 2500/3500
NP273 T-CASE '03-'05 CHY RAM 25/3500 .84" EXP. 23SPL INP, 34SPL R S/Y, W/O SPEEDO
NP273 T-CASE 03-05 Chrysler RAM 25/3500 .84" EXP. 23Spline INP , 34Spline R S/Y , W/O SPEEDO .
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Housing Color: Aluminum
Housing Material: Aluminum
Rear Output Type: Slip Yoke
Selector Switch Positions: 3 positions
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4
Transfer Case Motor Included: No

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2003 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12 2003 Dodge Ram 3500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12 2004 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12 2004 Dodge Ram 3500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12 2005 Dodge Ram 2500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12 2005 Dodge Ram 3500 4WD NV273; Electric Shift - Option Code DH3, Shift motor is not included, Shift Shaft Is Round With Two Flats Spots, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output, No Speedo Hole, Tag Numbers: 52105650AB, 52105650AC, 52105650AD, 52105650AE, 52105650AF, Hollander Number: 412-499, Other Numbers: UMT313-12
