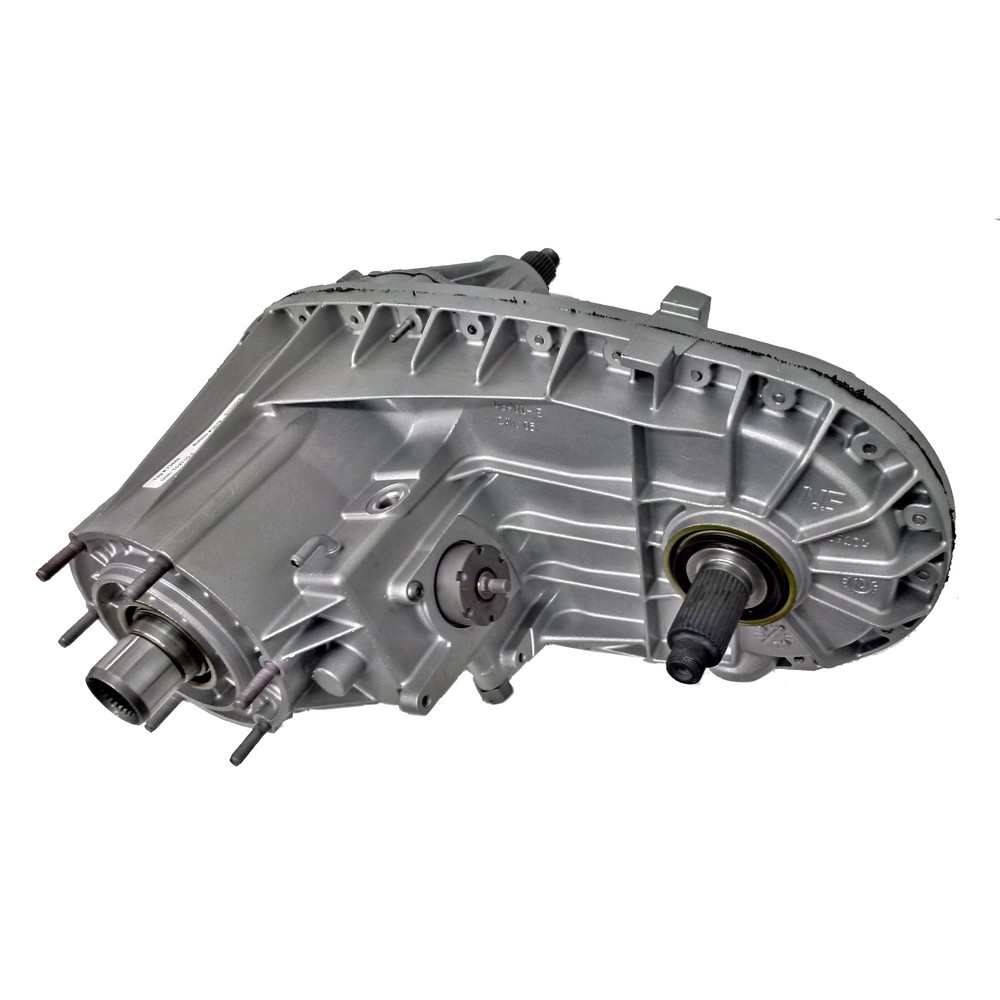

Dodge, Ram Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC271D-6

Transfer Case
RTC271D-6
NV271; 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Manual Shift, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20
,07,12,23SPL,3500,412-00623,412-623,52123022AA,A/T,BOLT,CASE,CHY,INPUT,ON,RAM,REAR,RTC,SPEEDO,T,TC271D-6,TRANSFERCASE,UMT313-20,W/O,YOKE,
NP271 Transfer Case for Chrysler 07-12 Ram 3500
T-CASE '07-'12 CHY RAM 3500 A/T, 23SPL INPUT, W/O SPEEDO, BOLT ON REAR YOKE
T-CASE 07-12 Chrysler RAM 3500 A/T , 23Spline INPUT , W/O SPEEDO , BOLT ON REAR YOKE .
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Housing Color: Aluminum
Housing Material: Aluminum
Rear Output Type: Bolt On
Shift Operation Type: Manual
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4

Detailed Fitment Results
Year Make Model Fitment Notes 2007 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20 2008 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20 2008 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander N umber: 412-623, Other Numbers: UMT313-20 2009 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20 2010 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20 2011 Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20 2012 Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Bolt on 6 Inch Flat Rear Output Yoke, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Number: 52123022AA, Hollander Number: 412-623, Other Numbers: UMT313-20
