Dodge Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC271D-3

Transfer Case
RTC271D-3
NV271; 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7/8 Inch Hex On The Switch, Manual Shift, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16
,03,03,1.55,1.55,12,12,25/3500,2500/3500,271,29SP,29SP,34SP,34SP,34-T03,412-00527A,412-527A,52853061AB,52853061AC,52853061AD,52853061AE,52853061AF,7/8,7/8,CASE,CASE,CHY,CHY,EX,EX,HEX,HEX,INP,INP,M,M,NP,NP271,NP271,NP271-DB,NP271-DD,R,R,RAM,RAM,RTC,RT

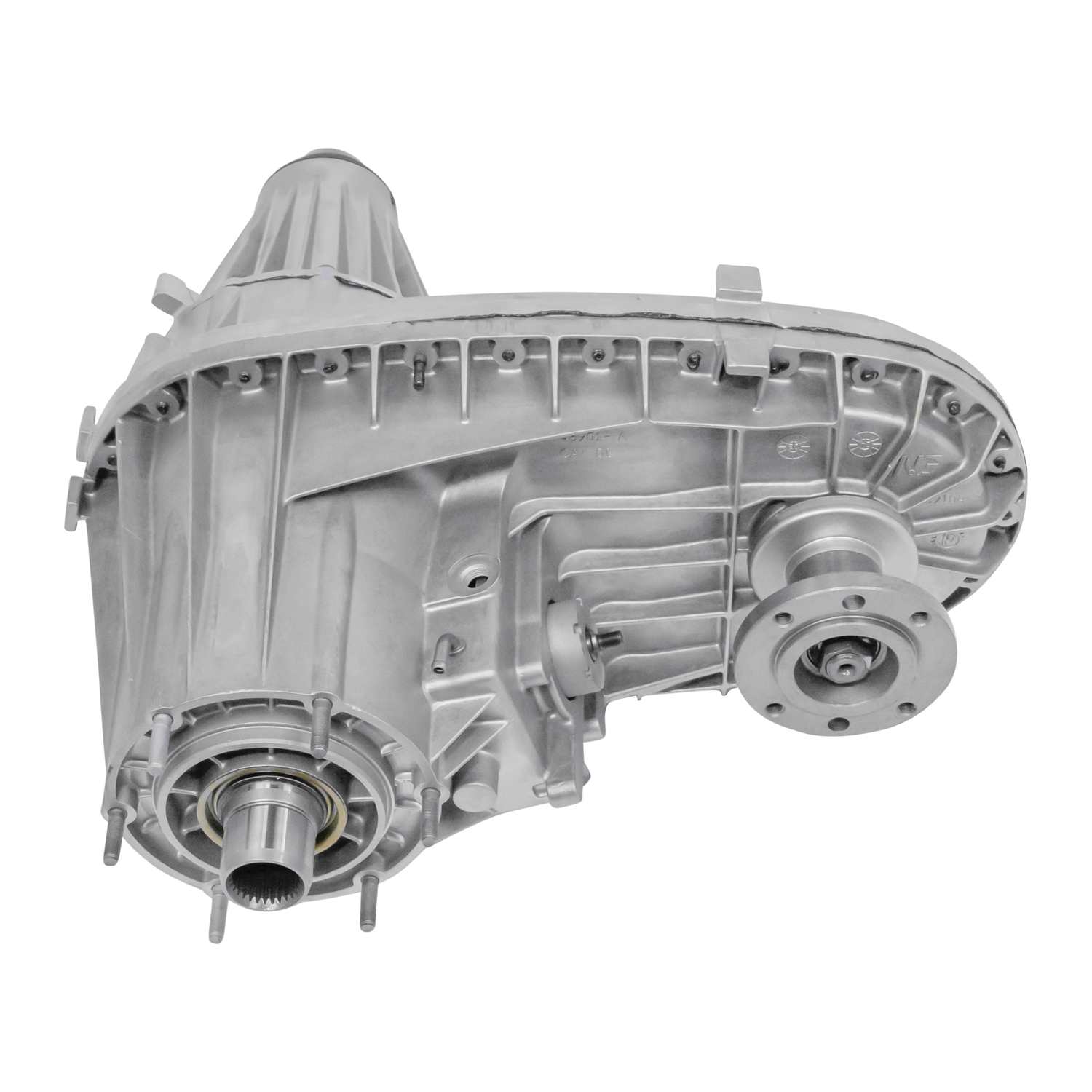

NP271 Transfer Case for Chrysler 03-12 Ram 2500/3500
NP271 T-CASE '03-'12 CHY RAM 2500/3500 1.55" 29SP EX INP, 34SP R S/Y, W/O SPEDO, 7/8" HEX, M-TRANS
Cases and internal components are inspected and tested for cracks, stripped threads, shaft warp, gear wear, and chain stretch. Each unit is fully rebuilt with new bearings, seals, and viscous couplers then dyno tested.
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
Fits 2003-2012 Dodge Ram 2500 and 3500
29 spline input with 1.55” exposed
34 spline rear slip yoke
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process to bring cases back to their OEM finish
All units are quality inspected throughout the remanufacturing process to maintain our quality standard
Remanufactured NP271 Transfer Case, 2003-12 Dodge Ram 2500 and 3500, With Manual Transmission or 68RFE Automatic Transmission
Fits 2003-2012 Dodge Ram 2500 & 3500
29 spline input with 1.55” exposed
34 spline rear slip yoke
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process to bring cases back to their OEM finish
All units are quality inspected throughout the remanufacturing process to maintain our quality standard
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Housing Color: Aluminum
Housing Material: Aluminum
Rear Output Type: Slip Yoke
Shift Operation Type: Manual
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4

Detailed Fitment Results
Year Make Model Fitment Notes 2003 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2003 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2004 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2004 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2005 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2005 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061AE, 52853061AF, Hollander Number: 412-527A, Other Numbers: UMT313-16 2006 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 29 Spline 1.55 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 2 Position Shift Indicator Switch With 7 / 8 Inch Hex On The Switch, Tag Numbers: 52853061AB, 52853061AC, 52853061AD, 52853061…
