Dodge Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC271D-2

Transfer Case
RTC271D-2
NV271; 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Manual Shift, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11
,.84,03,1.5,11,23SPL,25/3500,271,34SPL,34-T04,412-00498,412-00528B,412-498,412-528B,52105646AB,52105646AC,52105646AD,52105646AF,CASE,CHY,EXP.,HEX,INP,NP,NP271,NP271-DA,R,RAM,RTC,S/Y,SPEEDO,T,TC271D-2,TRANSFERCASES-R,UMT313-11,W/O,

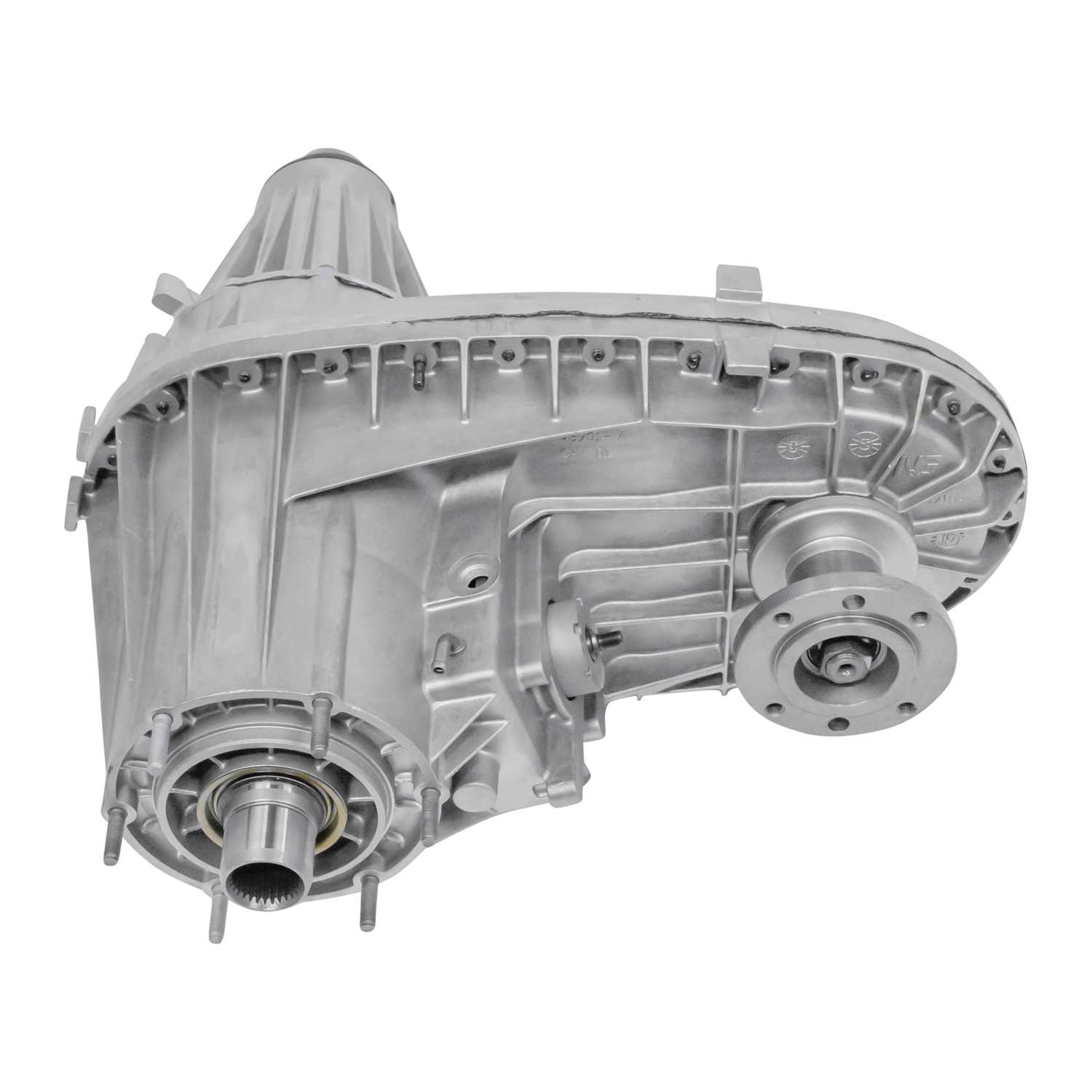

NP271 Transfer Case for Chrysler 03-11 Ram 2500/3500
NP271 T-CASE '03-'11 CHY RAM 25/3500 .84" 23SPL EXP. INP, 34SPL R S/Y, W/O SPEEDO, 1.5" HEX
NP271 T-CASE 03-11 Chrysler RAM 25/3500 .84" 23Spline EXP. INP , 34Spline R S/Y , W/O SPEEDO , 1.5" HEX .
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
Remanufactured NP271 Transfer Case, 2003-11 Dodge Ram 2500 and 3500, With Automatic Transmission
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Housing Color: Aluminum
Housing Material: Aluminum
Rear Output Type: Slip Yoke
Shift Operation Type: Manual
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4

Detailed Fitment Results
Year Make Model Fitment Notes 2003 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2003 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2004 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2004 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2005 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2005 Dodge Ram 3500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2006 Dodge Ram 2500 NV271; Manual Shift - Option Code DH1, 23 Spline 0.84 Inch Exposed Length On Input Shaft, 34 Spline Slip Yoke Style Rear Output Shaft, No Speedo Hole, 5 Position Shift Indicator Switch With 1.5 Inch Hex On The Switch, Tag Numbers: 52105646, 52105646AA, 52105646AB, 52105646AC, 52105646AD, 52105646AE, 52105646AF, Hollander Numbers: 412-498, 412-528B, Other Numbers: UMT313-11 2006 Dodge Ram 3500 NV271; Manual Shift - Option…
