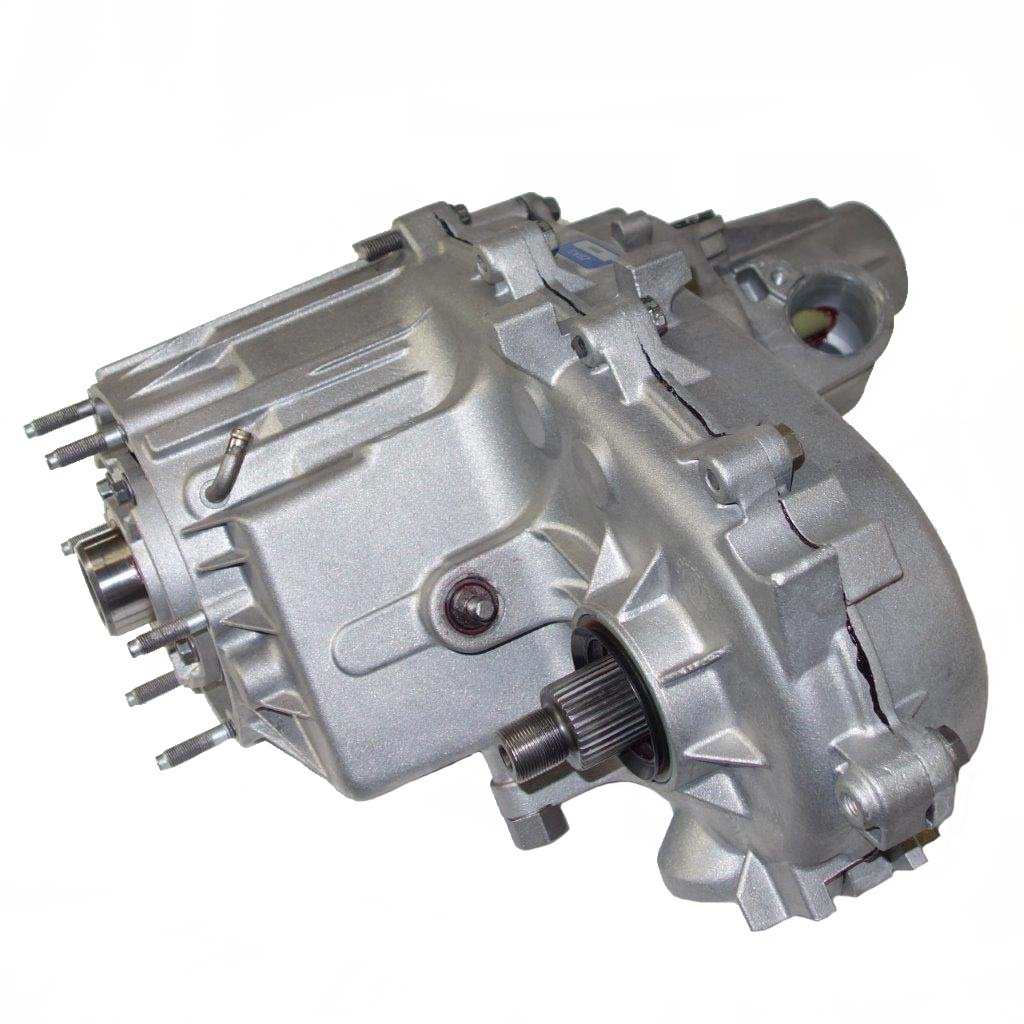

Jeep (4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC249J-2

Transfer Case
RTC249J-2
NV249; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097529, 52098539, 52098682, Hollander Number: 412-287, Other Numbers: UMT209-2
,1.55,1.55,23SP,249,27SP,2PC,31-T02,4,412-00287,412-287,52097529,52098539,52098682,8CYL,93,93,95,95,CASE,CASE,CHER,CHEROKEE,EXP,EXPOSED,GRAND,GRAND,INP,INPUT,JEEP,JEEP,NP,NP249,NP249,PIN,QUADRA,R,RTC,RTC,S/Y,SW,T,T,TAIL,TC249J-2,TRAC,TRANSFERCASE,UMT
NP249 Transfer Case For 1993-1995 Jeep Grand Cherokee 4.7L Quadra-Trac
NP249 T-CASE '93-'95 JEEP GRAND CHEROKEE QUADRA-TRAC 8CYL, 1.55" EXPOSED INPUT
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 1993 Jeep Grand Cherokee 4WD NV249; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097529, 52098539, 52098682, Hollander Number: 412-287, Other Numbers: UMT209-2 1993 Jeep Grand Wagoneer 4WD NV249; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097529, 52098539, 52098682, Hollander Number: 412-287, Other Numbers: UMT209-2 1994 Jeep Grand Cherokee 4WD NV249; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097529, 52098539, 52098682, Hollander Number: 412-287, Other Numbers: UMT209-2 1995 Jeep Grand Cherokee 4WD NV249; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Speedo Hole, 4 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52097529, 52098539, 52098682, Hollander Number: 412-287, Other Numbers: UMT209-2
