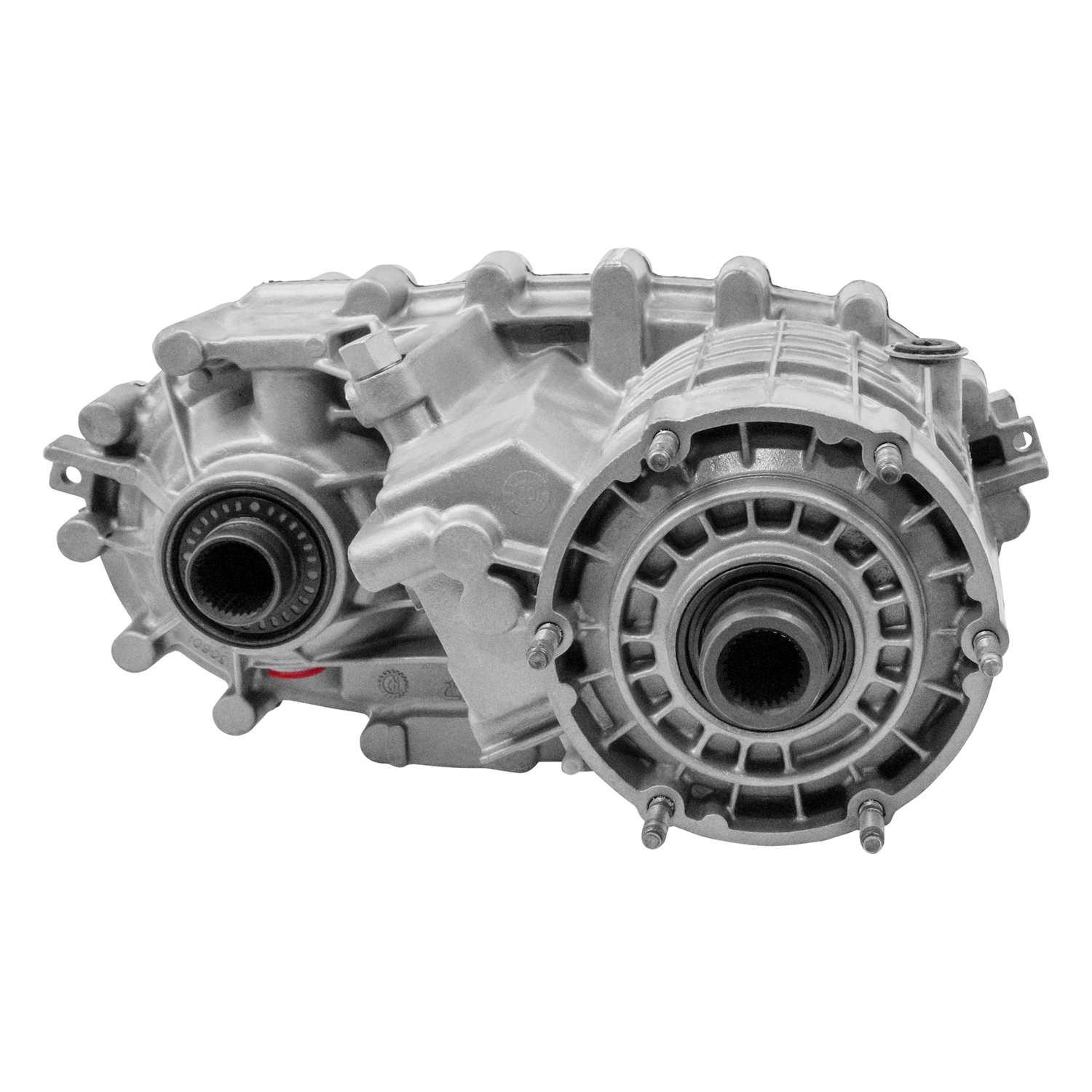

Cadillac, Chevrolet, GMC (4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC246G-1M

Transfer Case
RTC246G-1M
NP246; 27 Spline Input, Autotrack Option Code NP8, Shift motor is included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1
,02,02,246,99,99,CASE,CASE,GM,GM,MOTOR,NP,NP246,NP246,RTC,RTC,SHIFT,T,T,TC246G-1M,TRANSFERCASES-R,W/4L60E,W/4L60E,WITH,
Reman NP246 T-Case, 1999-02 GM 1500 Trucks and Full Size SUV, W/ 4L60E, W/ Motor
Remanufactured NP246 Transfer Case, 1999-2002 GM 1500 Series Trucks and Full Size SUV, With 4L60E Transmission, With Shift Motor
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota Drivetrain uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
Autotrack option NP8
27 Spline Input
32 Spline Rear Output
Electric Shift - Double D Shift Shaft
Shift motor is included
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
Autotrack option NP8
27 Spline Input
32 Spline Rear Output
Electric Shift - Double D Shift Shaft
Shift motor is included
Spin tested for shiftability and noise
High-density plastic shipping totes eliminate in-transit damage
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Height: 18
Housing Color: Aluminum
Housing Material: Aluminum
Length: 33
Mounting Bracket Included: No
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: 12378508 AutoTrac II
Transfer Case Manufacturer Code: NP8
Transfer Case Motor Included: Yes
Weight: 90
Width: 24

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1998 Chevrolet K1500 Suburban NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1998 Chevrolet Tahoe 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1998 GMC K1500 Suburban NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1998 GMC Yukon 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 Cadillac Escalade 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 Chevrolet K1500 Suburban NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 Chevrolet Silverado 1500 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 Chevrolet Silverado 2500 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 Chevrolet Tahoe 4WD NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037351, 15039438, 15052506, 15709322, 15753790, 15761465, 15769438, 24228404, 24228410, Other Numbers: UMT137-1 1999 GMC K1500 Suburban NP246; 27 Spline Input, Autotrack Option Code NP8, Shift Motor is Included, Hollander Numbers: 412-394, 412-424, 412-426, Tag Numbers: 12572904, 12575125, 15007093, 15017351, 15017912, 15017942, 15037093, 15037…
