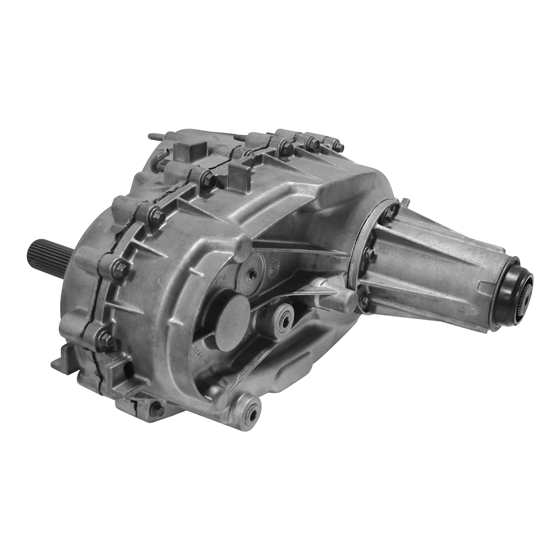

04-05 Dodge Ram 1500 (4WD) Transfer Case Assembly - Zumbrota Drivetrain - RTC244DHD-1M

Transfer Case
RTC244DHD-1M
NV244; 23 Spline 0.84 Inch Exposed Length On Input Shaft, 32 Spline Rear Output Shaft, No Speedo Hole, Slip yoke Style Front Output Yoke, Electric Shift, Shift shaft Is Round With Two Flat Spots, Includes Shift motor, Tag Number: 52853107AB, Hollander Number: 412-526, Other Numbers: UMT317-2
,.84,04,05,1500,23SPL,244,32SPL,CASE,CHY,DODGE,EXP.,INP,MOTOR,NP244,R,RAM,RTC,SHIFT,SLIP,T,W/,
Reman NP244 T-Case 2004-05 Ram 1500, Electric Shift, Option Code DHU, W/ Motor
Remanufactured NP244 Transfer Case 2004-05 Dodge Ram 1500, Electric Shift, Option Code DHU, With Shift Motor
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
NP244 Transfer Case
2004-05 Dodge Ram 1500
Electric Shift
Option Code DHU
Shift Motor is included
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
NP244 Transfer Case
2004-05 Dodge Ram 1500
Electric Shift
Option Code DHU
Shift Motor is included
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Height: 18
Housing Color: Aluminum
Housing Material: Aluminum
Length: 34
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 1.7
Transfer Case Fluid Type: ATF +4
Transfer Case Motor Included: Yes
Weight: 90
Width: 24

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2004 Dodge Ram 1500 4WD NV244; 23 Spline 0.84 Inch Exposed Length On Input Shaft, 32 Spline Rear Output Shaft, No Speedo Hole, Slip yoke Style Front Output Yoke, Electric Shift, Shift shaft Is Round With Two Flat Spots, Includes Shift motor, Tag Number: 52853107AB, Hollander Number: 412-526, Other Numbers: UMT317-2 2005 Dodge Ram 1500 4WD NV244; 23 Spline 0.84 Inch Exposed Length On Input Shaft, 32 Spline Rear Output Shaft, No Speedo Hole, Slip yoke Style Front Output Yoke, Electric Shift, Shift shaft Is Round With Two Flat Spots, Includes Shift motor, Tag Number: 52853107AB, Hollander Number: 412-526, Other Numbers: UMT317-2
