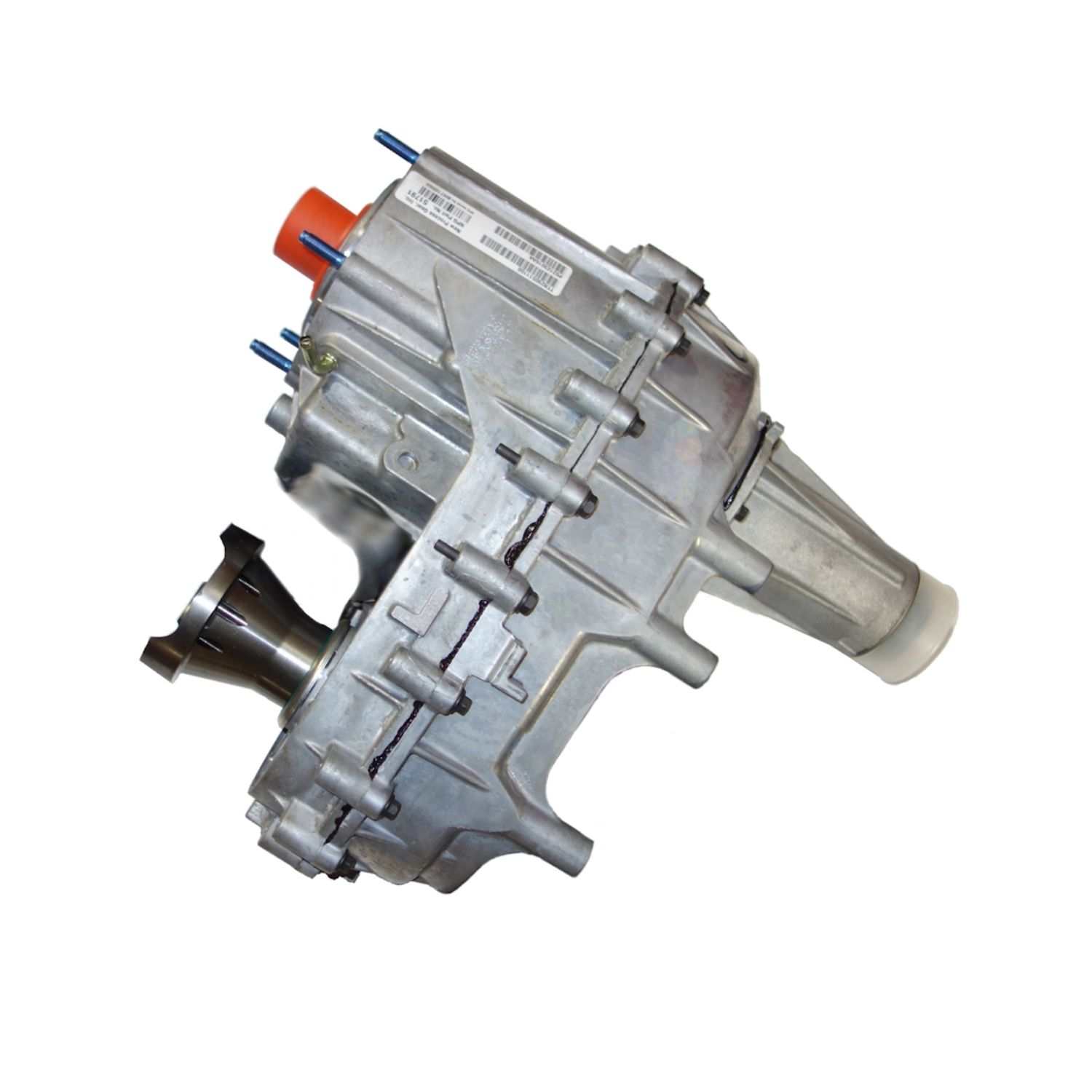

Dodge, Mitsubishi (4WD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC243D-3

Transfer Case
RTC243D-3
NV243; Electric Shift, Shift motor is not included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, Cup Style Front Output Yoke, 32 Spline Rear Output, No Shift Indicator Switch, 2nd Generation case, Tag Numbers: 52123016AA, 52123108AA, Hollander Number: 412-51305, 412-51306, Other Numbers: UMT317-6
,2006,243,412-51305,52123016AA,CASE,CHY,DAKOTA,ELEC,NP,NP243,RTC,SHIFT,T,TC243D-3,TRANSFERCASES-R,UMT317-6,
Reman NP243 T-Case, 2006-07 Dodge Dakota and Mitsubishi Raider, W/O Shift Motor
Remanufactured NP243 Transfer Case, 2006-07 Dodge Dakota and Mitsubishi Raider, Cup Style Front Output Yoke, Without Shift Motor
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
Cup Style Front Output Yoke
Shift Motor is Not Included
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
Cup Style Front Output Yoke
Shift Motor is Not Included
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Height: 18
Housing Color: Aluminum
Housing Material: Aluminum
Length: 34
Mounting Bracket Included: No
Shift Operation Type: Electric
Transfer Case Fluid Capacity: 2
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4
Transfer Case Manufacturer Code: DH5
Transfer Case Motor Included: Yes
Weight: 85

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 2006 Dodge Dakota 4WD NV243; Electric Shift, Shift motor is not included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, Cup Style Front Output Yoke, 32 Spline Rear Output, No Shift Indicator Switch, 2nd Generation case, Tag Numbers: 52123016AA, 52123108AA, Hollander Number: 412-51305, 412-51306, Other Numbers: UMT317-6 2006 Mitsubishi Raider DuroCross / LS 4WD NV243; Electric Shift, Shift motor is not included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, Cup Style Front Output Yoke, 32 Spline Rear Output, No Shift Indicator Switch, 2nd Generation case, Tag Numbers: 52123016AA, 52123108AA, Hollander Number: 412-51305, 412-51306, Other Numbers: UMT317-6 2007 Dodge Dakota 4WD NV243; Electric Shift, Shift motor is not included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, Cup Style Front Output Yoke, 32 Spline Rear Output, No Shift Indicator Switch, 2nd Generation case, Tag Numbers: 52123016AA, 52123108AA, Hollander Number: 412-51305, 412-51306, Other Numbers: UMT317-6 2007 Mitsubishi Raider 4WD NV243; Electric Shift, Shift motor is not included, Star Shaped Shift Shaft, 23 Spline 0.84 Inch Exposed Length On Input Shaft, Cup Style Front Output Yoke, 32 Spline Rear Output, No Shift Indicator Switch, 2nd Generation case, Tag Numbers: 52123016AA, 52123108AA, Hollander Number: 412-51305, 412-51306, Other Numbers: UMT317-6
