Jeep Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC241J-6

Transfer Case
RTC241J-6
NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18

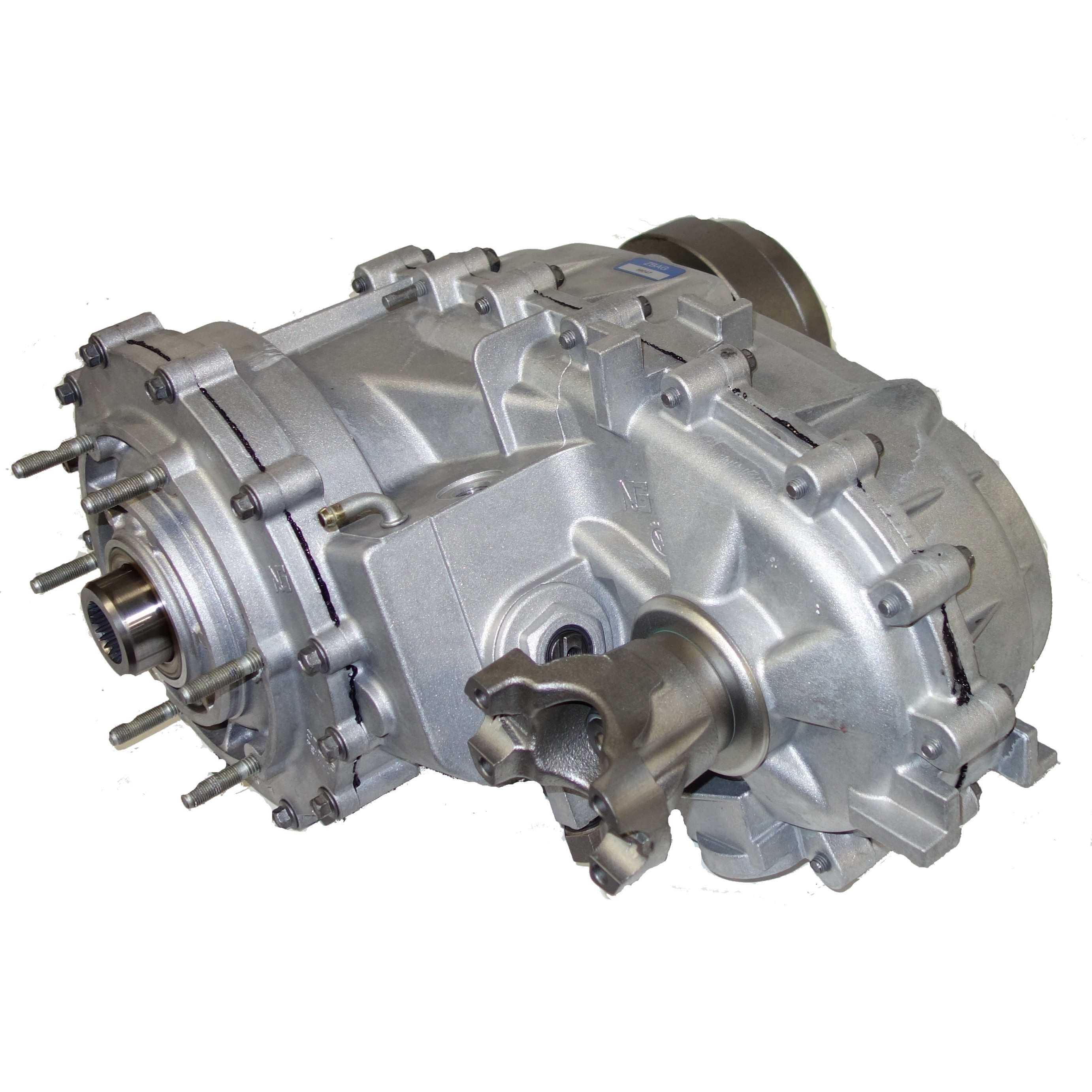

Reman NP241 T-Case 2007-18 Jeep JK W/ Manual Trans, 4:1 Ratio, Rock-Trac Option
Remanufactured NP241 Transfer Case 2007-18 Jeep JK With Manual Transmission, 4:1 Ratio, Rock-Trac Option
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
NP241 Transfer Case
2007-18 Jeep JK With Manual Transmission
4:1 Ratio, Rock-Trac Option
Units are shipped in high density plastic totes to help eliminate in-transit damage.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
NP241 Transfer Case
2007-18 Jeep JK With Manual Transmission
4:1 Ratio, Rock-Trac Option
Units are shipped in high density plastic totes to help eliminate in-transit damage.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Height: 18
Housing Color: Aluminum
Housing Material: Aluminum
Length: 34
Mounting Bracket Included: No
Shift Operation Type: Manual
Transfer Case Fluid Capacity: 2.1
Transfer Case Fluid Included: No
Transfer Case Fluid Type: ATF +4
Weight: 90
Width: 24

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 2007 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2008 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2009 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2010 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2011 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2012 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2013 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2014 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2015 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 Inch Exposed Length On Input Shaft, Bolt On Rear Output Yoke, With Manual Transmission, With Speed Sensor Hole, With Rock-Trac Option, 4:1 Ratio Low Range, Tag Numbers: 52853412AA, 52853412AB, 52853412AC, Hollander Number: 412-626, Other Numbers: UMT207-18 2016 Jeep Wrangler Rubicon / Unlimited Rubicon NV241J; 23 Spline 0.84 …
