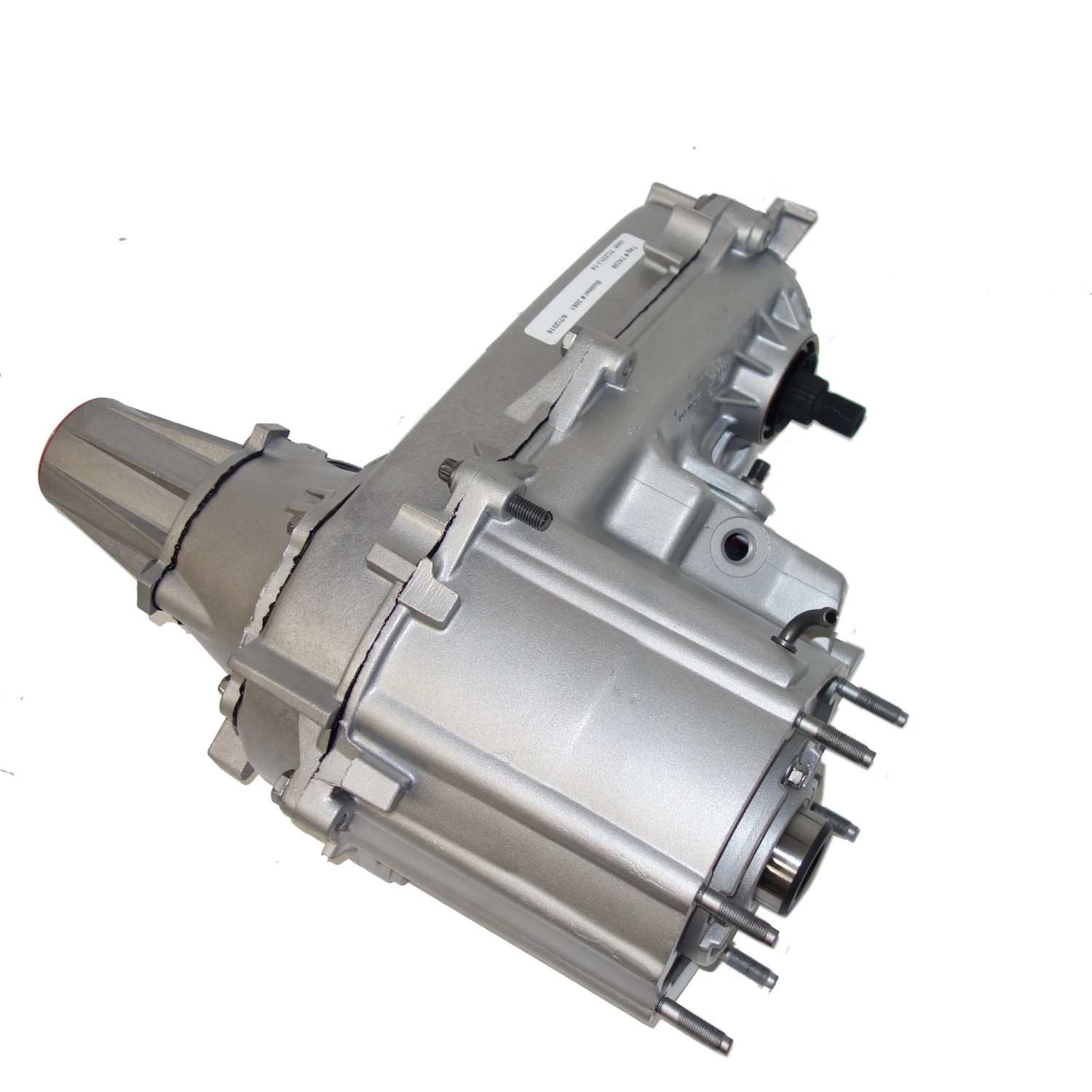

Jeep (2.5, 4.0, 4.2) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC231J-3

Transfer Case
RTC231J-3
NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10
,and,1.55,1.75,231,23SPL,23-T18,27SPL,2PC,2PIN,412-00308,412-00313,412-00327,412-308,412-313,412-327,52097893,52098048,52098563,53004270,53004271,53006094,53008210,87,95,CASE,INP,JEEP,NP,NP231,R,RTC,S/Y,SPEEDO,SW,T,TAIL,TC231J-3,TRANSFERCASES-R,UMT207-10
NP231 Transfer Case for Jeep 87-95 Cherokee and Wralgner
NP231 T-CASE '87-'95 JEEP YJ WRANGLER and '94-'95 XJ CHEROKEE, 1.55" 23SPL INP, 27SPL R S/Y
NP231 T-CASE 87-95 JEEP YJ and XJ 1.55" 23Spline INP , 27Spline R S/Y , 2PC TAIL , 1.75" SPEEDO , 2PIN SW .
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
Units are shipped in high density plastic totes to help eliminate in-transit damage.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Fitment Notes 1987 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1988 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1989 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1990 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1991 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1992 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1993 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Numbers: UMT207-10 1994 Jeep Cherokee NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch, 2 Piece Tail Housing, Tag Numbers: 52097893, 52098048, 52098563, 53004271, 53006094, 53008210, Hollander Numbers: 412-308, 412-313, 412-327, Other Number s: UMT207-10 1994 Jeep Wrangler NV231; 23 Spline 1.55 Inch Exposed Length On Input Shaft, Bolt On…
