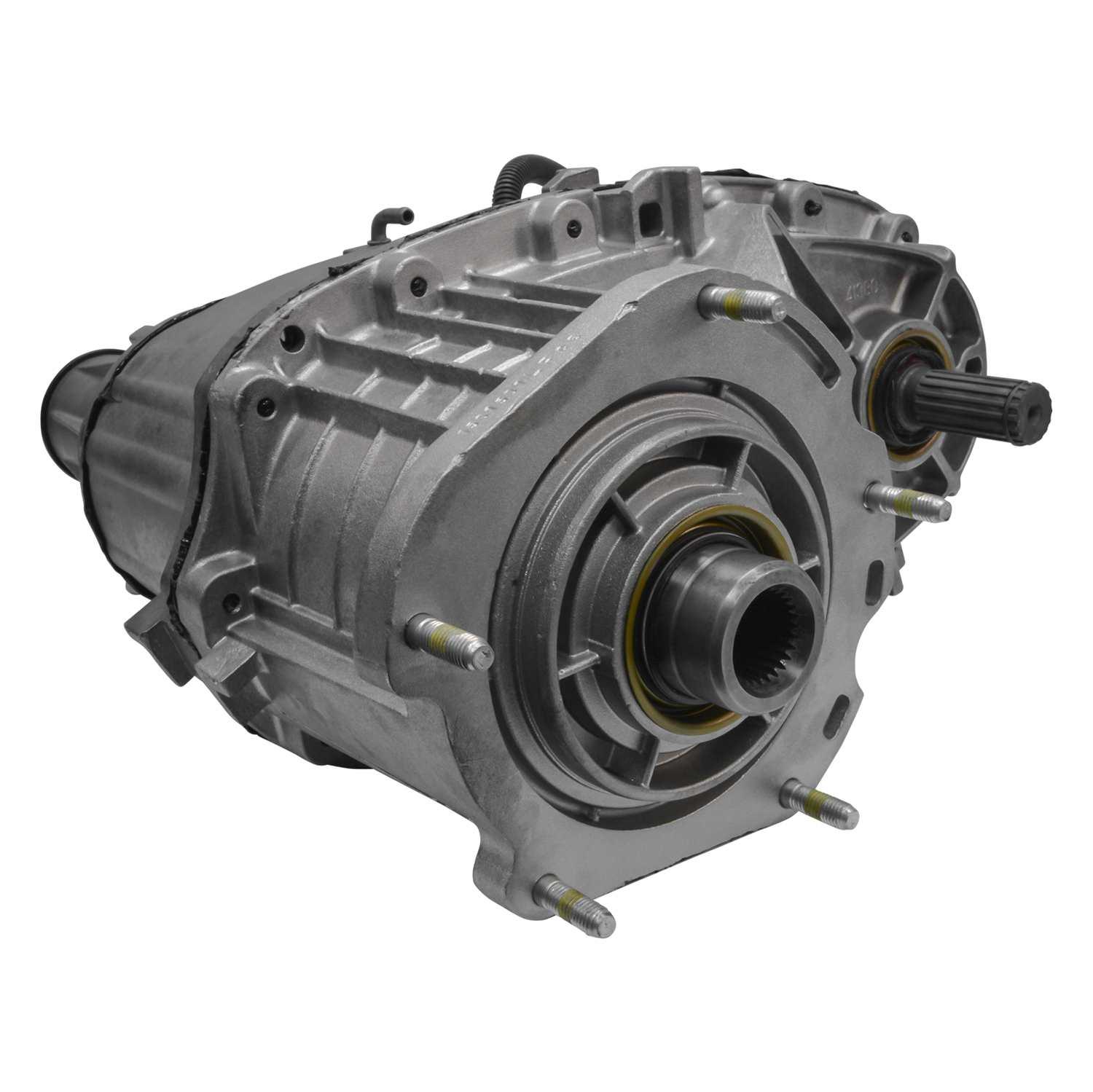

Buick, Chevrolet, GMC, Isuzu... (4WD/AWD) Transfer Case Assembly - N/A - Zumbrota Drivetrain - RTC226G-1M

Transfer Case
RTC226G-1M
NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift motor is included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2
,and,02,09,226,27SPL,CASE,E,ENVOY,GM,INP,MOTOR,NP226,RTC,SHFT,SHIFT,T,TRAILBLZR,W/,
Transfer Case for 2002-2009 GM Envoy and Trailblazer, 27 Spline Input
NP226 T-CASE '02-'09 GM ENVOY and TRAILBLZR E-SHFT, 27SPL INP, W/ SHIFT MOTOR
NP226 T-CASE 02-09 GM ENVOY and TRAILBLZR E-SHFT , 27Spline INP , W/ SHIFT MOTOR .
Zumbrota Drivetrain Transfer Cases are rebuilt to unparalleled standards for confidence and satisfaction driving behind the wheel. Our expert craftsmen take pride in restoring each unit to ensure the utmost quality by diligently executing each step. Cases and internal components are thoroughly inspected and tested for signs of wear such as cracks, stripped threads, shaft straightness, gear wear and chain stretch. Zumbrota uses an exclusive Hydro-blast rinse and blasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning. Each unit is fully rebuilt with replacement of all bearings, seals, and viscous couplers. All finished units are thoroughly spun tested for shift-ability and noise. All transfer cases are shipped in high density plastic totes to eliminate damage in transit.
For 2002-2009 GM Envoy
For 2002-2009 Chevrolet Trailblazer
27 Spline Input
With Shift Motor
Transfer Case for 2002-2009 GM Envoy and Trailblazer, 27 Spline Input
Transfer Case
For 2002-2009 GM Envoy
For 2002-2009 Chevrolet Trailblazer
27 Spline Input
With Shift Motor
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2002 Chevrolet Trailblazer EXT 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2002 Chevrolet Trailblazer 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2002 GMC Envoy XL 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2002 GMC Envoy 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2003 Isuzu Ascender 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2003 Chevrolet Trailblazer EXT 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2003 Chevrolet Trailblazer 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2003 GMC Envoy XL 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2003 GMC Envoy 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2004 Isuzu Ascender 4WD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift Motor is Included, Two Speed, Option Code NP8, Tag Numbers: 12577425, 12580320, 12580321, 12585314, 12585316, 12588508, 15155589, 15762810, 24228408, 24236607, 24238837, 24242114, 24242561, Hollander Number: 412-572, Other Numbers: UMT136-2 2004 Buick Rainier AWD NV226; 27 Spline Input, Slip Yoke Style Rear Output Shaft, External Spline Front Output, Electric Shift, Shift …
