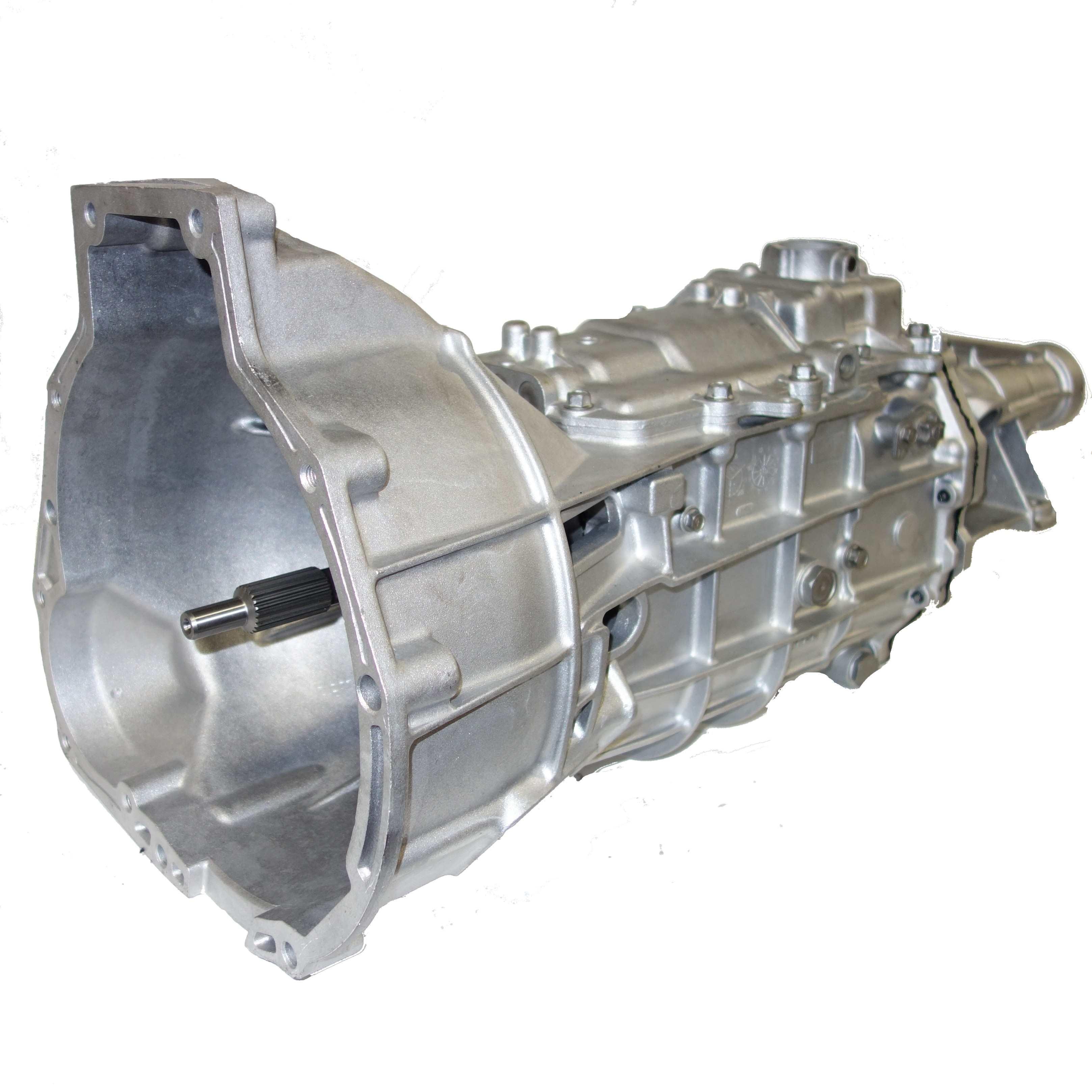

Ford, Mazda (140 - RWD) Manual Transmission Assembly - N/A - Zumbrota Drivetrain - RMTM5R1F-1SW

Manual Transmission
RMTM5R1F-1SW
M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5/8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267
,and,and,1,1,2.3L,2WD,2WD,4,4,400-2267,5/8,5/8,7T,88,88,94,94,94,B,B2300,FORD,GEAR,M/T,M/T,M5R1,M5R1,MANUALTRANSMISS,MAZDA,RANG,RANGER,RMT,RMT,SERIES,SHIFTER,SHIFTER,SPEEDO,SPEEDO,STUB,STUB,SW.,SWITCH,T7,TM5R1F-1SW,TOP,WHITE,
M5R1 Man. Trans 1988-94 Ranger and 94 B2300, 2.3L, 2WD, 7 Tooth White Speedo Gear
M5R1 M/T 88-94 RANGER and 94 B2300, 2.3L, 2WD, 4 5/8" SHIFTER STUB, 7T WHITE SPEEDO GEAR, 1 SWITCH
M5R1 Manual Transmission 1988-94 Ranger And 1994 Mazda B2300, 2.3L, 2WD , 4 5/8" Long Shifter Stub, 7 Tooth White Speedo Gear, 1 Switch Top Cover
Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear and synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
M5R1 Man Trans 88-94 Ford Ranger/94 B2300, 2.3L, 2WD, 7 Tooth White Speedo Gear
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Grade Type: Regular
Shifter Included: No
Transmission Fluid Capacity: 3.4
Transmission Fluid Included: No
Transmission Fluid Type: Non-Synthetic Dexron III or Mercon ATF
Transmission Speeds: 5

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 1988 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1989 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1990 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1991 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1992 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1993 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1994 Ford Ranger RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267 1994 Mazda B2300 RWD M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5 / 8 Inch long Shifter Stub, One Switch Top Cover, Gear Driven Speedo, White 7 Tooth Speedo Gear, Tag Numbers: F27A-UA, F57A-AA, F67A-AAA, Hollander Number: 400-02267
