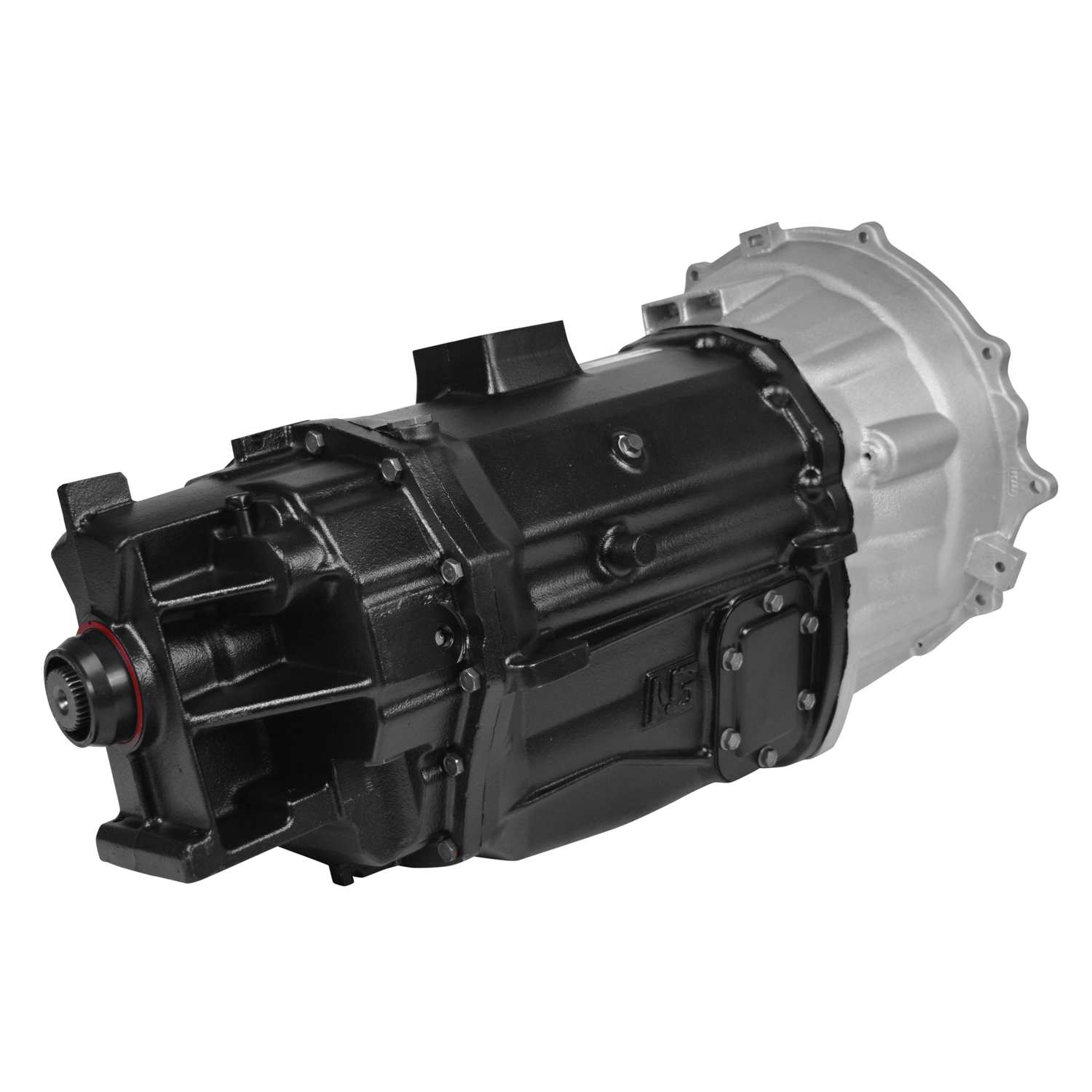

Dodge (5.9 - RWD) Manual Transmission Assembly - N/A - Zumbrota Drivetrain - RMT5600D-3

Manual Transmission
RMT5600D-3
NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3/8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302
,05,1.375,2WD,400-04302,400-4302,5.9L,5600,6SPD,99,CHY,DSL,INP,M/T,NV,NV5600,NV5600-C,RMT,T5600D-3,TRANSMISSION,
NV5600 Manual Transmission for Dodge 99-05 Ram 5.9L Diesel, 2WD, 6 Speed
NV5600 M/T '99-'05 CHY 5.9L DSL, 6SPD, 2WD, 1.375" INP
Zumbrota transmissions are remanufactured to the highest quality standards using a three-step inspection process, a proprietary hydro-blast rinse/sandblasting procedure on internal and external parts, followed by shot-enticed deep cleaning.
Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear and synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.
1999-00 Dodge 2500 and 3500 With High Output 5.9l Diesel
2001-05 Dodge 2500 and 3500 5.9L Diesel
2wd, 6 Speed
1-3/8” Diameter Input Shaft
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
Need Help? If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Zumbrota Reman NV5600 Manual Transmission, 1999-05 Ram 5.9L Diesel, 2WD, 6 Speed, RMT5600D-3
Zumbrota Reman NV5600 Manual Transmission, 1999-05 Ram 5.9L Diesel, 2WD, 6 Speed
1999-00 Dodge 2500 & 3500 With High Output 5.9l Diesel
2001-05 Dodge 2500 & 3500 5.9L Diesel
2wd, 6 Speed
1-3/8” Diameter Input Shaft
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Pre-Filled Oil: No
Transmission Fluid Capacity: 5.75
Transmission Fluid Included: No
Transmission Fluid Type: Synchromesh 4874464
Transmission Speeds: 6 Speed

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 1999 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 1999 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2000 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2000 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2001 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2001 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2002 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2002 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2003 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2003 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2004 Dodge Ram 2500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2004 Dodge Ram 3500 RWD NV5600; Cast Iron Case, Aluminum Bell Housing, 1-3 / 8 Inch Diameter Input Shaft, ID: 52108501AA, 52108501AB, 52108501AC, Hollander Number: 400-04302 2005 Dodge Ram 2500 RWD NV5600; …
