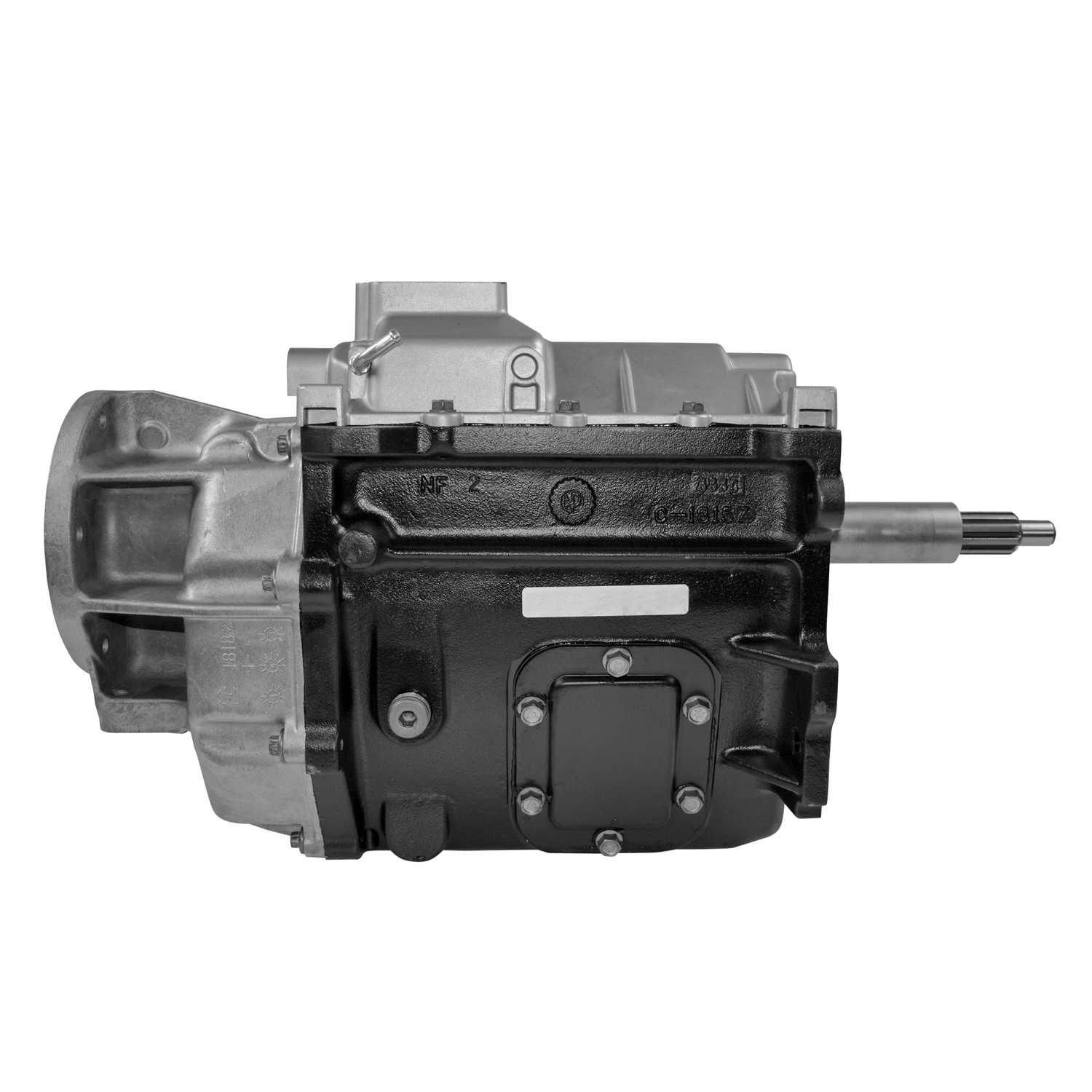

Dodge (5.9, 8.0 - 4WD) Manual Transmission Assembly - N/A - Zumbrota Drivetrain - RMT4500D-6

Manual Transmission
RMT4500D-6
NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251
,02,400-03251,400-3251,4500,4WD,5SPD,8.0L,98,ALUM,CASE,CHY,CI,COVER,DSL,M/T,NV,NV4500,NV4500-KA,OR,RMT,T4500D-6,TOP,TRANSMISSION,
NV4500 Manual Transmission for Chrysler 1998-2002 8.0L or Diesel, 4x4, 5 Speed
NV4500 M/T '98-'02 CHY 8.0L OR DSL, 5SPD, 4WD, CI CASE, ALUM TOP COVER
Zumbrota transmissions are remanufactured to the highest quality standards using a three-step inspection process, a proprietary hydro-blast rinse/sandblasting procedure on internal and external parts, followed by shot-enticed deep cleaning.
Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear and synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.
5-speed manual transmission
5.61 ratio 1st gear
10 spline 1-1/4" diameter input splines
Cast iron main case
Fits square 4-bolt shifter stub
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Zumbrota Remanufactured NV4500 M/T for Chrysler 1998-02 8.0L or Diesel, 4x4, RMT4500D-6
Zumbrota Reman NV4500 Manual Transmission, 1998-02 Chrysler 8.0L or Diesel, 4x4
5-speed manual transmission
5.61 ratio 1st gear
10 spline 1-1/4" diameter input splines
Cast iron main case
Fits square 4-bolt shifter stub
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Pre-Filled Oil: No
Transmission Fluid Capacity: 5
Transmission Fluid Included: No
Transmission Fluid Type: GM 19369226
Transmission Fluid Type: Redline 50504
Transmission Fluid Type: Amsoil MTG
Transmission Speeds: 5 Speed

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1998 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 1998 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 1999 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 1999 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2000 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2000 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2001 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2001 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2002 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251 2002 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03251
