Dodge (5.9, 8.0 - RWD) Manual Transmission Assembly - N/A - Zumbrota Drivetrain - RMT4500D-20

Manual Transmission
RMT4500D-20

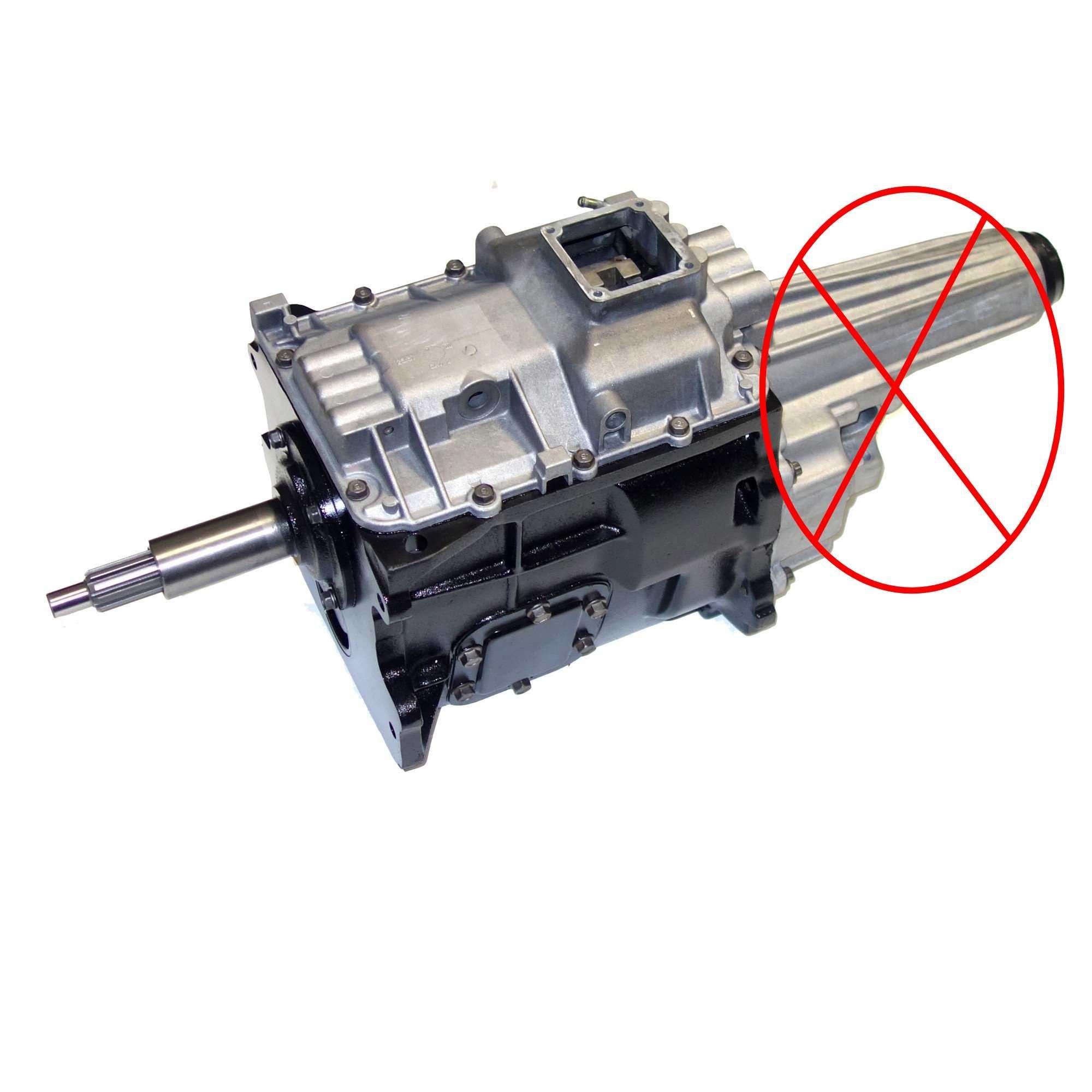

NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included
Reman NV4500 Manual Trans, 98-02 2500/3500, 8.0L/Diesel, 2WD, Tail not included
Remanufactured NV4500 Manual Transmission, 1998-02 Dodge 2500 and 3500, 8.0L or Diesel, 2WD, Tailhousing is not included, 5 Speed
Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear and synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Pre-Filled Oil: No
Transmission Fluid Capacity: 5
Transmission Fluid Included: No
Transmission Fluid Type: GM19369226/REDLINE 50504/AMSOIL MTG
Transmission Speeds: 5

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1998 Dodge Ram 2500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 1998 Dodge Ram 3500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 1999 Dodge Ram 2500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 1999 Dodge Ram 3500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2000 Dodge Ram 2500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2000 Dodge Ram 3500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2001 Dodge Ram 2500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2001 Dodge Ram 3500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2002 Dodge Ram 2500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included 2002 Dodge Ram 3500 RWD NV4500; Cast Iron Case, Aluminum Top Cover, Square Four Bolt Shift Tower, Hollander Number: 400-03250, The tailhousing is NOT included but a new seal and bushing are included
