Dodge (5.9 - 4WD) Manual Transmission Assembly - N/A - Zumbrota Drivetrain - RMT4500D-13

Manual Transmission
RMT4500D-13
NV4500; Cast Iron Case, Aluminum Top Cover, From 7/11/2000, 29 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-00272
,**5.9L,01,02,25/3500,29SPL,400-00272,400-272,4500,4WD,5SPD,ALMINUM,CASE,CHY,CI,COVER,GAS**,M/T,NV,NV4500,OUTPUT,RMT,T4500D-13,TOP,TRANSMISSION,

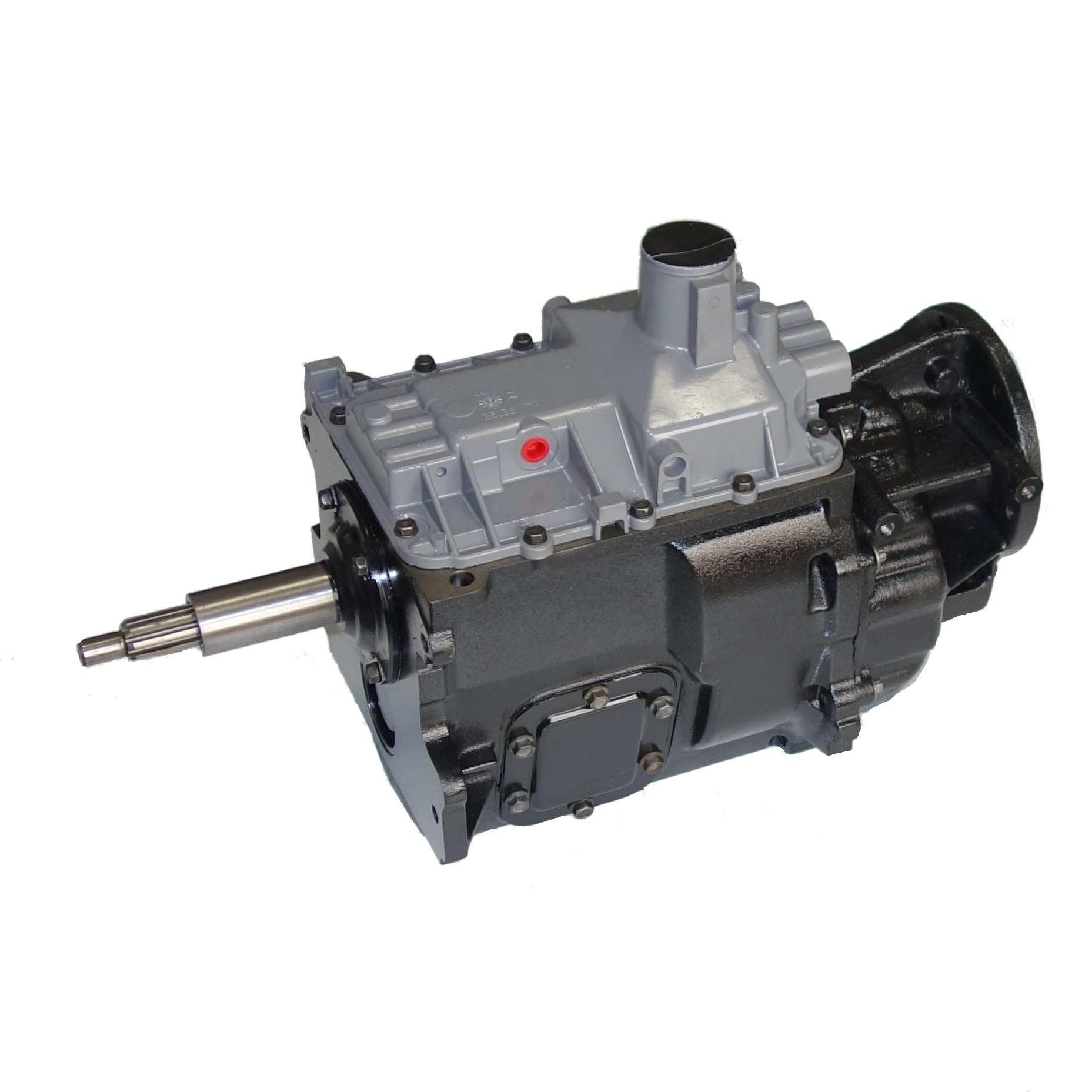

NV4500 Manual Transmission for Dodge 01-02 2500 and 3500, 5 Speed
NV4500 M/T '01-'02 CHY 25/3500 **5.9L GAS** 5SPD, 4WD, 29SPL OUTPUT, CI CASE, ALMINUM TOP COVER
NV4500 M/T 01-02 Chrysler 25/3500 ~~5.9L GAS~~ 5SPD , 4WD , 29Spline OUTPUT , CI CASE , ALMINUM TOP COVER .
Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear and synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Pre-Filled Oil: No
Transmission Fluid Capacity: 5
Transmission Fluid Included: No
Transmission Fluid Type: GM 19369226
Transmission Fluid Type: Amsoil MTG
Transmission Fluid Type: Redline 50504
Transmission Speeds: 5 Speed

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2001 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, From 7 / 11 / 2000, 29 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-00272 2001 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, From 7 / 11 / 2000, 29 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-00272 2002 Dodge Ram 2500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, From 7 / 11 / 2000, 29 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-00272 2002 Dodge Ram 3500 4WD NV4500; Cast Iron Case, Aluminum Top Cover, From 7 / 11 / 2000, 29 Spline Output Shaft, Square Four Bolt Shift Tower, Hollander Number: 400-00272
