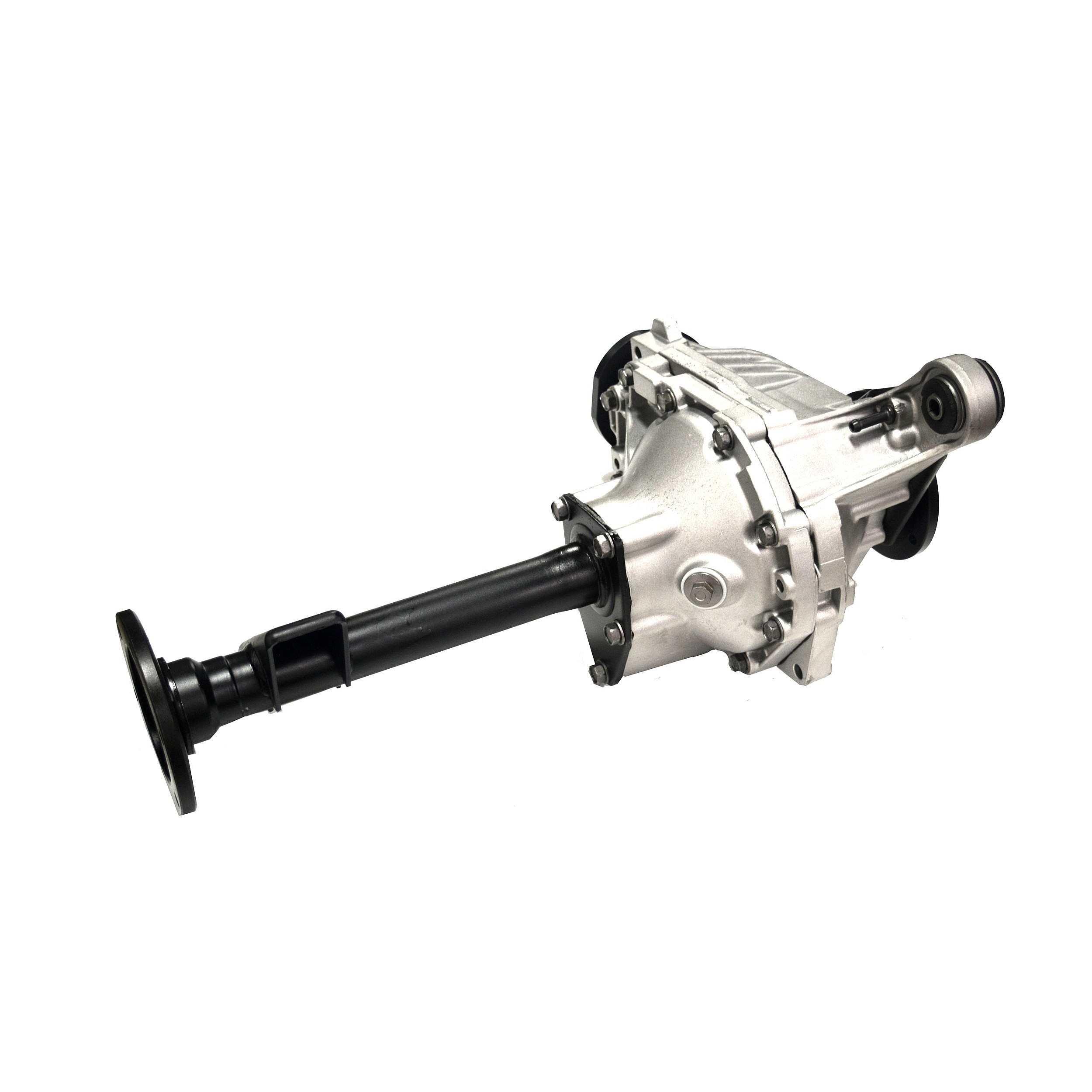

Chevrolet, GMC, Oldsmobile (AWD) Drive Axle Assembly - Front - Zumbrota Drivetrain - RAA440-1364M

Rear Axle Assembly
RAA440-1364M
Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4
,and,and,3.73,3.73,440-1364M,7.2IFS,7.2IFS,90,90,96,96,ASSY,ASSY,ASTRO,ASTRO,AXLE,AXLE,DIFFS,DISC.,FLAT,FLNG,GM,GM,RAA,RAA,RND,SAFARI,SAFARI,W/O,YOKE,
Reman Axle Assembly for GM 7.2 IFS 90-96 GMC Astro and Safari 3.73 Ratio
7.2IFS AXLE ASSY '90-'96 GM ASTRO and SAFARI 3.73- RND FLNG, FLAT YOKE, W/O DISC.
7.2IFS AXLE Assembly 90-96 GM ASTRO and SAFARI 3.73 .
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
Units are shipped in high density plastic totes to help eliminate in-transit damage
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Units are shipped in high density plastic totes to help eliminate in-transit damage
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Gear Ratio: 3.73

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1990 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1990 GMC Safari Base / SLE / SLT / SLX AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1991 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1991 GMC Safari Base / SLE / SLT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1991 Oldsmobile Bravada Base Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1992 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1992 GMC Safari Base / SLE / SLT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1992 Oldsmobile Bravada Base Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1993 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1993 GMC Safari Base / SLE / SLT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1993 Oldsmobile Bravada Base Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1994 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1994 GMC Safari Base / SLE / SLT / SLX AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1994 Oldsmobile Bravada Base Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1995 Chevrolet Astro Base / LT / CL / CS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1995 Chevrolet Blazer LT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1995 GMC Jimmy SLT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1995 GMC Safari Base / SLE / SLT / SLX / SL AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1996 Chevrolet Astro Base / LT / LS AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1996 Chevrolet Blazer LT AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1996 GMC Safari Base / SLE / SLT / SLX / SL AWD Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4 1996 Oldsmobile Bravada Base Ratio: 3.73; GM 7.25 Inch Ring Gear, IFS, Ratio Option GT4
