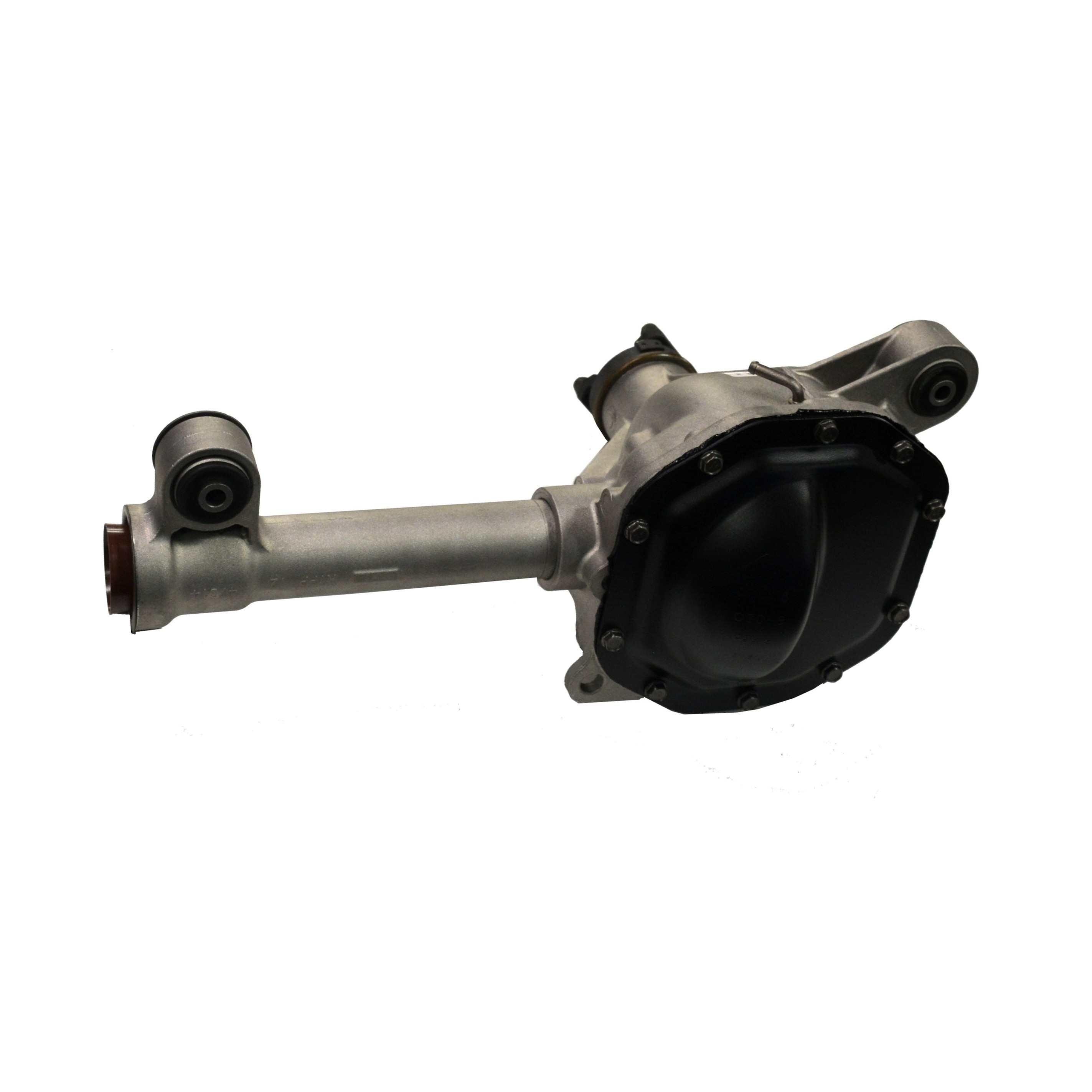

Ford, Mercury (4WD/AWD) Drive Axle Assembly - Front - Zumbrota Drivetrain - RAA440-1348B

Rear Axle Assembly
RAA440-1348B
Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS
,03,3.55,440-1348B,96,ASSY,AXLE,DANA,DIFFS,EXPLORER,FD4009C,FD4021C,FORD,IFS,M35,RAA,
Reman Axle Assembly for Ford M35 IFS 96-03 Ford Explorer 3.55 Ratio
DANA M35 IFS AXLE ASSY '96-'03 FORD EXPLORER 3.55
D35 IFS AXLE Assembly 96-03 FORD EXPLORER 3.55 .
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
Units are shipped in high density plastic totes to help eliminate in-transit damage
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Units are shipped in high density plastic totes to help eliminate in-transit damage
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Gear Ratio: 3.55

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1996 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1997 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1997 Mercury Mountaineer AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1998 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1998 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1998 Mercury Mountaineer AWD / 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1999 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1999 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 1999 Mercury Mountaineer AWD / 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2000 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2000 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2000 Mercury Mountaineer AWD / 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2001 Ford Explorer 4WD / AWD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2001 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2001 Mercury Mountaineer AWD / 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2002 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2003 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2004 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2005 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2006 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2007 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2008 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2009 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2010 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS 2011 Ford Ranger 4WD Ratio: 3.55; Dana 35, 7.562 Inch Ring Gear, IFS
