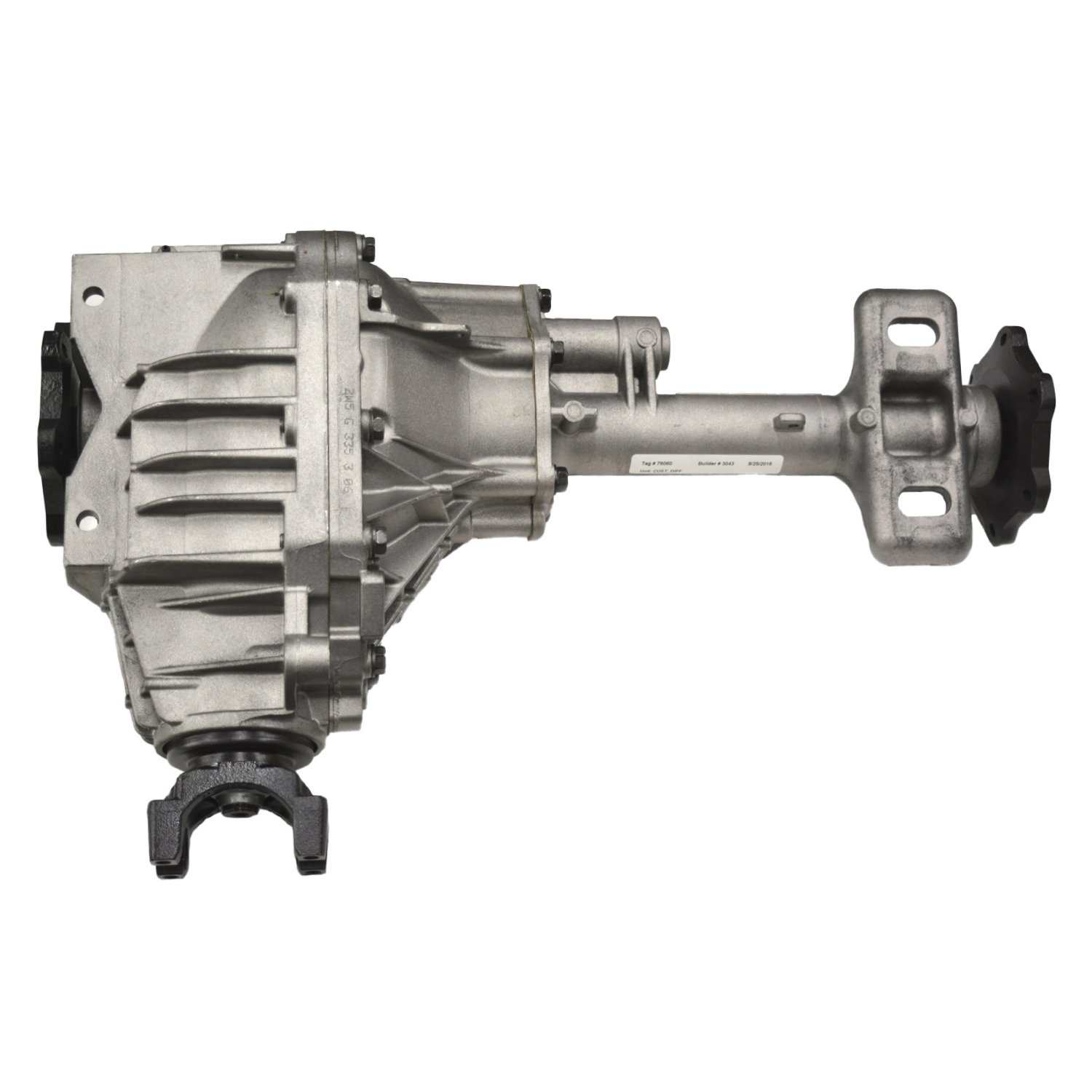

Cadillac, GMC (6.2 - AWD) Drive Axle Assembly - Front - Zumbrota Drivetrain - RAA440-130

Rear Axle Assembly
RAA440-130
Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6
,and,07,12,3.42,440-130,8.25IFS,ASSY,AWD,AXLE,DIFFS,ESCALADE,FD1023C,GM,RAA,YUKON,
Reman Axle Assy for GM 8.25" 2007-2012 GMC Yukon and Escalade 3.42 , AWD
8.25IFS AXLE ASSY '07-'12 GM YUKON and ESCALADE 3.42, AWD
8.25IFS AXLE Assembly 07-12 GM YUKON and ESCALADE 3.42 , AWD .
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
AWD
34-5/8" Long
3.42 ratio
Tapered Bearing
1/2" Wheel Studs
Need Help?
If you are having trouble choosing the correct Zumbrota part, or experiencing issues during or after installation of this part, our technicians are available to help troubleshoot, please message us directly with questions
Zumbrota Reman Axle Assembly, GM 8.25", 2007-12 Yukon and Escalade 3.42 Ratio, AWD
AWD
34-5/8" Long
3.42 ratio
Tapered Bearing
1/2" Wheel Studs
Axle Type: IFS
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Fluid Capacity: 1.51
Fluid Type: Non-Synthetic 80w-90
Gear Ratio: 3.42
Grade Type: Regular
Pre-Filled Oil: No
Ring Gear Diameter: 8.25

Detailed Fitment Results
Year Make Model Drive Type Fitment Notes 2007 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2007 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2007 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2007 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2007 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2007 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2008 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2009 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2009 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2009 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, With transfercase option NR3 only, Ratio Option GU6 2009 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2009 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2009 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2010 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2010 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2010 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, With transfercase option NR3 only, Ratio Option GU6 2010 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2010 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2010 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2011 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2011 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2011 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, With transfercase option NR3 only, Ratio Option GU6 2011 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2011 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2011 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2012 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2012 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2012 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, With transfercase option NR3 only, Ratio Option GU6 2012 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2012 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2012 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2013 Cadillac Escalade ESV AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2013 Cadillac Escalade EXT AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2013 Cadillac Escalade AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, With transfercase option NR3 only, Ratio Option GU6 2013 GMC Sierra 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2013 GMC Yukon AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6 2013 GMC Yukon XL 1500 AWD Ratio: 3.42; GM 8.25 Inch Ring Gear, IFS, Ratio Option GU6
