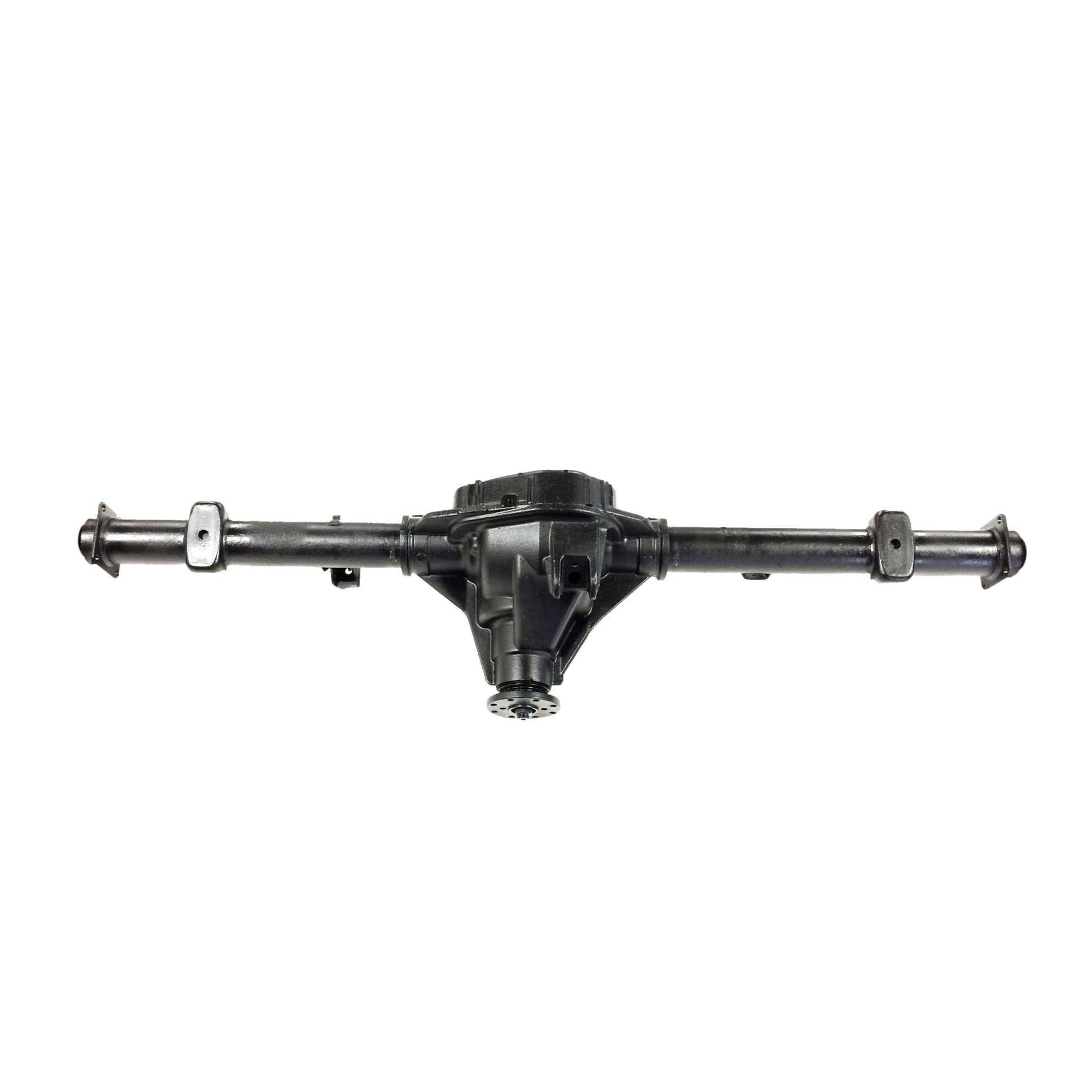

00-03 Ford F-150 (Disc) Differential - Rear - Zumbrota Drivetrain - RAA435-2021H

Rear Axle Assembly
RAA435-2021H
Ratio: 3.55; Ford 9.75 Inch Ring Gear, Rear Disc Brakes, 14 mm Wheel Studs, 1.71 Inch Diameter Wheel Bearing Surface On Axle Shaft, Straight Tube Housing, Tag Numbers: S942A, V942B, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
,*CHECK,*CHECK,00,00,03,03,3.55,3.55,435-2021H,9.75,9.75,ASSY,ASSY,AXLE,AXLE,DIFFS,DISC,DISC,F150,F150,FORD,FORD,RAA,RAA,REAR,REAR,REMAN,TAG*,TAG*,
Reman Axle Assembly for 9.75" 00-03 F150 3.55 , Rear Disc *Check Tag*
9.75" REMAN AXLE ASSY '00-'03 FORD F150 3.55, REAR DISC *CHECK TAG*
9.75" AXLE Assembly 00-03 F150 3.55 , REAR DISC ~CHECK TAG~ .
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Reman Axle Assy Ford 9.75" 00-03 F150 3.55 Ratio, Rear Disc *Check Tag*
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Axle Type: Semi Floating
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Cover Included: Yes
Fluid Capacity: 3.5
Fluid Included: No
Gear Ratio: 3.55
Grade Type: Regular
Mounting Hardware Included: No
Pre-Filled Oil: No
Ring Gear Diameter: 9.75

Detailed Fitment Results
Year Make Model Fitment Notes 2000 Ford F-150 Ratio: 3.55; Ford 9.75 Inch Ring Gear, Rear Disc Brakes, 14 mm Wheel Studs, 1.71 Inch Diameter Wheel Bearing Surface On Axle Shaft, Straight Tube Housing, Tag Numbers: S942A, V942B, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2001 Ford F-150 Ratio: 3.55; Ford 9.75 Inch Ring Gear, Rear Disc Brakes, 14 mm Wheel Studs, 1.71 Inch Diameter Wheel Bearing Surface On Axle Shaft, Straight Tube Housing, Tag Numbers: S942A, V942B, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2002 Ford F-150 Ratio: 3.55; Ford 9.75 Inch Ring Gear, Rear Disc Brakes, 14 mm Wheel Studs, 1.71 Inch Diameter Wheel Bearing Surface On Axle Shaft, Straight Tube Housing, Tag Numbers: S942A, V942B, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2003 Ford F-150 Ratio: 3.55; Ford 9.75 Inch Ring Gear, Rear Disc Brakes, 14 mm Wheel Studs, 1.71 Inch Diameter Wheel Bearing Surface On Axle Shaft, Straight Tube Housing, Tag Numbers: S942A, V942B, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
