Chevrolet, Pontiac (3.8, 5.7) Differential - Rear - Zumbrota Drivetrain - RAA435-1933A

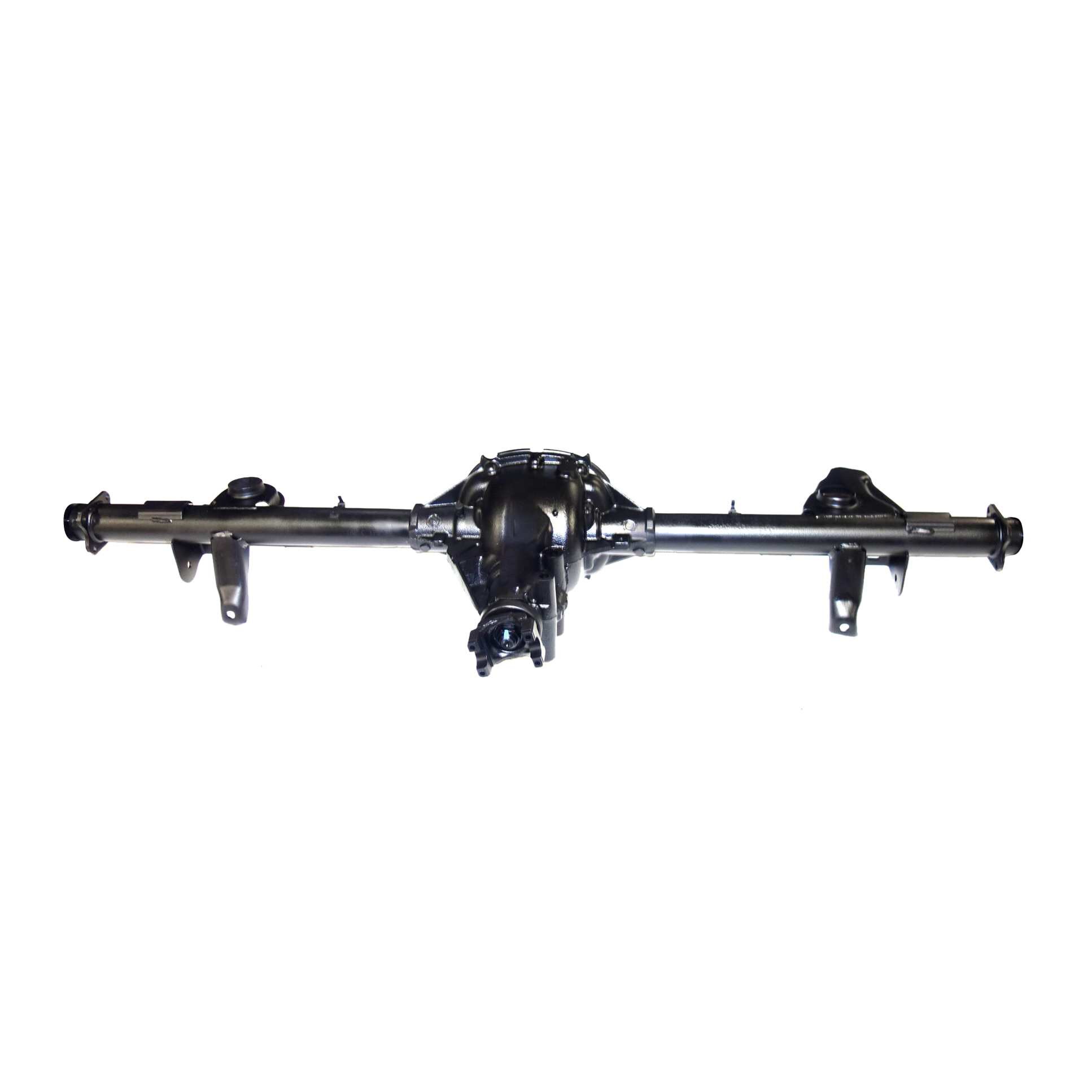

Rear Axle Assembly
RAA435-1933A
Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
,and,02,2.73,435-1933A,7.5,98,ASSY,AXLE,CAMARO,CONTROL,DIFFS,FIREBIRD,GM,RAA,REMAN,TRACTION,W/O,
Reman Axle Assy GM 7.5" 98-02 F Body 5.7L w/o Trac-Control and all 3.8L, 2.73 Open
Remanufactured Rear Axle Assembly, GM 7.5", 1998-02 Camaro and Firebird, 5.7L w/o Traction Control and All 3.8L, 2.73 Ratio, Open
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
GM 7.6 Inch Ring Gear
Ratio: 2.73, Ratio Option GU2, Without Posi Traction
5.7L Without Traction Control Option NW9 and All 3.8L (with or without tranction control)
Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
GM 7.6 Inch Ring Gear
Ratio: 2.73, Ratio Option GU2, Without Posi Traction
5.7L Without Traction Control Option NW9 and All 3.8L (with or without tranction control)
Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Axle Type: Semi Floating
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Cover Included: Yes
Fluid Capacity: 1.75
Fluid Included: No
Gear Ratio: 2.73
Grade Type: Regular
Mounting Hardware Included: No
Pre-Filled Oil: No
Ring Gear Diameter: 7.5

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 1998 Chevrolet Camaro Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1998 Chevrolet Camaro Z28 / Z28 SS Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1998 Pontiac Firebird Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1998 Pontiac Firebird Formula / Trans Am Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1999 Chevrolet Camaro Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1999 Chevrolet Camaro Z28 / Z28 SS Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1999 Pontiac Firebird Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1999 Pontiac Firebird Formula / Trans Am Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2000 Chevrolet Camaro Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2000 Chevrolet Camaro Z28 / Z28 SS Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2000 Pontiac Firebird Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2000 Pontiac Firebird Formula / Trans Am Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2001 Chevrolet Camaro Base Ratio: 2.73; GM 7.6 Inch Ring Gear, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2001 Chevrolet Camaro Z28 / Z28 SS Ratio: 2.73; GM 7.6 Inch Ring Gear, Without Traction Control Option NW9, Ratio Option GU2, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 2001 Pontiac Firebird Bas…
