94-99 Dodge Ram 2500 Base (4WD) Differential - Rear - Zumbrota Drivetrain - RAA435-1776A

Rear Axle Assembly
RAA435-1776A
,2500,2WD,3.54,435-1776A,94,99,ASSY,AXLE,CHY,D60,DIFFS,RAA,RAM,REAR,REMAN,SHOCKS,W/STAGGERED,

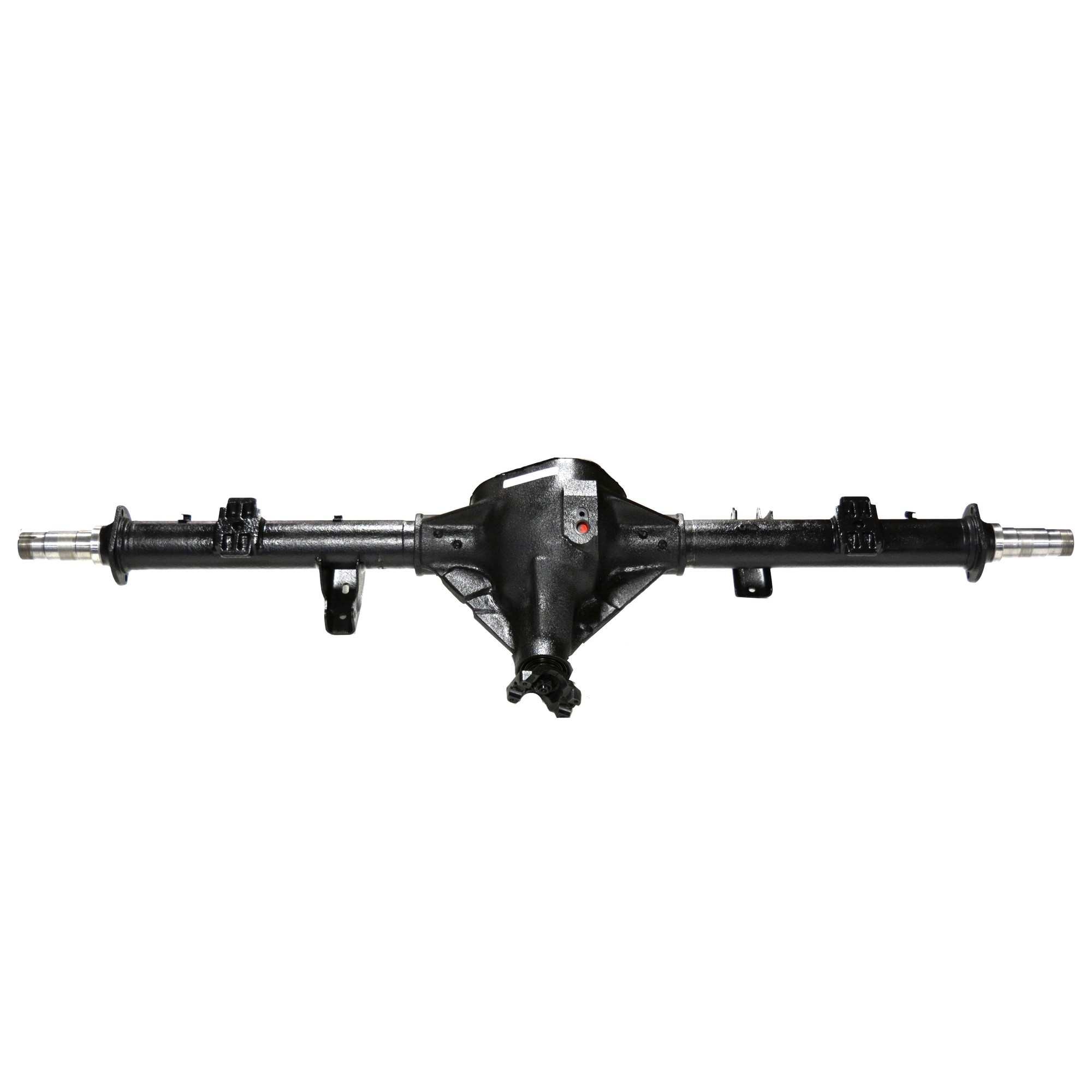

Reman Axle Assy for Dana 60 94-99 Ram 2500 3.54 , 2wd with Staggered Shocks
D60 REAR REMAN AXLE ASSY '94-'99 CHY RAM 2500 3.54, 2WD, W/STAGGERED SHOCKS
Dana 60 REAR REMAN AXLE Assembly 94-99 Chrysler RAM 2500 3.54 , 2WD , W/STAGGERED SHOCKS .
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Reman Axle Assy Dana 60 94-99 Dodge Ram 2500 3.54 Ratio, 2wd w/ Staggered Shocks
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Axle Type: Full Floating
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Cover Included: Yes
Fluid Included: No
Gear Ratio: 3.54

Detailed Fitment Results
Year Make Model Sub Model Drive Type Fitment Notes 1994 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, From 9 / 24 / 93, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1995 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1996 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1997 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1998 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts 1999 Dodge Ram 2500 Base 4WD Ratio: 3.55; Dana 60, 9.75 Inch Ring Gear, 10 Bolt Cover, 8800 GVW, Staggered Shocks, 4x4, Without Posi Traction, Does Not Include Hubs, Brakes, Backing Plates, Or Axle Shafts
