09-15 Jeep Wrangler Differential - Front - Zumbrota Drivetrain - RAA434-116C

Front Axle Assembly
RAA434-116C
Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes
,09,10,4.11,434-116C,ASSY,AXLE,D44,DIFFS,FRONT,JEEP,LOCKER,RAA,W/ELEC,WRANGLER,

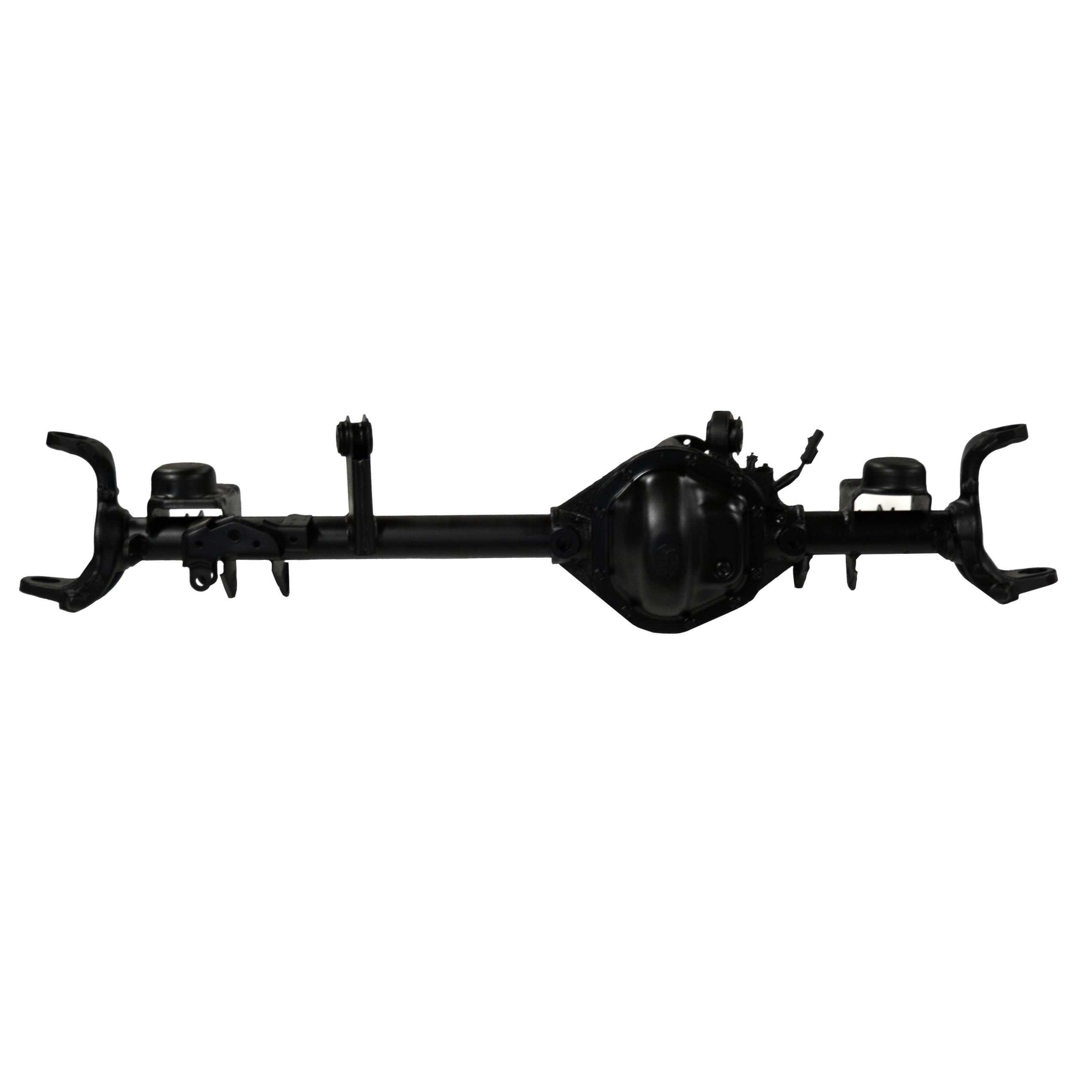

Reman Front Axle Assembly, Dana 44, 09-10 Jeep Wrangler, 4.10 Ratio, W/ E-Locker
Remanufactured Front Axle Assembly, Dana 44, 09-10 Jeep Wrangler, 4.10 Ratio, with Electric Locker
Zumbrota Drivetrain Complete Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each complete axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for complete axle assembly remanufacturing.
Ratio: 4.10, Electronic Limited Slip
Dana 44, 8.5 Inch Ring Gear
Left Hand Drive
includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes
All tubes are inspected to ensure they are straightened to OEM specifications.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
Ratio: 4.10, Electronic Limited Slip
Dana 44, 8.5 Inch Ring Gear
Left Hand Drive
includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes
All tubes are inspected to ensure they are straightened to OEM specifications.
100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Cover Included: Yes
Fluid Capacity: 1.6
Gear Ratio: 4.10
Grade Type: Regular
Mounting Hardware Included: No
Pre-Filled Oil: No
Ring Gear Diameter: 8.5

Detailed Fitment Results
Year Make Model Sub Model Body Type Drive Type Bed Length (in) Fitment Notes 2009 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2010 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2011 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2012 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2013 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2014 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes 2015 Jeep Wrangler Rubicon / Unlimited Rubicon Ratio: 4.10; Dana 44, 8.5 Inch Ring Gear, Left Hand Drive, Electronic Limited Slip, includes main housing and internals only, no axles, ball joints, spindles, steering components, or brakes
