17-19 Ford F-250/F-350 Super Duty 6 Inch Lift Kit 4 Inch Rear Block & AAL Diesel 2 Leaf Main Nitro Shocks - Zone Offroad - ZONF110N

Take your Super Duty to new heights with this 6 Inch lift kit from Zone Offroad. Kits include everything needed to reliably lift your truck and the capability to run up to 37 Inch tires, including coil springs, radius arm drop brackets, steering correction and rear lift blocks or optional add-a-leafs to get the stance and performance you want.

Upgrade your stock shocks with Nitro Series Gas Shocks, or Fox 2.0 Adventure Series for even greater performance and control. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Get the look, performance, and capability your truck deserves!


Quick Specs:


Front Lift Height 6 Inch

Material Steel

Front Lift Method Coil Springs

Rear Lift Method Add-a-Leaf & Block

Lift Type Lift Kit

Wheel Size 20 x 9

Back Spacing 4.5 Inch

Max Tire Size 37 x 12.5

Wheel Size 2 18 x 9

Back Spacing 2 4.5 Inch

Max Tire Size 2 37 x 12.5

Wheel Size 3 Inch17 x 9

Back Spacing 3 4.5 Inch

Max Tire Size 3 37 Inch x 12.5


Features:


High strength front coil springs improve ride quality

Radius arm drop brackets to correct caster and maintain suspension geometry

Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle

Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles

Replacement 3 Inch rear lift block for a leveled stance, or optional upgrade to rear add-a-leaf for 4 Inch net lift and improved performance

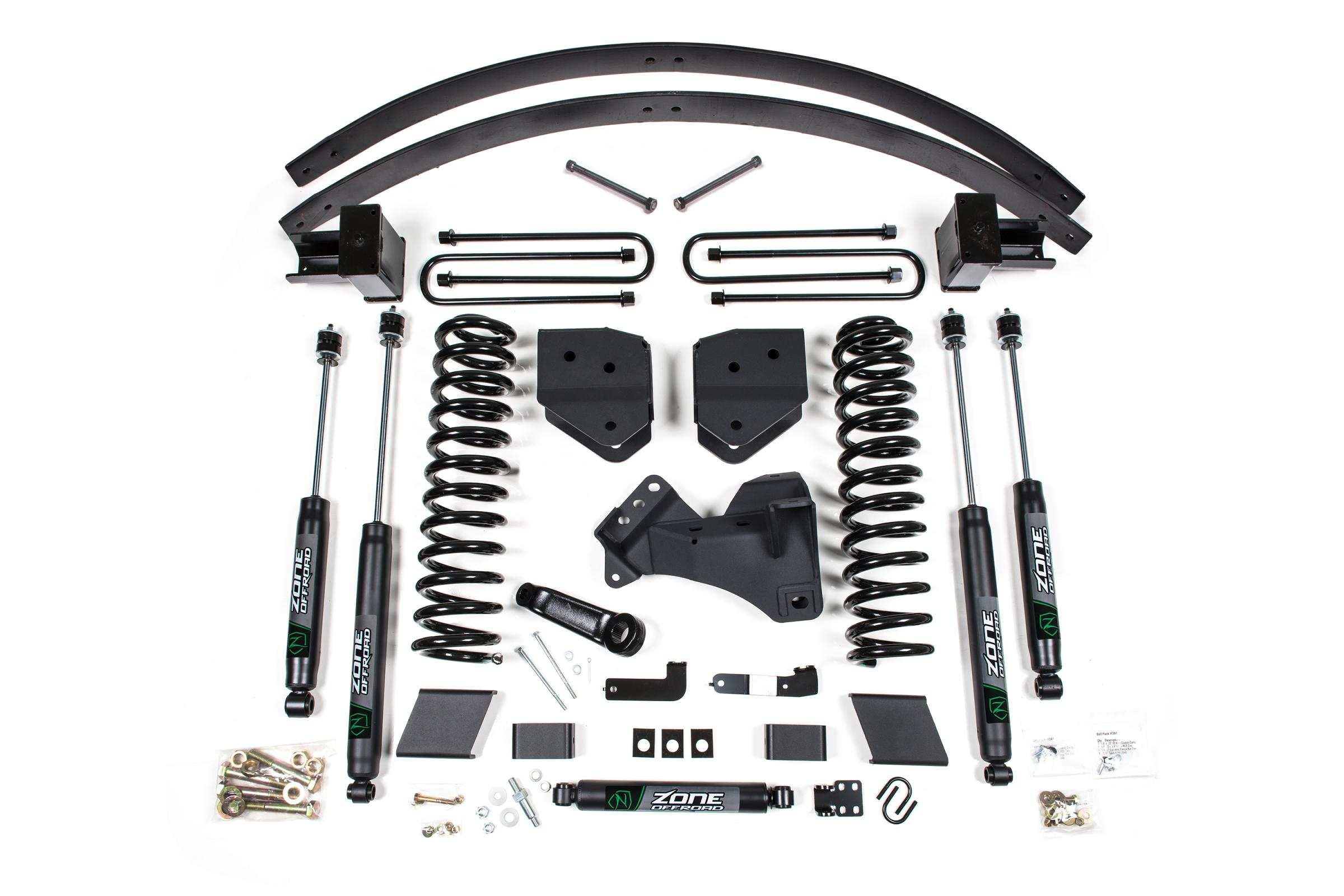

Kit Components:


ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194

ZON7718 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595590

ZON7752 Nitro- 26.20 x 15.60 x 2-3/8 S1/EB1 2 711745595699

ZONF1605 20-22 F250/F350 6 Inch Radius Arm Drop Front Box Kit 1 711745606067

ZONF1609 2017 F250 Rear 6 Inch Block Kit 1 711745599338

ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369

ZONF6208 2017 F250 Rear Add-A-Leaf Box Kit 1 711745599949
