Zone Forged Drop Pitman Arm - Zone Offroad - ZOND8405

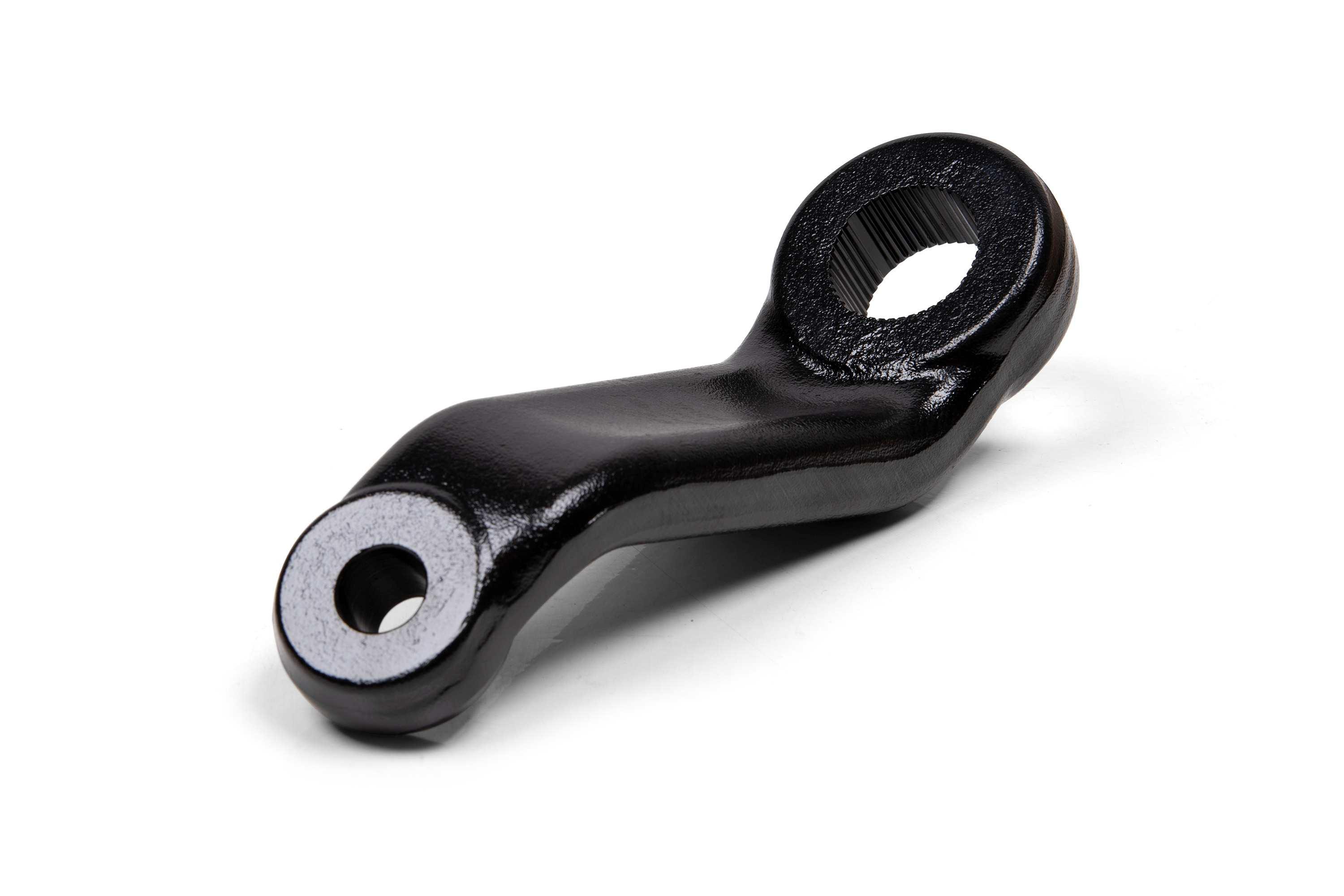

Zone Offroad offers a high strength forged pitman arm for the late model RAM HD trucks. Designed for use on 4"+ of lift this drop pitman arm is designed to improve steering angles for improved handling. Designed to be used in combination with a track bar bracket to keep drag link and track bar angles in phase this pitman arm is a bolt-on upgrade for lifted 2014-2022 RAM 2500/2013-2022 Ram 3500 trucks using the factory pitman arm.
4" drop to improve the drag link operating angle on lifted trucks
Forged design and machined for a precision fit
Factory replacement and should be used in combination with a track bar bracket to keep steering in phase
Finished in a durable black e-coating


Detailed Fitment Results
Year Make Model Drive Type 2013 Ram 3500 4WD 2014 Ram 3500 4WD 2014 Ram 2500 4WD 2015 Ram 2500 4WD 2015 Ram 3500 4WD 2016 Ram 3500 4WD 2016 Ram 2500 4WD 2017 Ram 2500 4WD 2017 Ram 3500 4WD 2018 Ram 3500 4WD 2018 Ram 2500 4WD 2019 Ram 3500 4WD 2019 Ram 2500 4WD 2020 Ram 2500 4WD 2020 Ram 3500 4WD 2021 Ram 2500 4WD 2021 Ram 3500 4WD 2022 Ram 3500 4WD 2022 Ram 2500 4WD
