Zone Transfer Case Indexing Ring Kit - Zone Offroad - ZOND5623

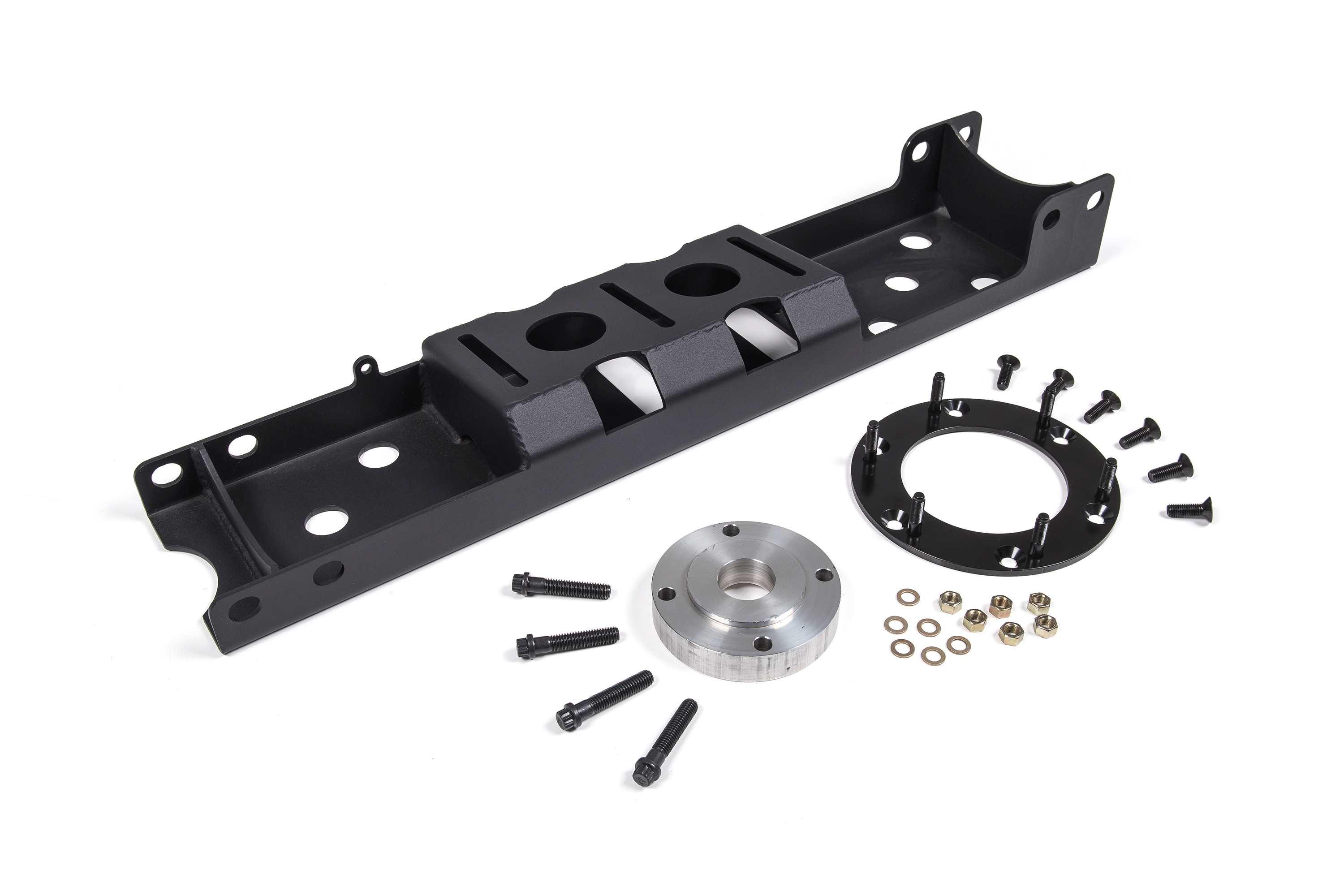

This transfer case indexing kit repositions the front output flange and helps eliminate driveline vibrations that can occur at taller lift heights. The thinner design maximizes spline engagement and improves front driveline angles on 6-bolt transfer case equipped Ram trucks allowing for re-use of the factory front driveshaft (with help from a spacer) on 4-6.5" lifts. Also included is a bolt-in replacement crossmember with an integrated transmission mount for improved front driveshaft clearance.
Ring indexing the transfer case to improve front driveline operating angle once lifted
High strength low profile transmission crossmember bolts-in for improved driveline clearance
Ultra-thin design to maintain optimal spline engagement
Strong ARP-brand mounting studs ensure fitment
CNC machined billet aluminum front driveshaft spacer for proper engagement
Compatible with most 4-8" lift kits to eliminate front driveline vibrations


Detailed Fitment Results
Year Make Model 2013 Ram 3500 2014 Ram 3500 2014 Ram 2500 2015 Ram 2500 2015 Ram 3500 2016 Ram 2500 2016 Ram 3500 2017 Ram 3500 2017 Ram 2500 2018 Ram 2500 2018 Ram 3500
