13-18 RAM 3500 4.5 Inch Replacement Radius Arm Lift Kit Diesel Fox Shocks - Zone Offroad - ZOND54F

Take your RAM 3500 to new heights with this 4.5 Inch lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 37 Inch tires.


Quick Specs:


Front Lift Height 4-5 Inch

Rear Lift Height 3 Inch


Shocks:


FOX 2.0 Adventure Series

2-inch diameter steel body

Internal floating piston (IFP) monotube design

Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

Race-developed high-flow piston design

Application-specific valving to maximize performance

Long-lasting silver coated finish





Features:


Progressive rate front coil springs improve ride quality and offroad performance

HD radius arm to correct caster while maximizing ground clearance

Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle

Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles

Replacement rear lift blocks and u-bolts to lift and level the stance

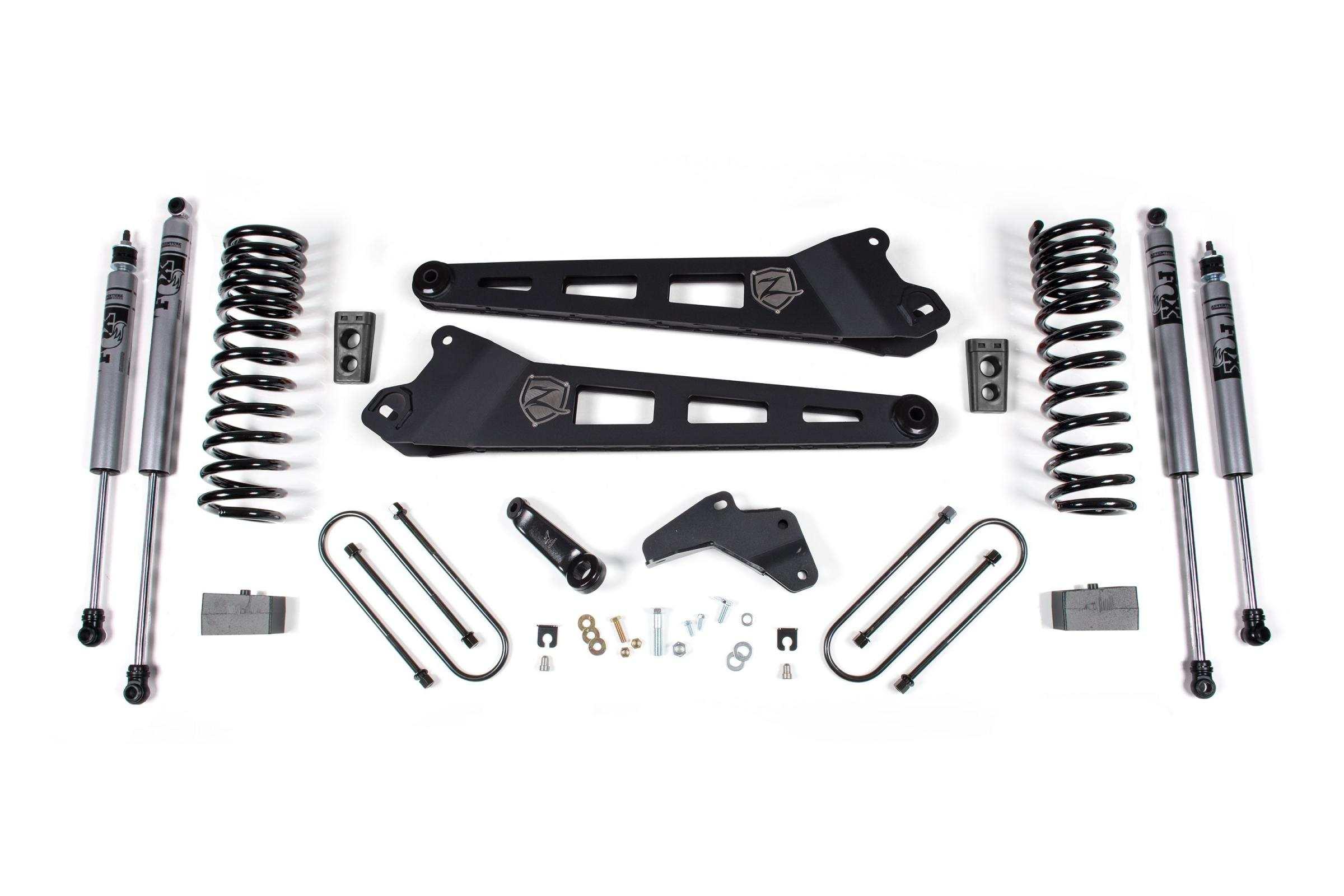

Kit Components:


FOX98450742 (x2)

FOX98450759 (x2)

ZOND1307

ZOND1402

ZOND1410 (x2)

ZOND3401

ZOND3402
