14-18 RAM 2500 6.5 Inch Lift Kit Diesel Fox Shocks - Zone Offroad - ZOND53F

Take your RAM 2500 to new heights with this 6.5 Inch lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance.

Get the look, performance, and capability your truck deserves with clearance for up to 35 Inch tires.


Quick Specs:


Front Lift Height 6.5 Inch

Rear Lift Height 4.5 Inch


Shocks:


FOX 2.0 Adventure Series

2-inch diameter steel body

Internal floating piston (IFP) monotube design

Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

Race-developed high-flow piston design

Application-specific valving to maximize performance

Long-lasting silver coated finish





Features:


Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and levelign the stance

Radius arm drop brackets to correct caster and improve suspension geometry

Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle

Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles

Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

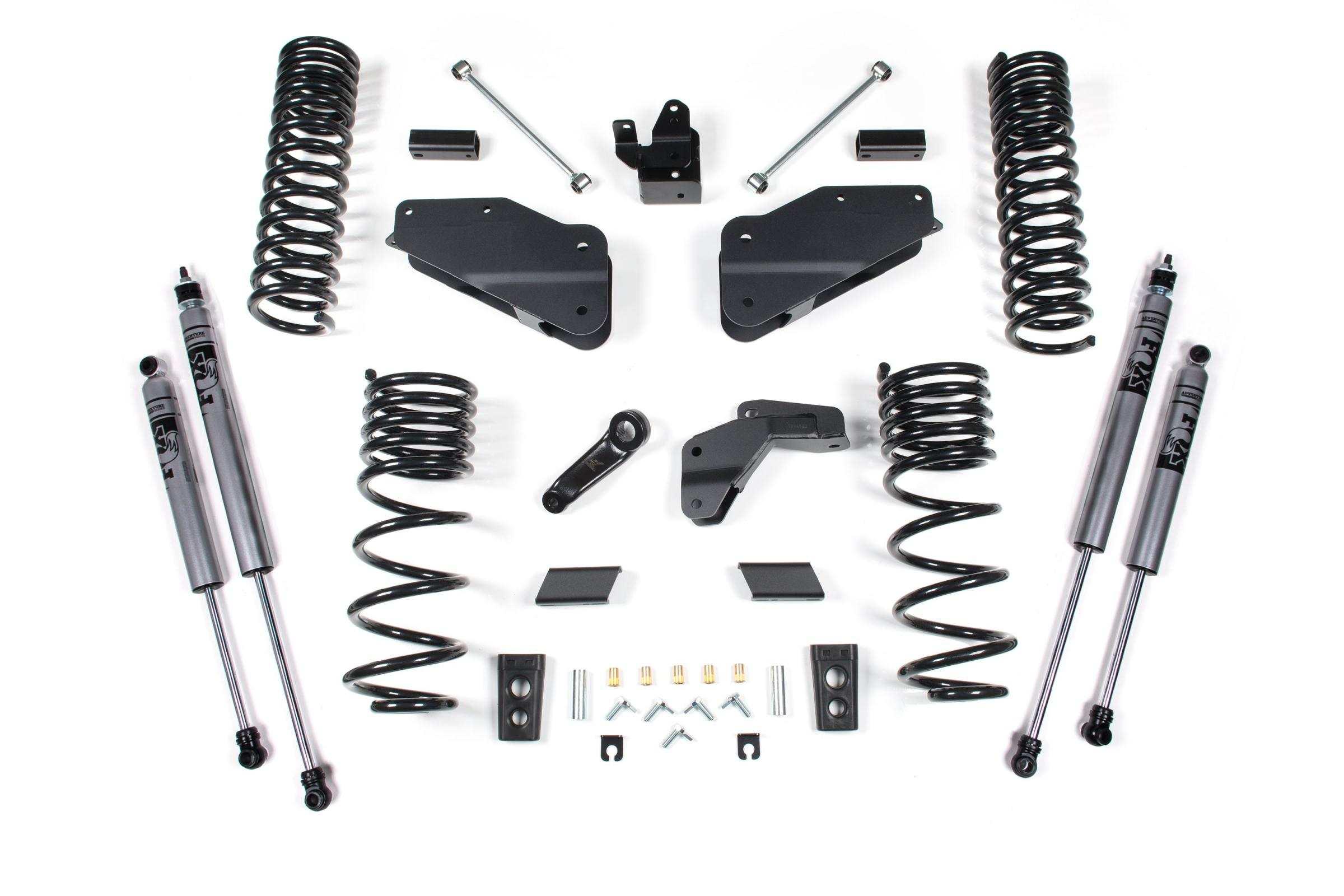

Kit Components:


FOX98450742 (x2)

FOX98450756 (x2)

ZOND1459

ZOND1601

ZOND3409 (x2)

ZOND3602 (x2)
