Zone 2.5" Adventure Series Leveling Kit - Zone Offroad - ZOND48

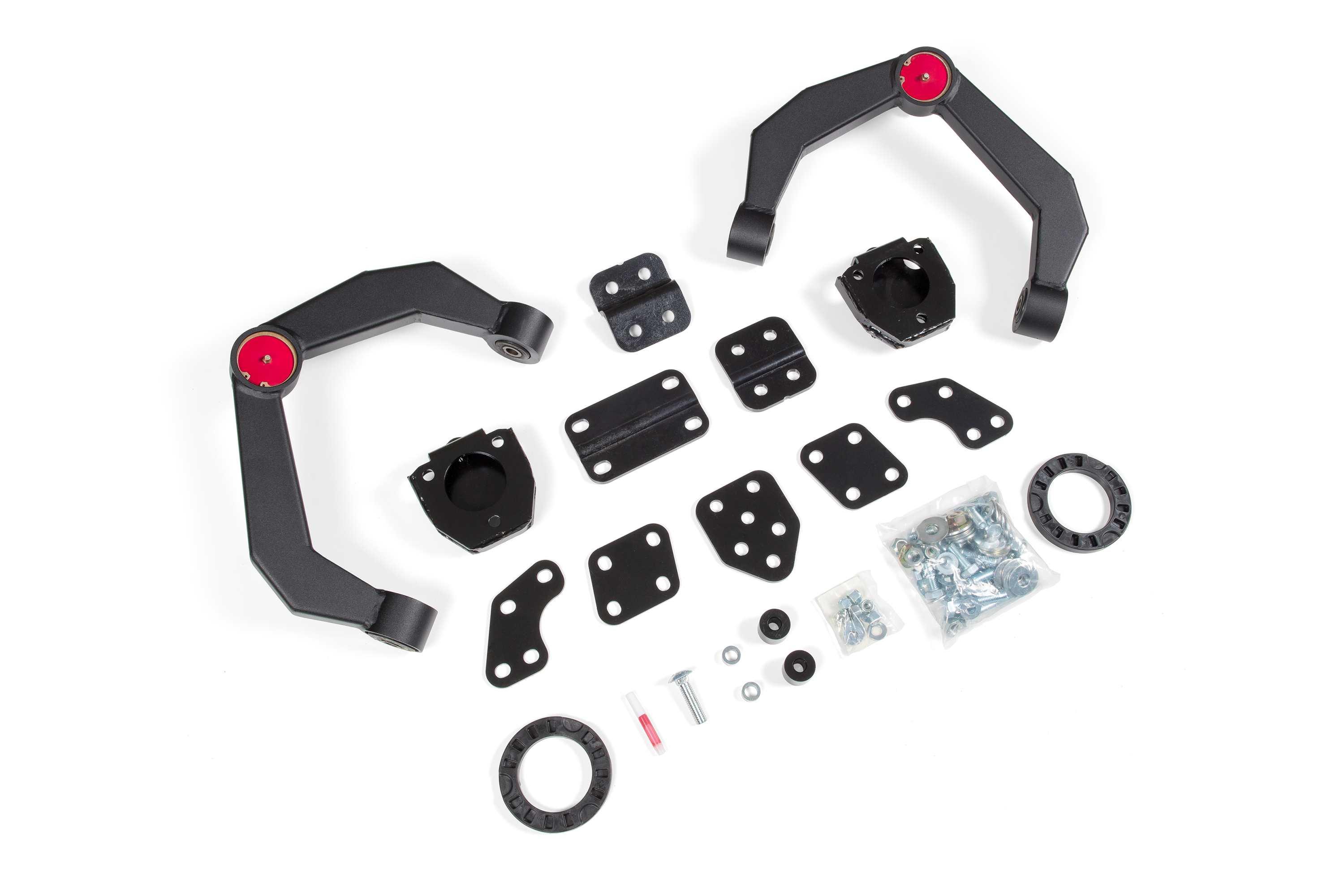

Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers and preload spacers designed for 2.5" of lift these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs). These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Also included are differential relocation brackets to correct CV operating angles.
Combination upper strut spacer and preload spacer to ensure proper lift height
UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road
Can be installed as a 2" or 2.5" kit
Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
Detailed easy to follow installation instructions included
Limited Lifetime Warranty
Upper strut spacer is pitched offset and rotated to ensure proper fitment and positioning with the factory strut
Powder-coated steel upper strut spacers for long lasting durability
Fully welded heavy-duty upper control arms that dwarf the factory arms
CNC-machined UCA bushing and ball joint cups
OE rubber bushings and greaseable factory style ball joints for quiet reliable and low maintenance operation
Improved UCA range of motion compared to stock arms
Full 2" differential drop included to achieve proper CV angles at ride height and to eliminate "lobing" of the CVs at full droop
UCA ball joint position adjusted to keep arm in a neutral position with 2-3" of lift


Detailed Fitment Results
Year Make Model Drive Type 2006 Dodge Ram 1500 4WD 2007 Dodge Ram 1500 4WD 2008 Dodge Ram 1500 4WD 2009 Dodge Ram 1500 4WD 2010 Dodge Ram 1500 4WD 2011 Ram 1500 4WD
