Striker Complete 2 Inch Lift Kit Sprinter 2500 AWD (2023-Up) - Van Compass - 7219

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible.

Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation.

With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

Features and Benefits:


With proper wheel offset and fender trimming, fitment of a 35 x 12

Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible

50 tire is possible, for a huge increase in traction and ground clearance

At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or CAN over-compression on axle articulation

Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes

The Van Compass Striker AWD lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability


Associated Comments:


Recommended Wheel Size: 17 Inch x 8.5 Inch, +38MM offset

Wheel Fitment Note: AWD vans require fitment of a wheel with 6 Inch backspacing or less. For a 17 Inch x8 Inch wheel, this corresponds with a +38MM offset. Wheels with a greater offset like +52MM, or more backspacing like 6.5 Inch, will rub the tire on the shock reservoir when the steering is turned.


Details:


Lift Height: 2.0 Inch

Grade Type: Regular

Hardware Included: Yes

Recommended Shop Labor Time: 13 Hours

Maximum Lift: 2.0 Inch

Shocks Included: No

Strut(s) Included: No

Bushings Included: No

Maximum Lift Front: 2 Inch

Maximum Lift Rear: 2 Inch

Leaf Spring Color: Black

Drive: AWD

Warranty: 60 Days-Finish Limited Lifetime-Structural

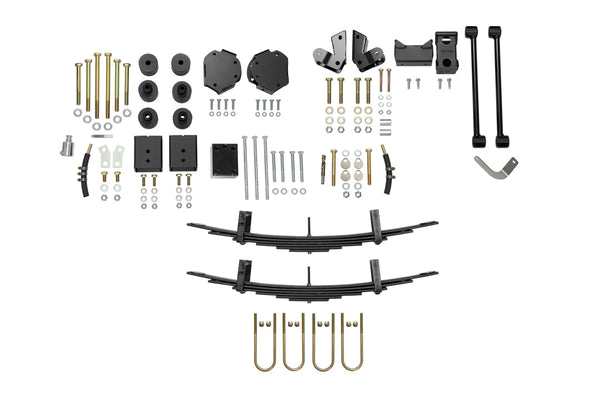

Van Compass Striker Complete 2 Inch Lift Kit - Sprinter AWD, 2500 Only
