Stage 4 Topo 2.0 System Mid/Heavy Weight Tune Ford Transit AWD (2020+ Single Rear Wheel) - Van Compass - 7214-MH

Improve the ride quality and stance of your Ford Transit AWD with the Stage 4 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the AWD Transit platform.

Our Topo 2 Inch lift kit includes a precision engineered 0.75 Inch lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25 Inch of lift, with a corresponding increase in compression travel.

A 5-leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15 Percent spring rate increase in the rear while lifting the back of the van anywhere from 2.0 Inch to 2.5 Inch depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride.

Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

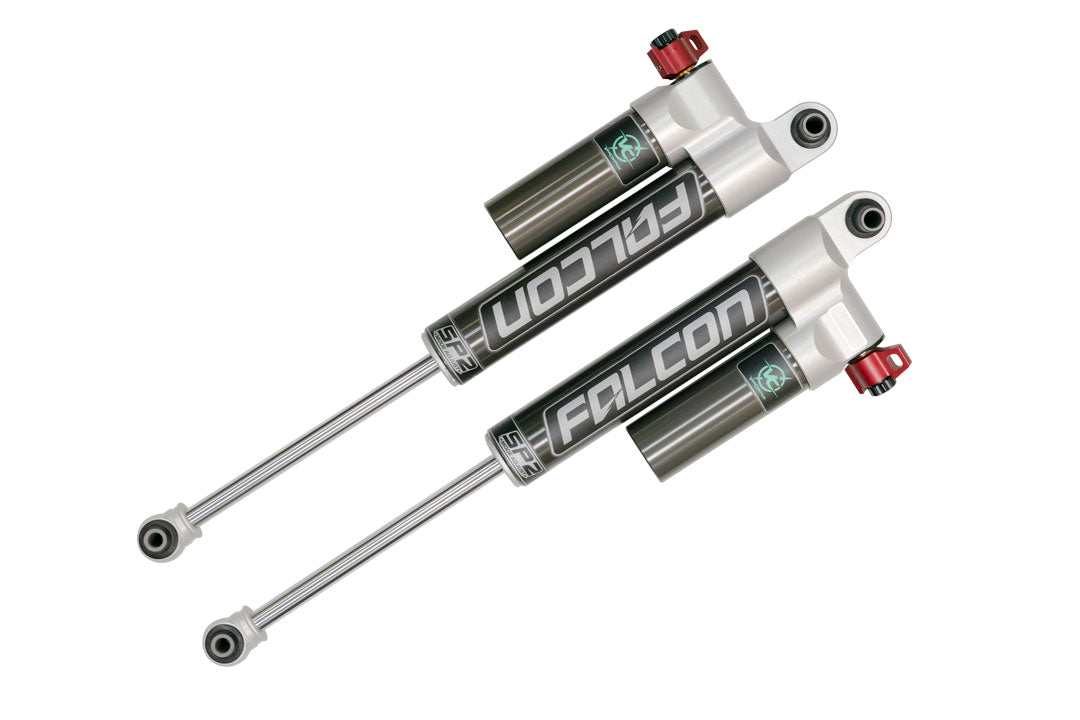

Adjustable Falcon 3.3 Fast Adjust Shocks feature a huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters.

A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.

Features and Benefits:


Aggressive, 2 Inch taller stance allows larger tires to smooth out terrain

Increased approach, break over and departure angles

VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings

Mid/Heavy weight shock tune for vans over 8500 lbs

Increased rear spring rate fights sag

Enhanced cornering stability and reduced wind sway

More effective control over large and small bumps

Improved handling feel on rough roads and broken pavement

Increased bottom out resistance


Associated Comments:


Note: Bilstein B6 strut are not included with AWD systems, their added length CAN cause CV boot failure

Note: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.


Details:


Lift Height: 2.0 Inch

Grade Type: Performance

Hardware Included: Yes

Recommended Shop Labor Time: 8.25 Hours

Maximum Lift: 2.0 Inch

Shocks Included: Yes

Strut(s) Included: No

Bushings Included: Yes

Leaf Spring Leaf Quantity: 5

Shock Tune: Mid/Heavy

Maximum Lift Front: 2 Inch

Maximum Lift Rear: 2 Inch

Leaf Spring Color: Black

Spring Material: Steel

Coil Spring Color: Blue

Coils Quantity Front: 2

Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural


Van Compass Stage 4 Topo 2 Inch Lift Kit - Ford Transit AWD, Mid/Heavy Tune
