Randy's Worldwide : Van CompassSKU: BSD-VAN-7205-MH
Stage 6.3 Drw 2 Inch Lift Falcon 3.3 Mid/Heavy Tune Opti-Rate Sprinter 3500/3500XD (2019-2022) - Van Compass - 7205-MH
$10,141.95
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
The Stage 6.3 Dually system fills out the top tier of our Sprinter 4X4 suspension kits. This apex offering combines adjustability and adaptability, stability and compliance, clearance and performance.

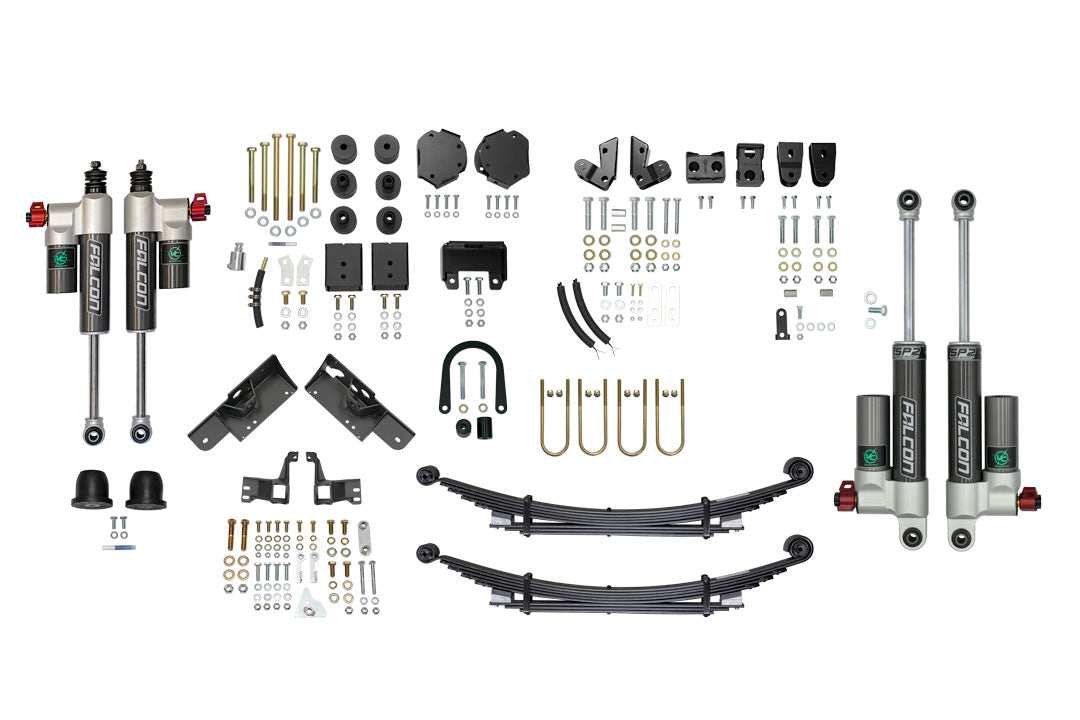

Our innovative Striker 2 Inch lift kit includes all the necessary components to properly increase the ride height on your Sprinter. By paying careful attention to the shock tuning and preserving the original suspension geometry, we can deliver all the gains a lifted vehicle offers without any penalty to handling, stability or comfort.
The added ride height allows room for larger tires, delivering a more aggressive stance, and improving overall ground clearance.
The cornerstone of this handling upgrade kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters.
A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.
The Opti-Rate leaf spring pack offers flexibility for different van weights, restores lost ride height and corrects sag. Designed around the ability to fit multiple rear axle weights, they maintain factory wheel position and leaf spring geometry while restoring suspension up-travel on a heavy van.
Included U-bolts ensure a quick and easy installation, and glide pads on the tips ensure quiet operation, just like your OEM springs.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.
Details:
Lift Height: 2.0 Inch
Grade Type: Performance
Recommended Shop Labor Time: 17.5 Hours
Bracket Material: Steel
Maximum Lift: 2.0 Inch
Shocks Included: Yes
Strut(s) Included: No
Shock Tune: Mid/Heavy
Drive: 4WD
Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural
Features and Benefits:
VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
Increased approach, break over and departure angles
Enhanced cornering stability and reduced wind sway
Passenger vans that want a more aggressive stance
Aggressive, 2 Inch taller stance allows larger tires to smooth out terrain
Users who want the most capability and adjustability for their vans
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance
Adventure and conversion vans that need more ground clearance
Increased spring rate to counter sag
Our innovative Striker 2 Inch lift kit includes all the necessary components to properly increase the ride height on your Sprinter. By paying careful attention to the shock tuning and preserving the original suspension geometry, we can deliver all the gains a lifted vehicle offers without any penalty to handling, stability or comfort.
The added ride height allows room for larger tires, delivering a more aggressive stance, and improving overall ground clearance.
The cornerstone of this handling upgrade kit is the 4-corner, adjustable Falcon 3.3 Fast Adjust Shocks with their huge range of compression adjustment available at the simple flip of a large, easily accessed Fast Adjust knob. This allows you to quickly adjust from the softest to firmest settings over a significantly larger range than the competition's smaller adjusters.
A larger range of adjustment means the shocks are more effective and adaptable to multiple modes of use.
The Opti-Rate leaf spring pack offers flexibility for different van weights, restores lost ride height and corrects sag. Designed around the ability to fit multiple rear axle weights, they maintain factory wheel position and leaf spring geometry while restoring suspension up-travel on a heavy van.
Included U-bolts ensure a quick and easy installation, and glide pads on the tips ensure quiet operation, just like your OEM springs.
Our progressive foam Bump Buddy replacement jounce bumpers replace your hard factory rubber bump stops, adding improved spring curve progression, reducing sway, and increasing bottom out resistance without any unnecessary clunking or harshness.
Details:
Lift Height: 2.0 Inch
Grade Type: Performance
Recommended Shop Labor Time: 17.5 Hours
Bracket Material: Steel
Maximum Lift: 2.0 Inch
Shocks Included: Yes
Strut(s) Included: No
Shock Tune: Mid/Heavy
Drive: 4WD
Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural
Features and Benefits:
VC tuned Falcon 3.3 Adjustable shocks with 10 intuitive firmness settings
Increased approach, break over and departure angles
Enhanced cornering stability and reduced wind sway
Passenger vans that want a more aggressive stance
Aggressive, 2 Inch taller stance allows larger tires to smooth out terrain
Users who want the most capability and adjustability for their vans
More effective control over large and small bumps
Improved handling feel on rough roads and broken pavement
Increased bottom out resistance
Adventure and conversion vans that need more ground clearance
Increased spring rate to counter sag
