Randy's Worldwide : Van CompassSKU: BSD-VAN-7128

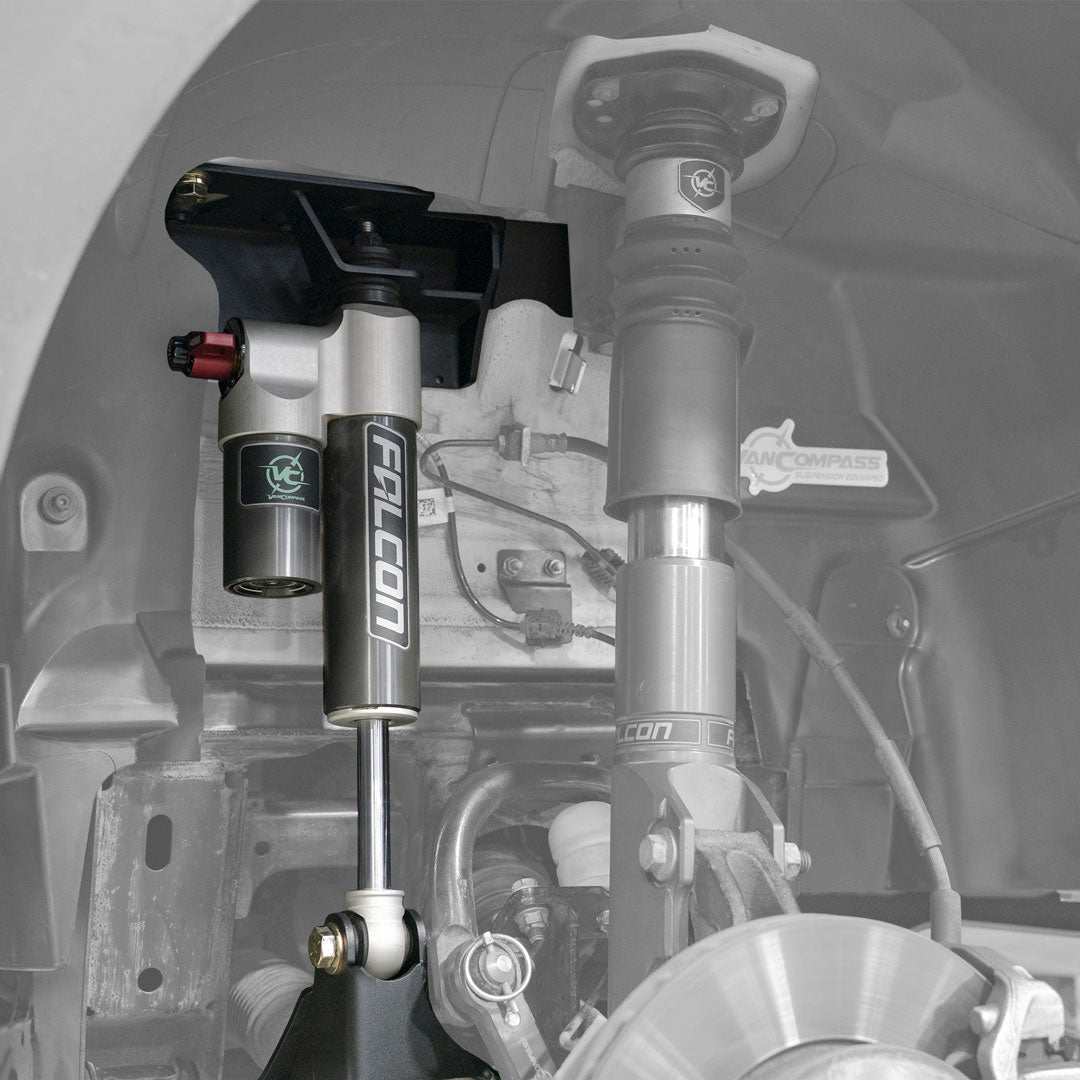

Falcon 3.3 Front Shock Kit With Brackets Sprinter 4X4 Sprinter 2500/3500/3500XD (2015-Up) - Van Compass - 7128
$2,308.26
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
4X4 Sprinters are very capable and versatile vehicles, however many owners have now experienced the stiff factory ride over small bumps and extreme swaying on uneven ruts. Van Compass has developed a custom tuned Falcon shock kit to improve the Sprinters handling both on and off the trail.
Our custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side-to-side sway over uneven surfaces is minimized.
Each set of Falcon shocks are specifically to your van weight range.
Aluminum bodied, 2.315 Inch diameter piggy back reservoir shocks offer a huge range of adjustment. The 3.3 fast adjust knob offer quick and easy compression adjustment when the shock is installed.
Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for driver preference.
Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The shocks are manufactured as left and right pairs.
The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.
Features and Benefits:
High pressure nitrogen charge ensures cavitation free operation
10 compression damping settings with the 3.3 fast adjust knob
Reduced sway and wind buffeting
Full 2 Inch Damper piston (238 Percent increase over stock)
100 Percent bolt on with basic tools
Controls large and small bumps more effectively than factory shocks
Increase in comfort and vehicle control
Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
Enhanced cornering stability
2.3 Inch aluminum body dissipates heat and resists corrosion.
3/4 Inch diameter hard chromed shaft resists impact and corrosion.
Associated Comments:
Recommended Wheel Size: 17 Inch x 8.5 Inch, +45MM offset
Wheel Fitment Note: AWD vans require fitment of a wheel with 6 Inch backspacing or less. For a 17 Inch x8 Inch wheel, this corresponds with a +38MM offset. Wheels with a greater offset like +52MM, or more backspacing like 6.5 Inch, will rub the tire on the shock reservoir when the steering is turned.
Note: Vans equipped with HD Rear Ac Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
Details:
Adjustable: Yes
Adjustable Compression: Yes
Adjustable Rebound: No
Boot Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Monotube
Lower Mount Type: Eyelet
Hardware Included: Yes
Recommended Shop Labor Time: 4 Hours
Shaft Material: Chrome
Bore Diameter: 2 Inch
Reservoir Style: Piggyback
Shaft Diameter: .75 Inch
Shock Absorber Body End Measuring Point: Shoulder Of Stem
Shock Absorber Rod End Measuring Point: Center Of Eyelet
Shock Mounts Included: Yes
Tube Outside Diameter: 2.3 Inch
Upper Mount Type: Stem
Drive: 4WD|AWD
Warranty: 1 Year Shocks 60 Days-Finish Limited Lifetime-Structural
Van Compass Falcon 3.3 Front Shock Kit With Brackets Sprinter 4X4
