Complete Striker 2 Inch Lift Kit Front And Rear Sprinter 2500 4WD (2019-2022) - Van Compass - 7057

The Van Compass Striker 4X4 lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability. Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible.

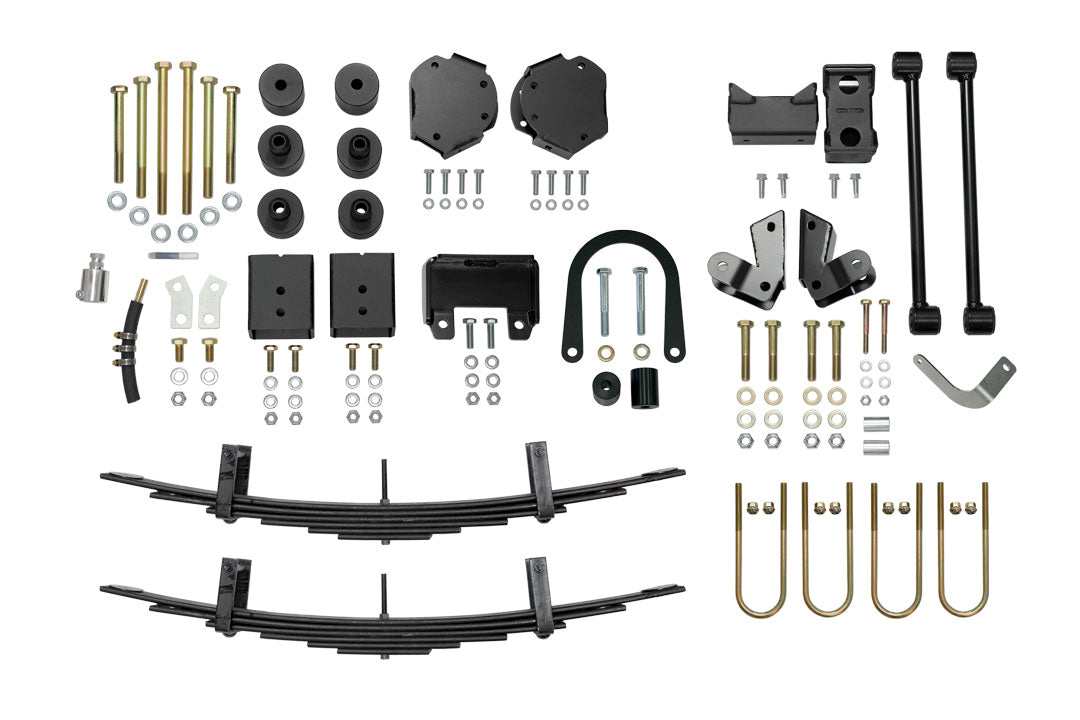

Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes. At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or can over-compression on axle articulation.

With proper wheel offset and fender trimming, fitment of a 35 x 12.50 tire is possible, for a huge increase in traction and ground clearance.

Features and Benefits:


At the rear, a taller version of our Mini Leaf Spring pack is paired with longer sway bar links, shock relocation brackets, and bump stop spacers to ensure that nothing binds, over-extends, or CAN over-compression on axle articulation

Through hours of careful development and design, we've created a system that lifts the van with as few compromises to the original design parameters of the vehicle as possible

With proper wheel offset and fender trimming, fitment of a 35 x 12

50 tire is possible, for a huge increase in traction and ground clearance

The Van Compass Striker 4X4 lift kit creates the clearance needed to fit larger tires and push deeper into back country landscapes with confidence in the increased capability

Using a mix of machined and welded spacers, we move the front subframe to allow for the CVs, tie rods, and control arms to all cycle in their original geometry range set by Mercedes


Details:


Lift Height: 2.0 Inch

Grade Type: Regular

Hardware Included: Yes

Recommended Shop Labor Time: 12 Hours

Maximum Lift: 2.0 Inch

Shocks Included: No

Strut(s) Included: No

Bushings Included: No

Leaf Spring Leaf Quantity: 6

Maximum Lift Front: 2 Inch

Maximum Lift Rear: 2 Inch

Leaf Spring Color: Black

Spring Material: Steel

Drive: 4WD

Warranty: 60 Days-Finish Limited Lifetime-Structural


Van Compass Striker Complete 2 Inch Lift Kit - Sprinter 4X4,2500 Only
