Out of Stock
Randy's Worldwide : Van CompassSKU: BSD-VAN-4109

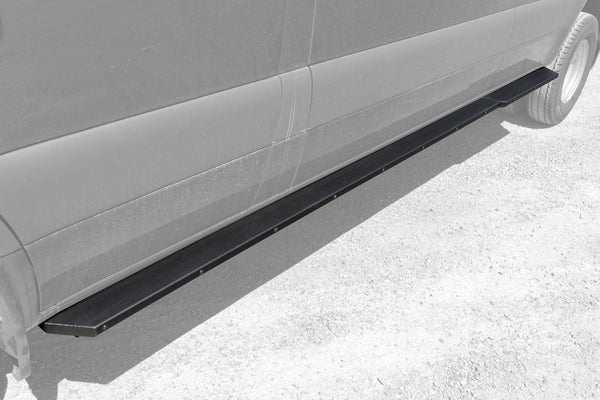

Rocker Guards 170 Inch Wheelbase Fits Both Lift Heights Sprinter 2500/3500XD (2023-Up) - Van Compass - 4109
$3,924.93
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
More than just a step! Add functional protection, chassis rigidity and ease of access to your 170 Inch wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards.
Our signature stealth design cues create an attractive 4 Inch wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1 Inch of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points.
Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.
The main step surfaces are constructed from 1/8 Inch steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16 Inch steel and are attached in three locations directly to the vehicle's chassis.
This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation.
Step Surface Width: 3.5-4 Inch (van body has slight taper at front door sill); 4.375 Inch at rear kick out with doors closed.
These ship in a very long crate, non-commercial address may be subject to additional delivery fees.
Details:
Color: Black
Material: Steel
Drilling Required: Yes
Attachment Type: Bolt On
Drive: AWD
Warranty: 60 Days-Finish Limited Lifetime-Structural
Features and Benefits:
More than just a step! Add functional protection, chassis rigidity and ease of access to your 170 Inch wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards
Step Surface Width: 3
Frame mounts are constructed from 3/16 Inch steel and are attached in three locations directly to the vehicle's chassis
375 Inch at rear kick out with doors closed
This robust design offers excellent body protection and adds easy to access vehicle lifting points
This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle
Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely
Our signature stealth design cues create an attractive 4 Inch wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1 Inch of width for additional protection on tight trails
5-4 Inch (van body has slight taper at front door sill); 4
The main step surfaces are constructed from 1/8 Inch steel and attach to the pinch seam with stainless steel hardware
Not Compatible with Winnebago Boldt, water tanks are in the way These ship in a very long crate, non-commercial address may be subject to additional delivery fees
Drilling of holes at the pinch seam and under body gussets are required for installation
Our signature stealth design cues create an attractive 4 Inch wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1 Inch of width for additional protection on tight trails. This robust design offers excellent body protection and adds easy to access vehicle lifting points.
Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.
The main step surfaces are constructed from 1/8 Inch steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16 Inch steel and are attached in three locations directly to the vehicle's chassis.
This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation.
Step Surface Width: 3.5-4 Inch (van body has slight taper at front door sill); 4.375 Inch at rear kick out with doors closed.
These ship in a very long crate, non-commercial address may be subject to additional delivery fees.
Details:
Color: Black
Material: Steel
Drilling Required: Yes
Attachment Type: Bolt On
Drive: AWD
Warranty: 60 Days-Finish Limited Lifetime-Structural
Features and Benefits:
More than just a step! Add functional protection, chassis rigidity and ease of access to your 170 Inch wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards
Step Surface Width: 3
Frame mounts are constructed from 3/16 Inch steel and are attached in three locations directly to the vehicle's chassis
375 Inch at rear kick out with doors closed
This robust design offers excellent body protection and adds easy to access vehicle lifting points
This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle
Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely
Our signature stealth design cues create an attractive 4 Inch wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1 Inch of width for additional protection on tight trails
5-4 Inch (van body has slight taper at front door sill); 4
The main step surfaces are constructed from 1/8 Inch steel and attach to the pinch seam with stainless steel hardware
Not Compatible with Winnebago Boldt, water tanks are in the way These ship in a very long crate, non-commercial address may be subject to additional delivery fees
Drilling of holes at the pinch seam and under body gussets are required for installation
