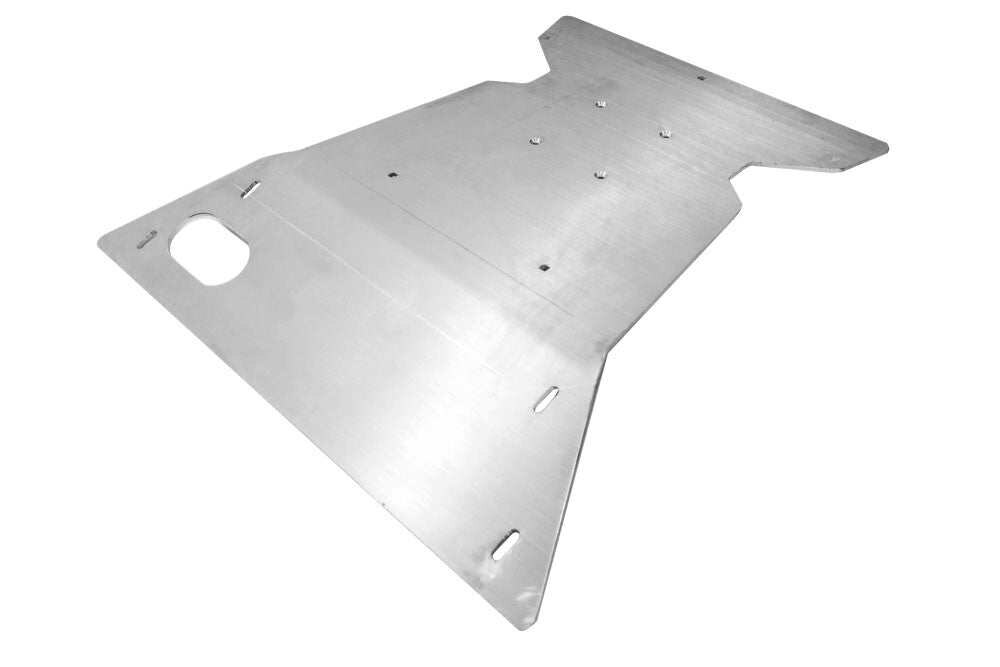

Engine Skid Plate Sprinter 4X4 Requires Vc 2 Inch Lift Sprinter 2500 (2015-2022) - Van Compass - 4029

Explore with confidence in your 4X4 Sprinter with the Van Compass Engine skid plate. Designed to create a strong, smooth surface to slide over or bash into.

The skid plate protects your vital drivetrain components when off-road situations get a little out of hand. Made of 1/4 Inch thick 6061-T6 Aluminum and 3/16 Inch high strength steel.

The skid system is 100 Percent bolt on with all the hardware provided. Engine oil changes can be performed without removal of skid system.

For additional protection add the transmission/transfer case skid plate and fuel tank skid plate!

Features and Benefits:


3/16 Inch Steel Front Bash Plate, Black Powder Coat finish for corrosion protection

Engine Skid Plate - 1/4 Inch 6061 T-6 Aluminum

All necessary hardware included

Total installed weight 55lbs

The 3500 kit includes additional mounts that are not installed on the 3500 chassis from the factory.


Associated Comments:


Note: Only fits vans equipped with Van Compass 2 Inch Lift Kit

Note: Sprinter 3500 also requires part number 4010-02


Details:


Lift Height: 2.0 Inch

Hardware Included: Yes

Recommended Shop Labor Time: 1 Hours

Color: Black

Finish: Powdercoat

Material: Steel

Drilling Required: No

Attachment Type: Bolt On

Configuration: Two Piece

Material Thickness: .25 Inch

Sheen Level: Matte

Drive: 4WD

Warranty: 60 Days-Finish Limited Lifetime-Structural


Van Compass Engine Skid Plate - Sprinter 4X4 Requires VC 2 Inch Lift
