Falcon 2.1 Monotube Rear Shocks Sprinter 2500 4x4 Heavy Tune Sprinter 2500 (2019-Up) - Van Compass - 3058

4X4 Sprinters are very capable and versatile vehicles, however many owners have now experienced the stiff factory ride over small bumps and extreme swaying on uneven ruts. Van Compass has developed a custom tuned Falcon rear shock kit to improve the Sprinter's handling both on and off the trail.

Our custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side-to-side sway over uneven surfaces is minimized.

Each set of Falcons shocks are specifically tuned per application. To provide the best ride quality possible, we need an actual weight of Your vehicle.

This is not the weight on the door sticker stating Gvwr. Your local dump or the Cat Scale Locator can be used to get an accurate weight of the vehicle.

With weights in hand, reference the chart below for shock tune recommendation.

Features and Benefits:


Heavy shock tune for vans weighing over 8900 lbs

Increase in comfort and vehicle control

Enhanced cornering stability

Reduced sway and wind buffeting

Controls large and small bumps more effectively than factory shocks

100 Percent bolt on with basic tools


Associated Comments:


Note: Not compatible with Sumo Spring Rebel series of springs, specifically Sumo Spring part numbers: SSR-327-47-2 and SSR-327-40-2 There is a Sumo Spring bracket associated with those kits which makes contact with the shock body.


Details:


Adjustable: No

Adjustable Compression: No

Adjustable Rebound: No

Boot Included: No

Gas Charged: Yes

Grade Type: Performance

Internal Construction Type: Monotube

Lower Mount Type: Eyelet

Hardware Included: No

Recommended Shop Labor Time: 1 Hours

Shaft Material: Chrome

Reservoir Style: Internal

Shock Absorber Body End Measuring Point: Center Of Eyelet

Shock Absorber Rod End Measuring Point: Center Of Eyelet

Upper Mount Type: Eyelet

Shock Tune: Heavy

Drive: 4WD|AWD

Warranty: 1 Year

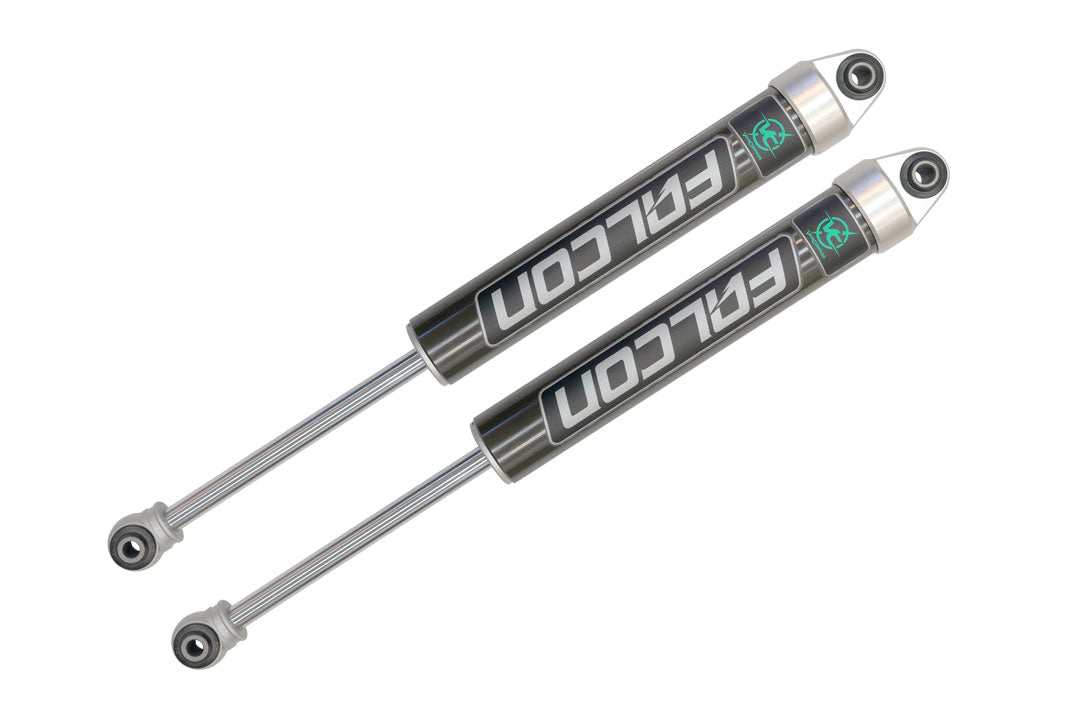

Van Compass Falcon 2.1 Monotube Rear Shocks - Sprinter 2500 4X4, Heavy Tune
