Out of Stock
Randy's Worldwide : Van CompassSKU: BSD-VAN-3055

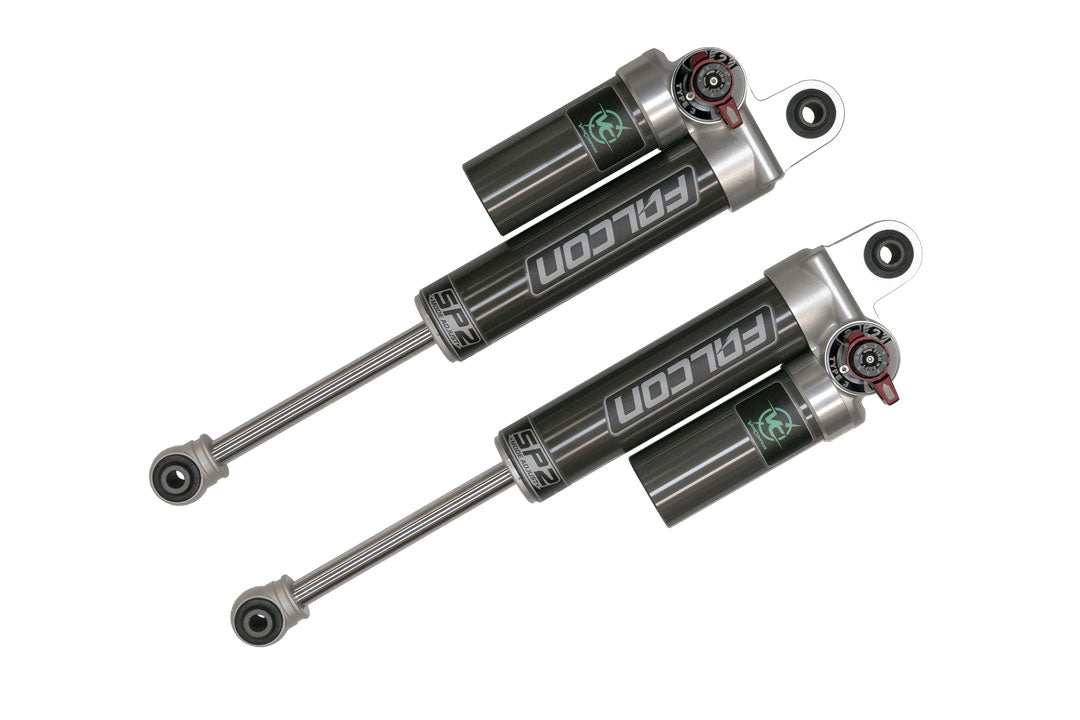

Falcon 3.3 Sp2 Fast Adjust Shocks Mid/Heavy Tune Rear Sprinter 2500 2WD (2007-Up) Pair - Van Compass - 3055
$1,564.48
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Tuned shock absorbers are one of the best bang for the buck upgrades for any vehicle. Proper damping can make or break the ride comfort and vehicle control, and low-quality factory units are quickly overwhelmed.
Falcon's shocks represent a pinnacle of intelligent design. Built to our specifications and tune, we've applied everything we've learned over the years of tuning custom and modified vehicles to bring increased levels of comfort, compliance, and control to adventure vans and RV's.
With a superior damper, we're able to effectively reduce sway from wind and obstacles, while simultaneously controlling large and small bumps more effectively.
The red 3.3 fast adjust knob combines industry leading adjustment range with intuitive and easy compression adjustment while the shock is installed. Position 1 is the lightest setting, great for blasting down washboard roads or rough city streets.
Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for daily driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control.
The SP2 mode adjust feature is an internal bypass port (free bleed circuit) set during installation. Closing off this port drastically changes the shock rebound and compression characteristics and essentially allows us to put 2 tune profiles into one shock.
This setting is chosen when installing the shocks based on vehicle weight and ride preference. The shocks are manufactured as left and right pairs.
The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.
Features and Benefits:
10 compression damping settings with the 3.3 fast adjust knob
Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
Mid/Heavy shock tune for vans weighing over 8500 lbs
Increase in comfort and vehicle control
Enhanced cornering stability
Reduced sway and wind buffeting
Controls large and small bumps more effectively than factory shocks
100 Percent bolt on with basic tools
2.3 Inch aluminum body dissipates heat and resists corrosion.
Full 2 Inch Damper piston (238 Percent increase over stock)
3/4 Inch diameter hard chromed shaft resists impact and corrosion.
High pressure nitrogen charge ensures cavitation free operation
Details:
Adjustable: Yes
Adjustable Compression: Yes
Adjustable Rebound: No
Boot Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Monotube
Lower Mount Type: Eyelet
Hardware Included: No
Recommended Shop Labor Time: 1 Hours
Shaft Material: Chrome
Bore Diameter: 2 Inch
Reservoir Style: Piggyback
Shaft Diameter: .75 Inch
Shock Absorber Body End Measuring Point: Center Of Eyelet
Shock Absorber Rod End Measuring Point: Center Of Eyelet
Tube Outside Diameter: 2.3 Inch
Upper Mount Type: Eyelet
Shock Tune: Mid/Heavy
Drive: RWD
Warranty: 1 Year
