Rear Mini Spring Pack 6 Leaf 2 Inch Lift W/ Striker Lift Kit Sprinter 2500 4WD/AWD (2015-Up) - Van Compass - 3016-046

As a vehicle approaches its Gvwr (Gross Vehicle Weight Rating) the rear suspension will naturally begin to sag and ride quality will begin to suffer. The Sprinter van is no different.

Our 3-leaf Sprinter 4X4 mini leaf spring pack installs under the factory leaf springs and can increase ride height from 1 Inch to 1.5 Inch (25MM to 33MM) depending on the vehicle's weight distribution. The increase in spring rate gained by this leaf pack along with the additional clearance between the bump stop and axle will reduce the chances of bottoming out enhance vehicle stability, ride comfort and restore the factory look of the van.

This product is designed to improve ride and handling while at or near Gvwr, however we do not recommend exceeding the manufacturer's Gvwr.

Our mini spring pack can be installed one of 2 ways: 3-leaf Sag Correction or the 6-leaf for 2 Inch of total lift. Our 6-leaf pack is perfect way to eliminate the lift block and add spring rate at the same time to one of our rear lift kits.

The Striker or Scout rear lift kit is required for proper suspension geometry and cycling range in the 2 Inch lift configuration.

Associated Comments:


Note: Not compatible with Oe 'Monoleaf' rear suspension. CAN only be installed on 2-leaf springs.

Note: Requires installation of Van Compass Striker Lift Kit


Details:


Lift Height: 2.0 Inch

Grade Type: Performance

Hardware Included: Yes

Recommended Shop Labor Time: 3 Hours

Maximum Lift: 1.5 Inch

Color: Black

Material: Steel

Leaf Spring Leaf Quantity: 6

Minimum Lift: 1 Inch

Drive: 4WD|AWD

Warranty: 60 Days-Finish Limited Lifetime-Structural

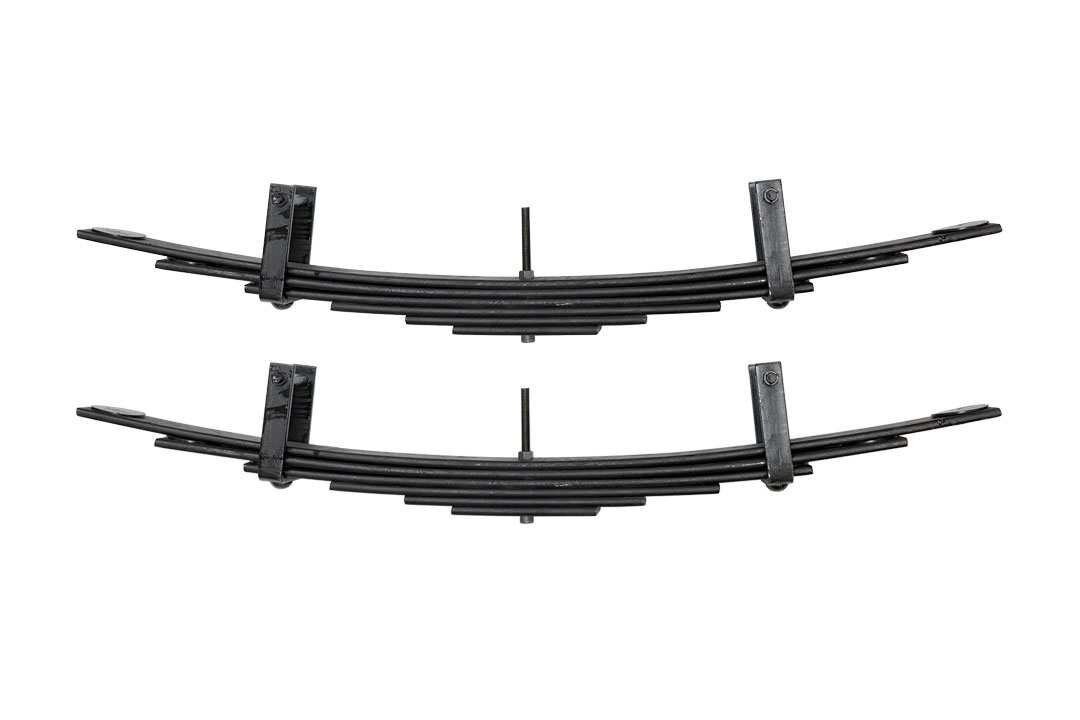

Van Compass Rear Mini Spring Pack, 6 Leaf - Sprinter 2500 4X4, 2 In Lift W/ Striker Lift Kit
