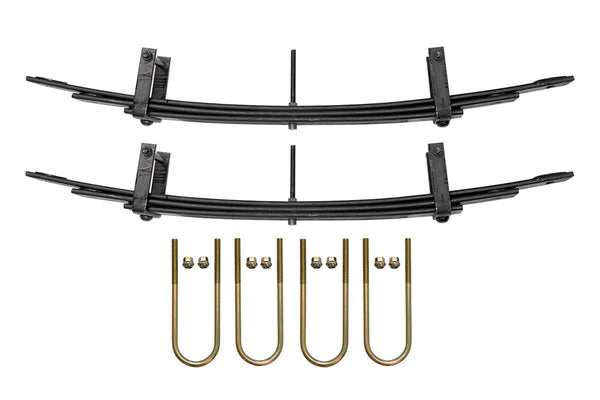

Rear Mini Spring Pack 3 Leaf 1.25 Inch Lift Sag Correction Sprinter 2500 4WD/AWD (2015-Up) - Van Compass - 3016-043

As a vehicle approaches its Gvwr (Gross Vehicle Weight Rating) the rear suspension will naturally begin to sag and ride quality will begin to suffer. The Sprinter van is no different.

Our 3-leaf Sprinter 4X4 mini leaf spring pack installs under the factory leaf springs and can increase ride height from 1 Inch to 1.5 Inch (25MM to 33MM) depending on the vehicle's weight distribution. The increase in spring rate gained by this leaf pack along with the additional clearance between the bump stop and axle will reduce the chances of bottoming out enhance vehicle stability, ride comfort and restore the factory look of the van.

This product is designed to improve ride and handling while at or near Gvwr, however we do not recommend exceeding the manufacturer's Gvwr.

Our mini spring pack can be installed one of 2 ways: 3-leaf Sag Correction or the 6-leaf for 2 Inch of total lift. In the 3-leaf configuration, the factory suspension geometry is still preserved and functions well to restore lost ride height on heavy vans.

Features and Benefits:


Our 3-leaf Sprinter 4X4 mini leaf spring pack installs under the factory leaf springs and CAN increase ride height from 1 Inch to 1

The increase in spring rate gained by this leaf pack along with the additional clearance between the bumpstop and axle will reduce the chances of bottoming out enhance vehicle stability, ride comfort and restore the factory look of the van

As a vehicle approaches its GVWR (Gross Vehicle Weight Rating), the rear suspension will naturally begin to sag and ride quality will begin to suffer

5 Inch (25MM to 33MM) depending on the vehicle's weight distribution

The Sprinter van is no different

Compatible on 4WD vans that have a factory 2-leaf spring pack

Not compatible with the factory 'mono leaf' or the 3500 spring pack with a third 'overload' spring

This product is designed to improve ride and handling while at or near GVWR, however we do not recommend exceeding the manufacturer's GVWR


Associated Comments:


Note: Not compatible with Oe 'Monoleaf' rear suspension. CAN only be installed on 2-leaf springs.


Details:


Lift Height: 1.25 Inch

Grade Type: Performance

Hardware Included: Yes

Recommended Shop Labor Time: 3 Hours

Maximum Lift: 1.5 Inch

Color: Black

Material: Steel

Leaf Spring Leaf Quantity: 3

Minimum Lift: 1 Inch

Drive: 4WD|AWD

Warranty: 60 Days-Finish Limited Lifetime-Structural


Van Compass Rear Mini Spring Pack, 3 Leaf - Sprinter 2500 4X4, 1.25 Inch Lift Sag Correction
