Randy's Worldwide : Van CompassSKU: BSD-VAN-1046
Front 2 Inch Lift Spindle Ford Transit (2015-Up RWD Single Wheel Only) - Van Compass - 1046
$2,414.18
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

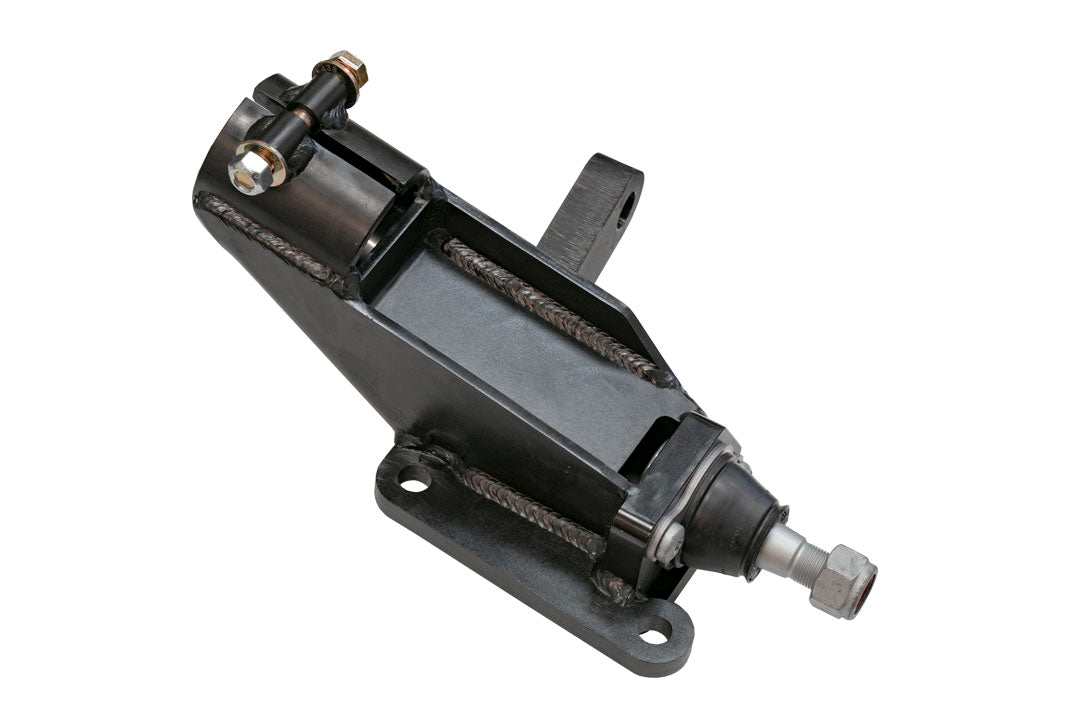

Get the most clearance possible from your Transit RWD with our Front 2 Inch Lift Spindle!
Lift spindles are a long-time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van.
Track width is increased modestly (1/2 Inch per side, 1 Inch total) for increased stability and a better scrub radius with larger tires.
When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications.
Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service.
A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.
Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2 Inch front lift kit, for 4 Inch of total lift in the front. A 4 Inch lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
Features and Benefits:
Track width is increased modestly (1/2 Inch per side, 1 Inch total) for increased stability and a better scrub radius with larger tires
Precision cut and machined parts key together to ensure solid construction
Trimming of the pinch seam is required
A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance
The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van
Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service
Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications
When properly engineered, there are no down sides
\We recommend a 17 Inch x 8 Inch wheel with 45MM offset
A 4 Inch lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on
Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2 Inch front lift kit, for 4 Inch of total lift in the front
Associated Comments:
Note: We recommend a 17 Inch x 8 Inch wheel with 45MM offset. Trimming of the pinch seam is required.
Details:
Lift Height: 2.0 Inch
Grade Type: Performance
Hardware Included: Yes
Recommended Shop Labor Time: 5 Hours
Color: Black
Material: Steel
Construction: Fabricated
Instruction Manual Included: Yes
Drive: RWD
Warranty: 60 Days-Finish Limited Lifetime-Structural
Van Compass Lift Spindle, 2 Inch Lift, Transit RWD
