Inverted Rally Strut Monotube Sprinter 2WD Sprinter 2500/3500/3500XD (2010-Up) - Van Compass - 1008

Our all new, inverted damper strut is designed exactly to our fitment and tuning specifications and produced from aerospace grade materials. The pinnacle of suspension performance is elevated to a new apex with our inverted front struts.

Features and Benefits:


Rate Cup mounting bushing preload washer

Molded rubber dust boot

Damper shaft and seal surfaces are protected inside lower housing

Greater clamping force for alignment specs

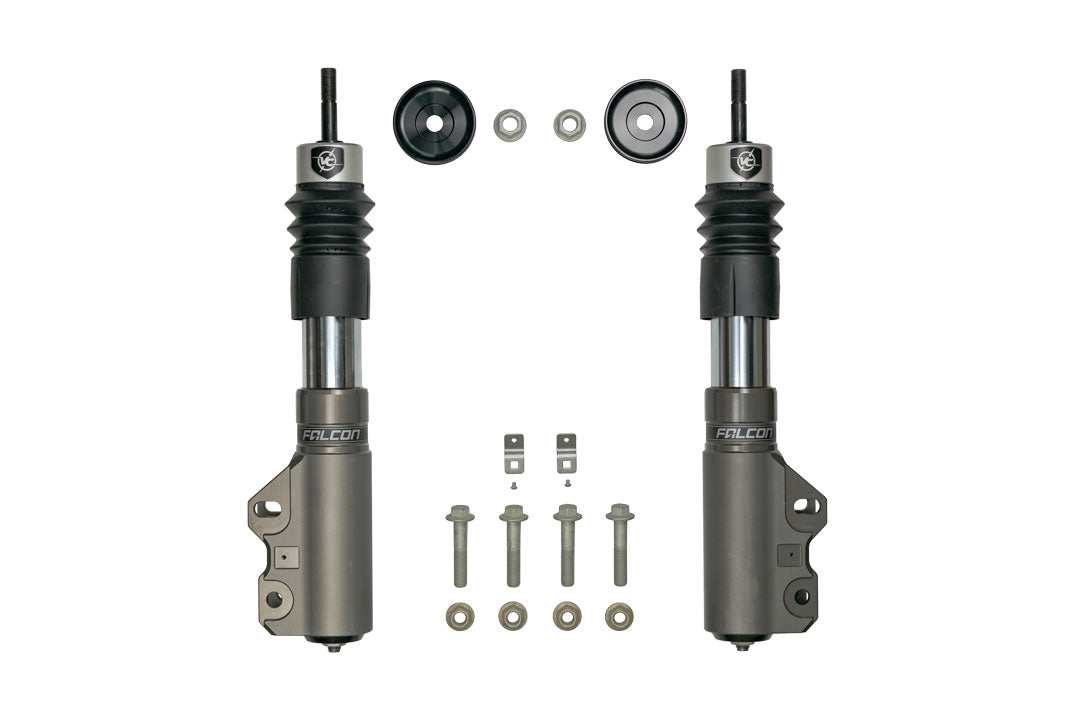

Inverted Rally Strut Pair, 2.1 Monotube

All necessary hardware and instructions for a simple installation

Much larger damping piston vs OEM

Significantly increased load bearing surface area for long service life


Details:


Adjustable: No

Adjustable Compression: No

Adjustable Damping: No

Adjustable Rebound: No

Adjustable Ride Height: No

Body Color: Gray

Body Diameter: 2.3 Inch

Boot Included: Yes

Coil Spring Included: No

Coil Spring Insulator(s) Included: No

Cylinder Color: Gray

Cylinder Material: Steel

Gas Charged: Yes

Grade Type: Performance

Includes Bump Stop: No

Internal Construction Type: Single Tube

Internal Rebound Bumper: No

Internal Rebound Spring: No

Lower Mount Type: Bracket

Hardware Included: Yes

Recommended Shop Labor Time: 2.5

Remote Reservoir: No

Self-Leveling: No

Shaft Material: Chrome

Strut Mount Insulator(s) Included: No

Strut Mount(s) Included: No

Drive: RWD

Warranty: 1 Year


Inverted Rally Strut, Monotube - Sprinter 2WD
