Ford 6.7L Power Stroke CP4 To DCR Pump Conversion (2011-2024) S&S Diesel - SS Diesel Motorsport - 6.7F-DCR-1

Upgrade your 2011-2025 Ford 6.7L Powerstroke with the S&S Diesel CP4 to DCR Pump Conversion Kit! This solution eliminates the risky CP4 injection pump in favor of the more reliable CP3/DCR style system-moving return flow away from injectors and greatly improving fuel system longevity under high demand.

Simply replacing your factory CP4 with the S&S Diesel CP4 to DCR Pump Conversion Kit can save you in repair costs.


Eliminates CP4 Pump Failure Risk - Switches to DCR/CP3-style system to avoid debris and low-pressure return issues inherent in CP4 systems.

Cleaner Return Routing - Returns shifted away from injector outlets, reducing heat soak and contamination buildup.

Better High-Demand Performance - Designed for trucks with high horsepower or tuning demands, ensuring stable fuel delivery.

All OEM-Interface Connections - Uses factory-style connectors and fittings wherever possible for clean integration and compatibility.

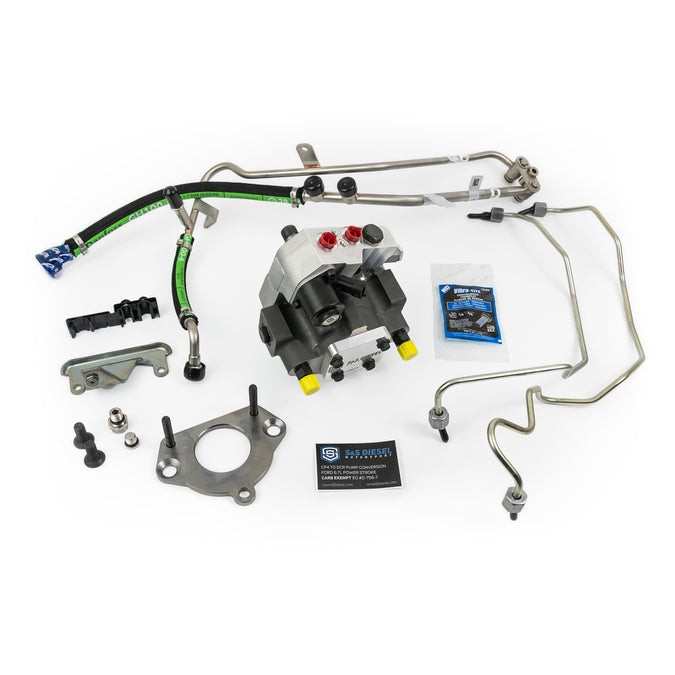

Kit Components & Specs


Conversion hardware (mounting plates, brackets, fittings)

High-pressure pump (DCR/CP3 variant)

Fuel return routing components (lines/fittings)

Adapters and fittings for injector rails

Installation instructions and torque specs


Fitment & Considerations


More durable plug-and-play replacement for the CP4

Does not require any ECU calibration

OE fit and function

Two-piston DCR pump co-developed by S&S/PurePower

Biofuel and low-lubricity fuel compatible

Patented Eccentric Drive pumping technology

Pressure-lubricated cam and bushings

Corrosion-resistant FCA

1,250 mm3/revolution displacement (CP4.2 + 25%)

Fits 2011 to 2025 Ford F250-F750 diesel trucks

CARB Compliant (EO# D-756-7)

SEMA Certified Emissions Compliant (SC-SDM01-0034)

Two-year, unlimited-mile warranty

2011 вЂ-œ 2016 models require new vacuum pump gasket (6.7F-VAC-GASKET)


Details:


Engine Manufacturer: Power Stroke

Liter: 6.7

Cylinders: 8

BlockType: V

Fuel Type: Diesel

CC: 6651

CID: 406

Engine Bore Inches: 3.9

Engine Bore Metric: 99.1

Engine Stroke Inches: 4.25

Engine Stroke Metric: 107.9

Engine Years: 2011-2024

Sold As: Each
