Out of Stock
ReadyLiftSKU: BSD-RLS-69-5112

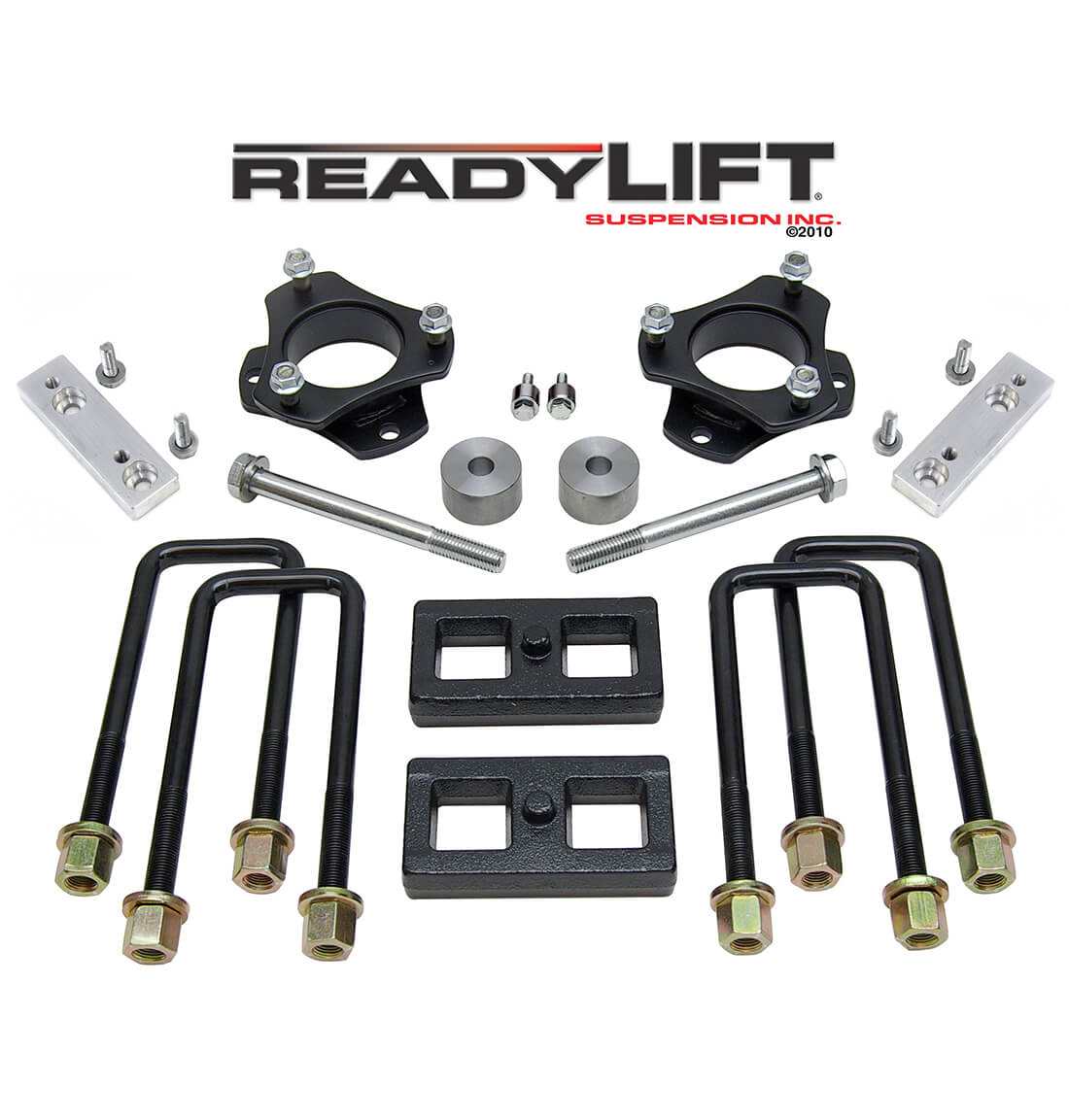

3 Inch F / 1 Inch R SST Lift Kit 2012-2023 Toyota Tacoma TRD / SR5 / Rock Warrior - ReadyLIFT - 69-5112
$519.94
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
ReadyLIFT's SST Lift Kits offer an economical, safe way to adjust vehicle ride height, allowing for larger tire upgrades. Their SST Suspension Lift System, specifically for 2005-2022 Six-Lug Toyota Tacoma TRD / SR5 / Rock Warrior / Prerunner trucks (P/N 69-5112), raises the truck by 2.75 Inch-3.0 Inch.
This kit includes a 1.0-Inch tapered rear lift block and fits all 2005-2023 Tacoma and Prerunner models, both 2WD and 4WD. It enables the use of up to 33-Inch tire diameters while maintaining the stock ride and handling, although 32.5-Inch tires are recommended.
Minor trimming of the inner fender well is necessary for fitting 33-Inch tires, and the kit includes sway bar drop brackets. For 2016-2022 models, a deceleration vibration issue is noted, and trucks with the Crawl Feature transfer case should avoid using differential drop spacers.
The lift amount varies between 2.75-Inch and 3.0-Inch due to differences individual trucks. TRD-equipped trucks usually have less front-to-rear rake.
Some older Tacomas with factory 2 leaf plus overload rear spring packs, prone to sagging, are being updated by Toyota to a 3+1 pack. This kit, with its 1.0-Inch rear lift block, compensates for this, aiming for a 0.5-Inch rear to front rake.
Additionally, post-2010 Tacomas with leveling kits may require aftermarket Upper Control Arms with adjustable caster/camber to correct alignment issues.
Features and Benefits:
3 inch lift for front and 1 inch lift for rear
Maximum tire diameter of 32.5 inches
Compatible with 2005-2023 2WD and 4WD models
Designed for TRD, SR5, and Rock Warrior trims
Includes sway bar drop brackets for improved stability
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 3.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 3 Inch
Max Tire Size: 33 Inch
Rear Lift Component: Block and U-bolt
Rear Lift Height: 1.0 Inch
Shocks Included: No
This kit includes a 1.0-Inch tapered rear lift block and fits all 2005-2023 Tacoma and Prerunner models, both 2WD and 4WD. It enables the use of up to 33-Inch tire diameters while maintaining the stock ride and handling, although 32.5-Inch tires are recommended.
Minor trimming of the inner fender well is necessary for fitting 33-Inch tires, and the kit includes sway bar drop brackets. For 2016-2022 models, a deceleration vibration issue is noted, and trucks with the Crawl Feature transfer case should avoid using differential drop spacers.
The lift amount varies between 2.75-Inch and 3.0-Inch due to differences individual trucks. TRD-equipped trucks usually have less front-to-rear rake.
Some older Tacomas with factory 2 leaf plus overload rear spring packs, prone to sagging, are being updated by Toyota to a 3+1 pack. This kit, with its 1.0-Inch rear lift block, compensates for this, aiming for a 0.5-Inch rear to front rake.
Additionally, post-2010 Tacomas with leveling kits may require aftermarket Upper Control Arms with adjustable caster/camber to correct alignment issues.
Features and Benefits:
3 inch lift for front and 1 inch lift for rear
Maximum tire diameter of 32.5 inches
Compatible with 2005-2023 2WD and 4WD models
Designed for TRD, SR5, and Rock Warrior trims
Includes sway bar drop brackets for improved stability
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 3.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Lift Height: 3 Inch
Max Tire Size: 33 Inch
Rear Lift Component: Block and U-bolt
Rear Lift Height: 1.0 Inch
Shocks Included: No
