Out of Stock
ReadyLiftSKU: BSD-RLS-69-3920
2.0 Inch SST Lift Kit 2019-2024 Silverado/Sierra 1500 AT4/Trail Boss 4WD - ReadyLIFT - 69-3920
$909.94
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Last fall we announced our new leveling and SST lift kit offerings for the all-new GM 1500 trucks. We specifically did not include the factory lift kit-equipped GMC at4 and Chevy Silverado Trail Boss.
The AT4/Trail Boss are factory equipped with a 2-Inch front lift. This front lift includes a longer front shock/strut assembly.
When combining a traditional leveling kit on these factory lifted trucks, several issues present themselves including binding problems with the factory control arm ball joint and contact concerns with the lower strut/CV axle assembly. The 69-3920 SST Lift Kit works with the factory 2-Inch front lift.

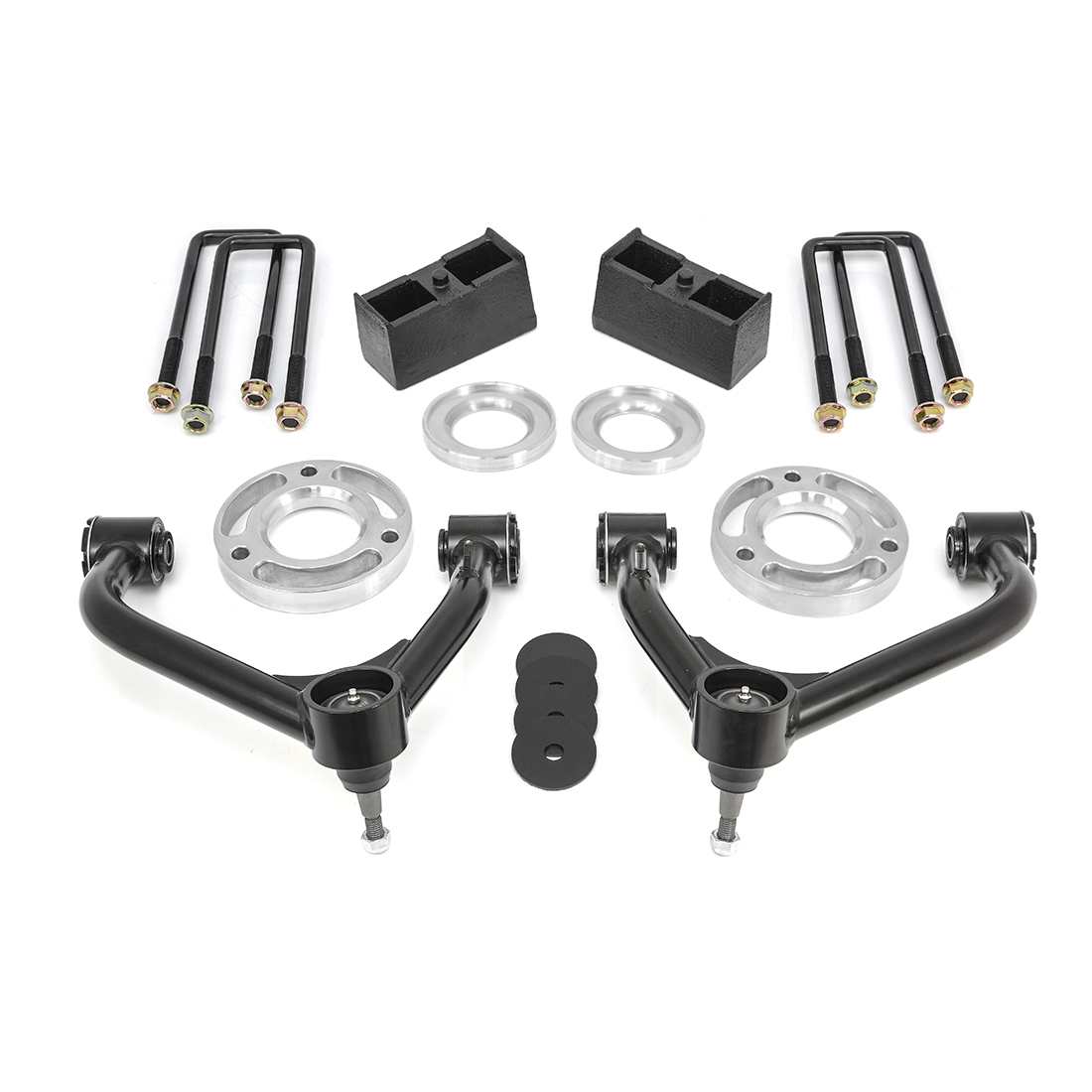

This kit includes a top mount strut spacer along with a pre-load spacer to limit droop and the same premium grade upper control arms now available in our 66-3921 leveling kit. OE style 3-Inch tall cast iron rear lift blocks and rear bump stop extension cups are also included to create a true AT4/Trail Boss-specific bolt-on lift kit that provides 2-Inch of front lift and 1-Inch of rear lift.
This new lift kit concept is similar to our successful TRD Pro Plus 2 SST Lift Kit which is also engineered specifically to work with that factory OE suspension lift. Your trust in ReadyLIFT to provide high-quality, precision engineered products is extremely important to us.
You can be assured that this all-new SST lift kits are the absolutely most reliable and best performing suspension upgrade option for the AT4/Trail Boss trucks. AT4 - Max tire 305/55-20, 20x9 0 offset wheel Trail Boss - Max tire 295/65-20, 20x9 0 offset wheel Note: Use of Auto 4 HI feature not recommended..
Note: This GM 1500 kit is Not compatible with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring.
This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts. Note: Not compatible with Sierra AT4X or Silverado ZR2 Edition.
Features and Benefits:
2-Inch SST Lift Kit for 2019-2023 GM at4 and Trail Boss models
Not compatible with Sierra AT4X or Silverado ZR2 Edition
Front lift combines with factory 2-Inch lift
CNCmachined billet Aluminum top spacer and preload spacer kit
Heavy-duty control arms with 1-ton ball joints
Maintenance-free pivot bushings
Includes 3-Inch tall OE style cast iron rear lift blocks
Comes with new U-bolts
Max tire size for AT4: 305/5520 on 20x9 0 offset wheel
Max tire size for Trail Boss: 295/6520 on 20x
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 2.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Max Tire Size: 305
Rear Lift Component: Block and U-bolt
Rear Lift Height: 1.0 Inch
Shocks Included: No
The AT4/Trail Boss are factory equipped with a 2-Inch front lift. This front lift includes a longer front shock/strut assembly.
When combining a traditional leveling kit on these factory lifted trucks, several issues present themselves including binding problems with the factory control arm ball joint and contact concerns with the lower strut/CV axle assembly. The 69-3920 SST Lift Kit works with the factory 2-Inch front lift.
This kit includes a top mount strut spacer along with a pre-load spacer to limit droop and the same premium grade upper control arms now available in our 66-3921 leveling kit. OE style 3-Inch tall cast iron rear lift blocks and rear bump stop extension cups are also included to create a true AT4/Trail Boss-specific bolt-on lift kit that provides 2-Inch of front lift and 1-Inch of rear lift.
This new lift kit concept is similar to our successful TRD Pro Plus 2 SST Lift Kit which is also engineered specifically to work with that factory OE suspension lift. Your trust in ReadyLIFT to provide high-quality, precision engineered products is extremely important to us.
You can be assured that this all-new SST lift kits are the absolutely most reliable and best performing suspension upgrade option for the AT4/Trail Boss trucks. AT4 - Max tire 305/55-20, 20x9 0 offset wheel Trail Boss - Max tire 295/65-20, 20x9 0 offset wheel Note: Use of Auto 4 HI feature not recommended..
Note: This GM 1500 kit is Not compatible with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring.
This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts. Note: Not compatible with Sierra AT4X or Silverado ZR2 Edition.
Features and Benefits:
2-Inch SST Lift Kit for 2019-2023 GM at4 and Trail Boss models
Not compatible with Sierra AT4X or Silverado ZR2 Edition
Front lift combines with factory 2-Inch lift
CNCmachined billet Aluminum top spacer and preload spacer kit
Heavy-duty control arms with 1-ton ball joints
Maintenance-free pivot bushings
Includes 3-Inch tall OE style cast iron rear lift blocks
Comes with new U-bolts
Max tire size for AT4: 305/5520 on 20x9 0 offset wheel
Max tire size for Trail Boss: 295/6520 on 20x
Details:
Fitment: Direct Fitment
Front Lift Component: Spacer
Front Lift Height: 2.0 Inch
Front or Rear: Front and Rear
Install Difficulty: Difficult Requires Professional Installation
Installation Time: 5+ Hours
Max Tire Size: 305
Rear Lift Component: Block and U-bolt
Rear Lift Height: 1.0 Inch
Shocks Included: No
